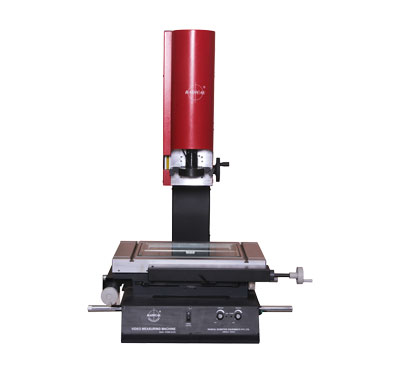

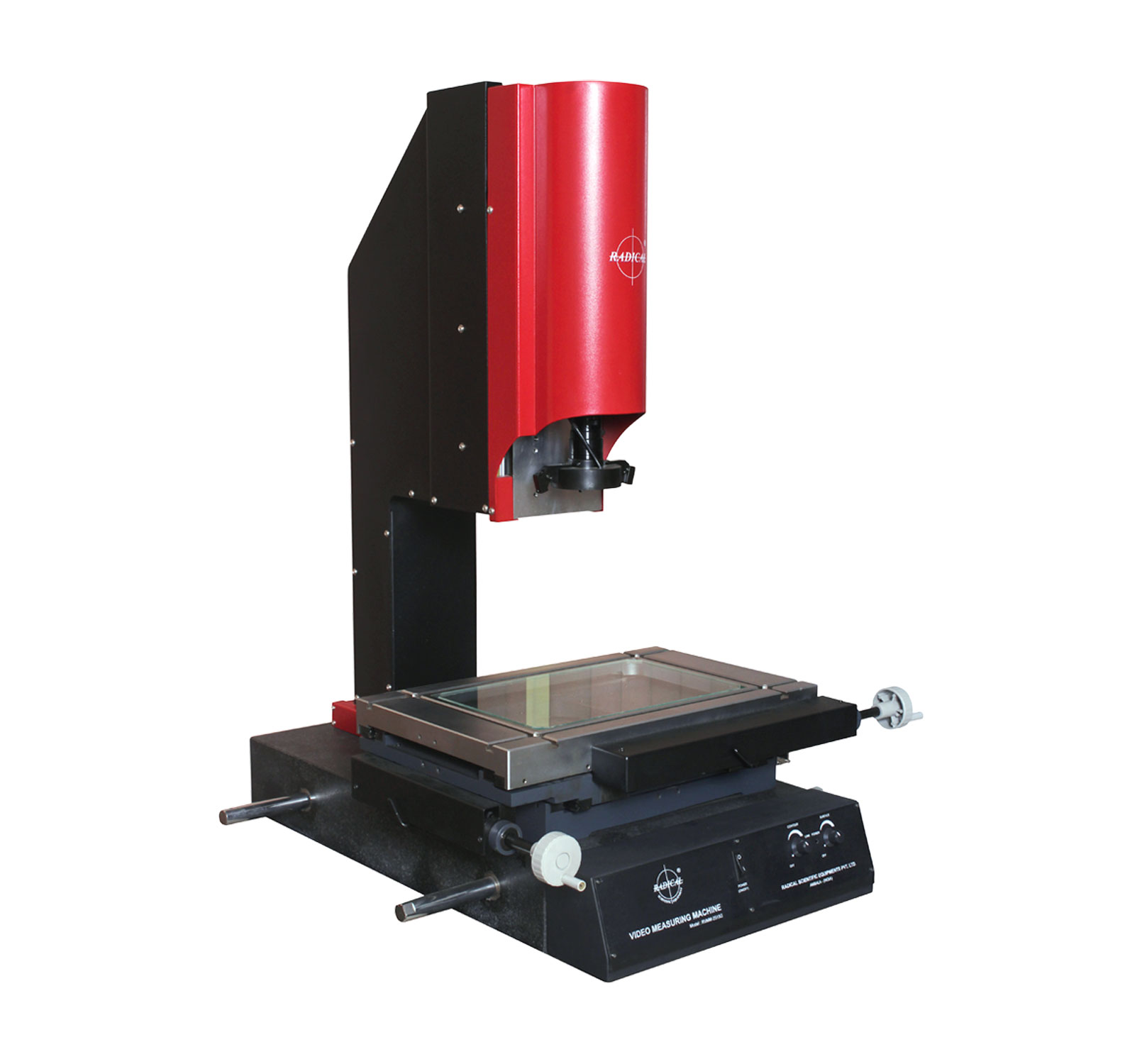

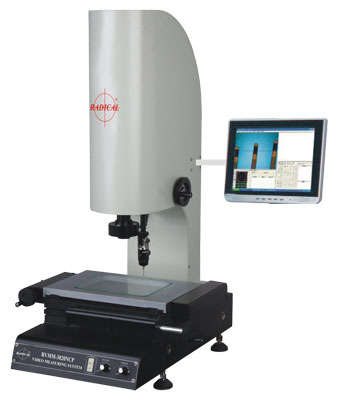

Video Measuring Machine
Basic
Radical VMM is a general purpose manual video based measuring machine ideal for quality control and inspection labs as well as manufacturing, assembly and research facilities. Providing customers with precise, cost effective equipments and good service is our business philosophy.
VMM with precision mechanical bearing X-Y-Z stage and Cast iron column on granite base translates to accuracy and repeatability
• High-power Non-contact Optical Measuring Instrument with Large Working Travel
• Mainly applicable for the measurement of large PCB, LCD and other big Parts.
• Stable Granite Base
• V-shape Guide
• Precised Metal and Glass Worktable
• Adjustable USB 4-division Ring LED illumination
• Advanced Navitar 0.7~4.5X Zoom Lens
• Sony ½” Colour CCD Camera
• Powerful Measuring Software
• Function of Data Processing,Displaying,Input,Output,
• With RS-232 Interface
• Mainly applicable for the measurement of large PCB, LCD and other big Parts.
• Stable Granite Base
• V-shape Guide
• Precised Metal and Glass Worktable
• Adjustable USB 4-division Ring LED illumination
• Advanced Navitar 0.7~4.5X Zoom Lens
• Sony ½” Colour CCD Camera
• Powerful Measuring Software
• Function of Data Processing,Displaying,Input,Output,
• With RS-232 Interface
| SPECIFICATION | BASIC-2515 |
|---|---|
| Metal Table Size | 450x280mm |
| X&Y axis travel | 250x150mm |
| Glass Table Size | 350x220mm. |
| Z axis travel | 200mm |
| Resolution | 0.001mm. |
| X&Y axis accuracy | <(2.5+L /100mm)µm |
| Measuring Software | QM 2.0 |
| Video System | 1/3" color CCD SONY/ NAVITAR |
| Zoom lens magnification 0.7x-4.5x | |
| Magnification 26.6x-171x | |
| Field of view 8.1mm-1.3mm | |
| Illumination System | Surface LED light & transmitted LED |
| Net Weight | 100kg. |
| Dimension (mm) | 700x600x900 |
