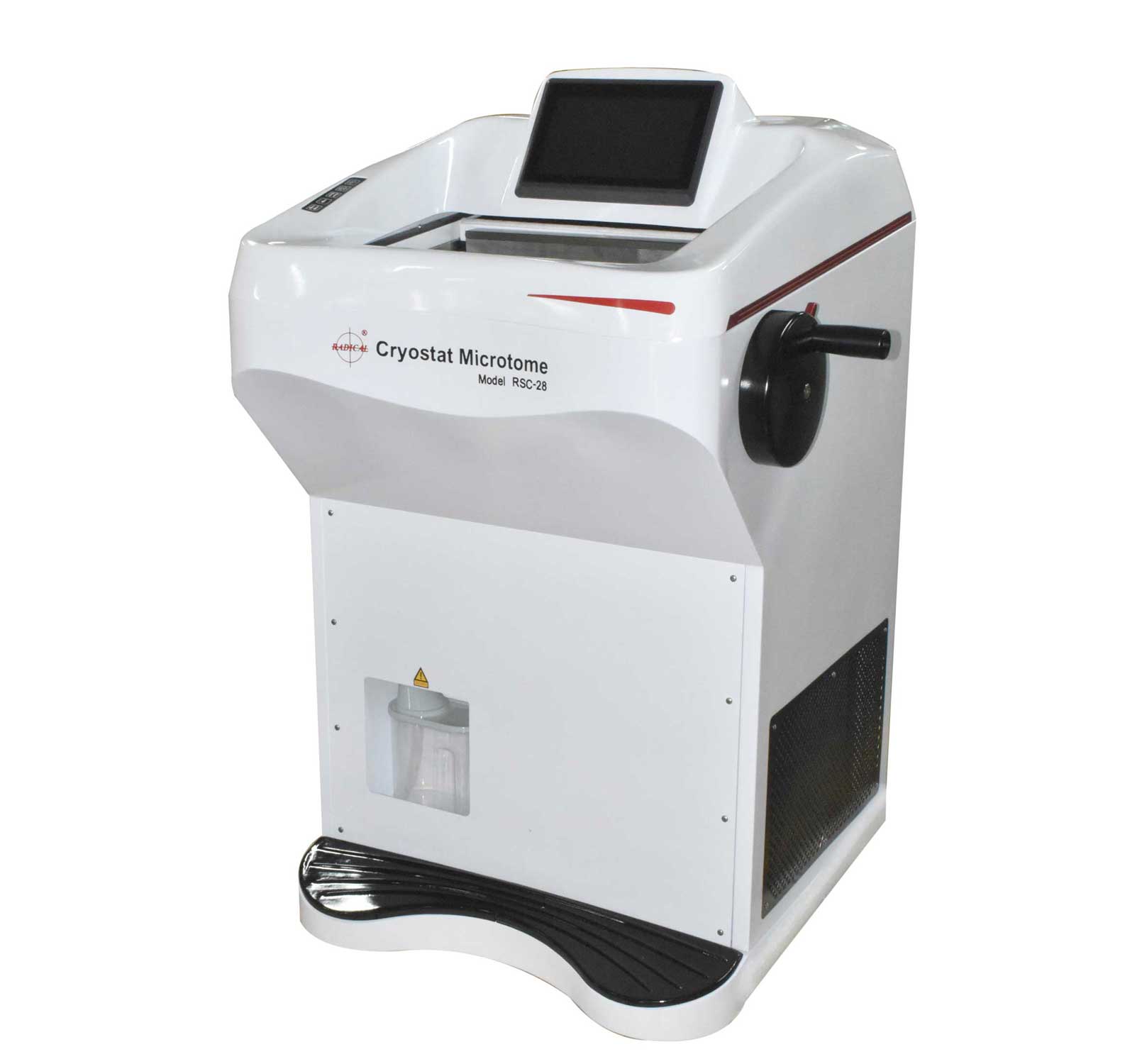

It is designed under overall engineering and ergonomic concept. All the components are processed with computer numerical controlled machine.
Specimen retraction function, protects specimen from blade injury.
This system comes with an anti-roll slide guide apparatus to aid in cutting frozen sections that do not curl.
Trimming/Cutting button makes it easy to switch from trim and section mode.
Equip with counter to calculate total pieces and thickness.
Dual compressors, which are made in Germany, freeze and cryostat chamber, freezing shelf, knife holder and specimen clamp separate with pro-environment refrigerant R404.
Temperature can drop to working condition in 60 minutes after switching on.
Adopt to UVC sterilize for 35 minutes every time.
Peltier may be on or off manually.
Heated, removable sliding window.
Two defrost methods: definite time and manual, automatic defrost system built in with cool air circulation that automatically start to cool air circulating around the cutting specimen, knife and anti-roll guide.
The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal expansion and contraction and keep minimum service and maintenance.
With vacuum cleaner easy to clean the chamber.
Self-explanatory symbols for all functions and displays, easy to learn and operate.
LED screen can display data such as sample travel, thickness, function controlling, day, time, temperature, timed on/off and so on.
Standby mode, after initializing the temperature in cryostat chamber can be controlled between -4°C and -9°C by computer automatically; when stop initializing the temperature in freeze chamber will arrive to working temperature within 10 minutes.
Control panel with locking function to avoid wrong operation.
Glass anti-roll guide with anti-static feature to facilitate perfect stretching of sections should be available integrated vacuum system for stretching of sections and suction of debris.
Hand wheel locking.
Sensor self-diagnosis function.
Wide freezing shelf may put 17 specimen cassettes.
Freeze chamber temperature range: -10°C ~ -40°C
Cooling down time to -40°C: 60min.
Freeze shelf minimum temperature: -45°C
Lowest temperature of Peltier unit on freeze shelf: -60°C
Peltier working time: 15 minutes.
Maximum specimen size: 45mm×45mm
Specimen vertical stroke: 60mm
Specimen horizontal stroke: 20mm
Coarse feeding speed: 0.7mm/s; 0.35mm/s
X/Y-axis: 12°, Z-axis: 360° the specimen holder has 360° specimen orientation.
Standard Accessories
1. Power Wire -1 Pcs.
2. Fuse - 2Pcs.
Section Thickness Range :1-100µm
- • 1µm ~ 100µm adjustable; 1µm ~ 20µm, in 1 µm increment.
- • 20µm ~ 40µm in 2 µm increments; 40µm ~ 100µm, in 5µm increments.
Trimming Thickness Range :10µm-400µm adjustable
- • 10µm ~ 50µm in 5µm increments.
- • 50µm ~ 100µm in 10µm increments; 100µm ~ 400µm in 50µm increments.
- • Retraction range: 0µm ~ 80µm adjustable, in 5µm increment.
- • Voltage and frequency: AC220V+10% 50Hz (Standard) Special requirement may customize by order.
- • Power: 435V
- • Weight: 130Kg
- • Dimensions (W×D×H): 600×640×1130mm
