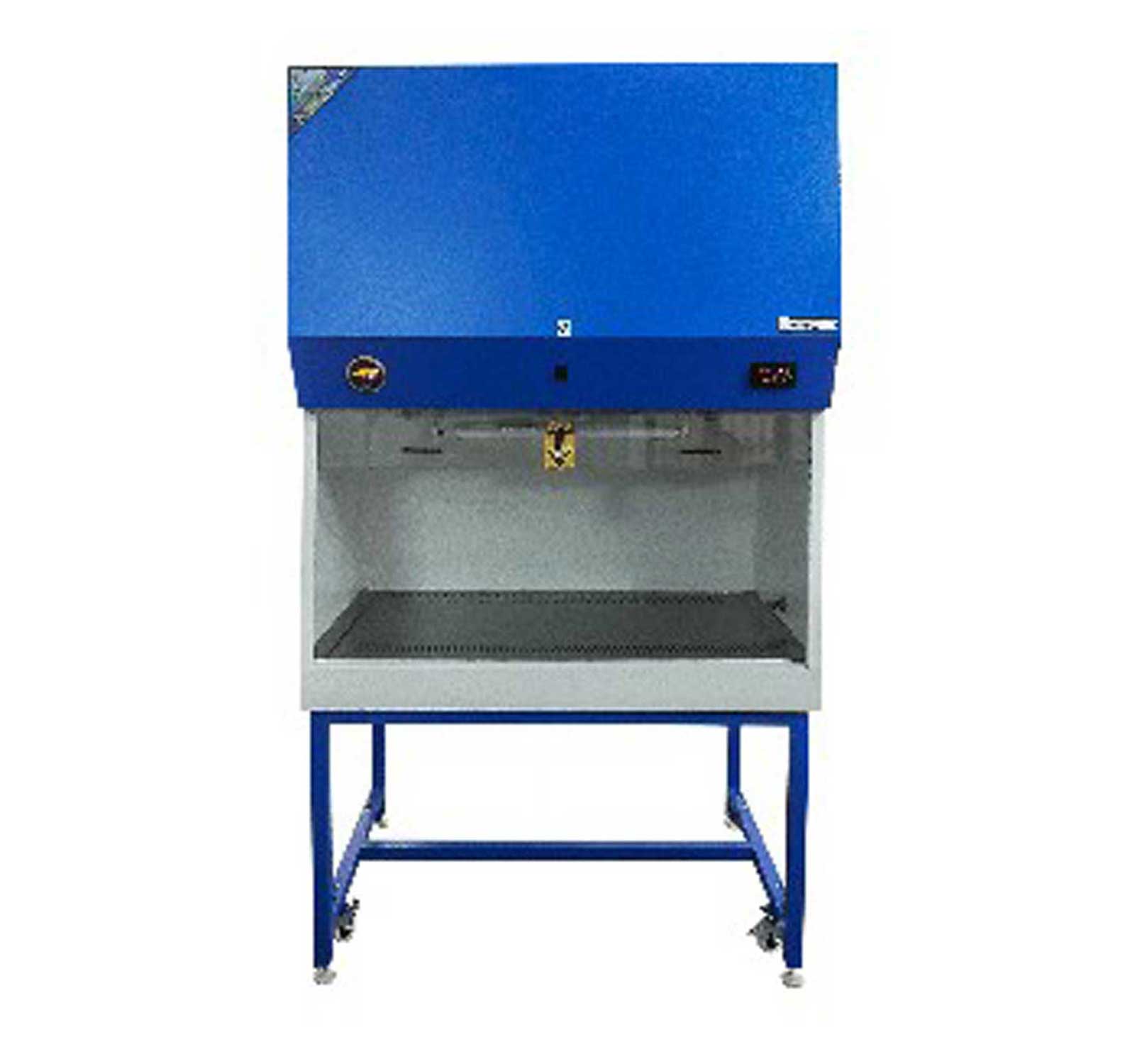

Laminar Air Flow IVF(In Vitro Fertilization) Workstation
RSIV-57-10
The Radical IVF workstation is especially designed for use in fertility laboratories for research work in the field of human and animal reproduction.
A controlled work environment is of high priority due to the complexity of the process.
This includes hygienic conditions to minimize microbial contamination; a warm work surface for the sustenance of biological matter and provisions for the use of microscopes in the Radical IVF workstations.
Air is taken in from above the workstation and passed through an ULPA filter.
The filtered air is then passed through the main chamber in a vertical laminar (Unidirectional) air stream before being exhausted through the front opening.
Radical IVF workstation provides ISO Class 3 air cleanliness within the working zone.
The workstation interior is constructed of high quality stainless steel, making the work zone easy to clean. The interior surface will not chip, rust or generate particles.
The ergonomically designed work surface with a curved front edge is designed for maximum operator comfort.
The warm work top is maintained at a constant temperature of 37°± 0.4°C (32.7°F). This not only achieves excellent stability, but also homogenity. The work top temperature is constantly displayed on the front panel, and is easily adjustable from the controller.
High quality ULPA filters have been installed. These filters use an improved mini-pleat separation technique to maximize the surface area.
The dimensions of the Working area are: 120x60x60cm.
