| Model |
RSHW-58A |
RSHW-58 |

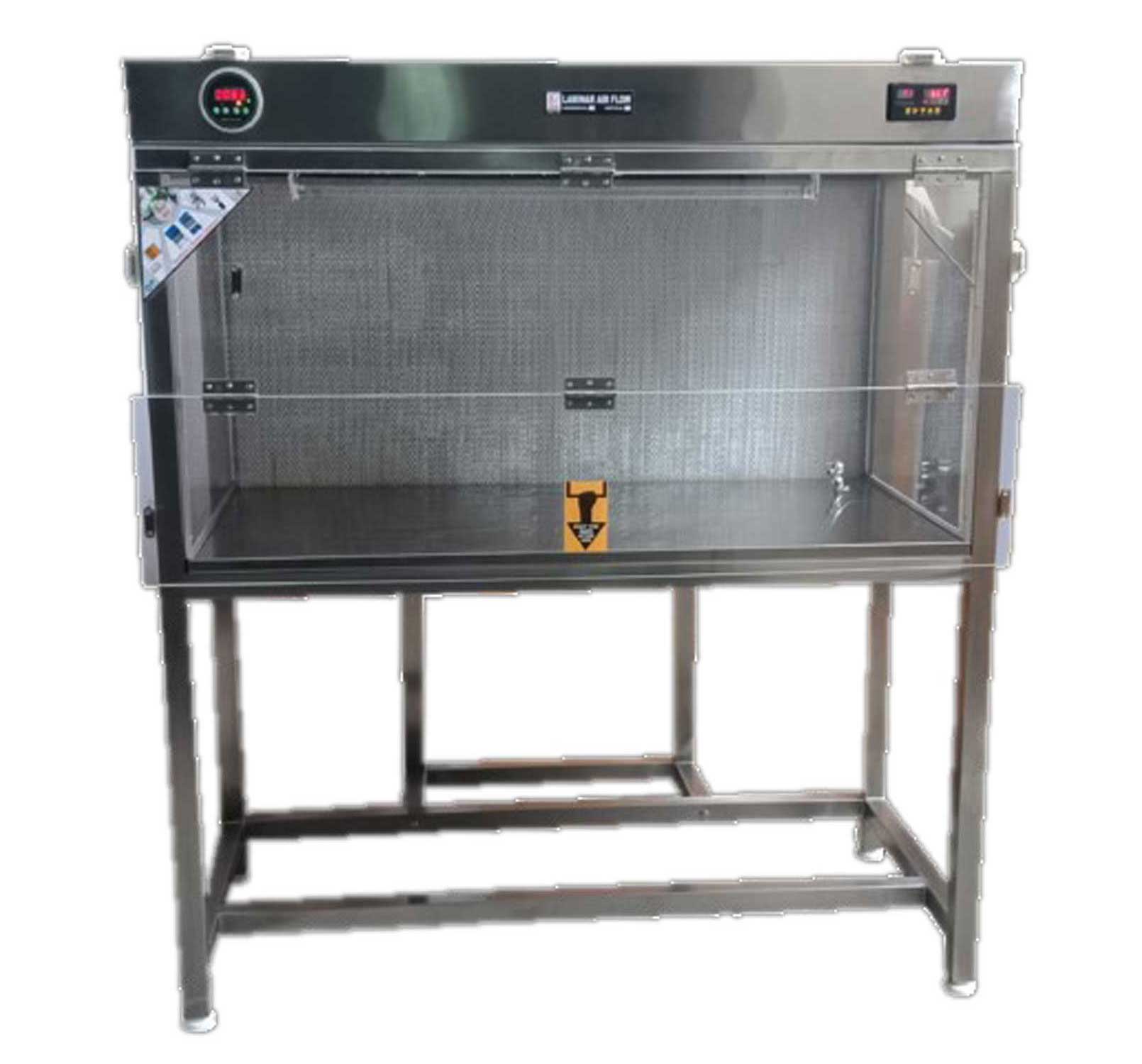

RSHS-58 Stainless Steel |
RSHM-58 Mild Steel |
RSHM-58A Mild Steel |

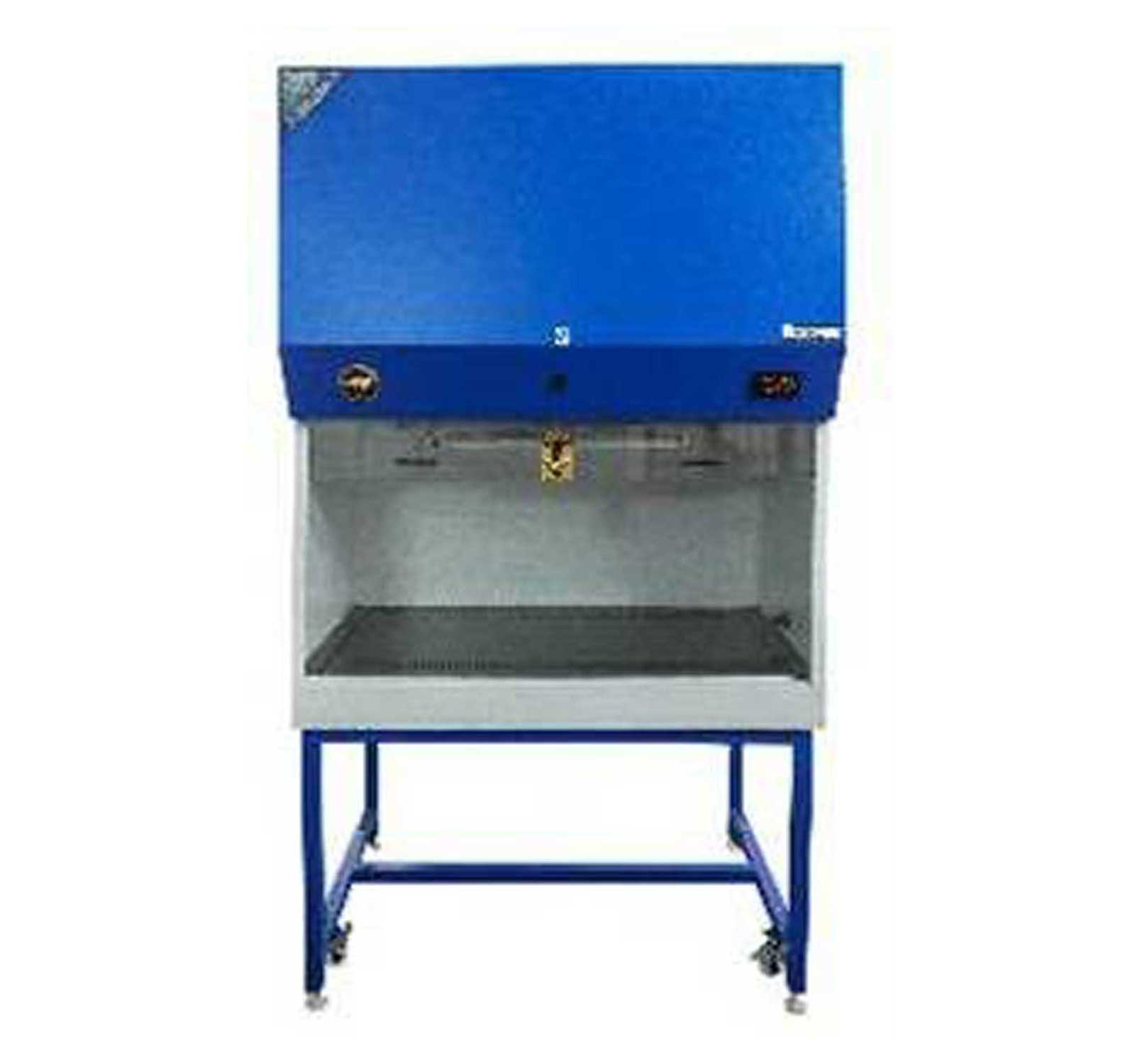

RSHS-58A Stainless Steel |
| Cleanliness |
Class 100. |
| Velocity |
0.35-0.50m/sec. |
| HEPA Filter |
Confirms to ISO standard 14644 (Class 5).
99.97%-99.99% efficiency for particles down to 0.3 micron.
Mesh guard for protection of HEPA Filter. |
| Pre Filter |
90.00% efficiency for particles down to 5 micron. |
| Airflow |
Frontward Horizontally. High airflow capacity. |
| Noise Level |
Low noise level. 60 decibel ± 5%. |
| Cabinet |
The cabinet is made up of 19mm thick Dura Board covered with sun mica from the outside and epoxy painted from the inside. |
The cabinet is made up of 304 grade stainless steel. |
The cabinet is made up of Mild Steel which is duly powder coated. |
The cabinet is made up of 304 grade Stainless Steel. |
| Work Table |
Made up of stainless steel 304gr. Cock for gas on work table. |
| Front door |
Made up of Acrylic (Foldable). |
Made up of Acrylic and is duly counter balanced. |
Made up of Acrylic (Foldable). |
Made of Toughened glass. (Motorized for easy working). |
| Side Panels |
6mm± 5mm thick Acrylic sheet. |
| UV Lamp |
To sterilize the work zone.
15/30W (make Philips Holland). |
| Illumination |
High intensity LED white light for easy operations. |
| Heavy Duty Blower |
Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor. |
| Switches |
Microprocessor based Switches for Blower, LED light and UV light, with LED back light display. (UV light with Timer) |
Microprocessor based control touch panel for Blower, LED light & UV light with LED back light display. (UV light with Timer). Motorized front door of toughened glass. |
| Pressure |
0-50mm range (Digital Manometer); with filter failure alarm system. |
0-50mm range (Inclined Manometer). |
0-50mm range (Digital Manometer); with filter failure alarm system. |
| Electricals |
15/5 AMP socket with switch. |
| Safety Features |
Voltage fluctuations Protection. Micro switches for UV & LED Lights. |
| Stand |
Castor Wheels for easy movement. Front Wheels are lockable with brakes. |
| Power Supply |
230V ± 10V/50 Hz single phase A.C. |
