ProCAM ALPHA HD series is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer. For HDMI camera mode, The XCamView will be loaded and the Camera Control Panel+ Measurement Toolbar + Synthesis Camera Control Toolbar are overlaid on the HDMI screen when the mouse move to the related region, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and perform the measurement ital. For USB Video camera mode, plug in the micro USB host cable to the camera’s USB Video port and computer USB port, then the video stream can be transfer to computer with the advanced software With you can control the camera, process the video and image as other USB series camera. ALPHA1080 series camera can be used for microscope, industrial stereo microscope, on-line inspection.
| Model | ProCAM CCD Alpha HD |
|---|---|
| Sensor/Size | 1/2.8" (5.57mm x 4.13mm) |
| Pixel Size | 2.9µm x 2.9µm |
| Resolution Frame Rate (Live, Capture & Record) |
1920x1080 : 60FPS (HDMI) |
| 1920x1080 : 26FPS (USB) | |
| G Sensitivity Dark Signal |
1300 mv with 1/30s 0.15 mv with 1/30s |
| Exposure | 0.036ms~8s |
| Binning | 1x1 |
| UI Operation | With USB Mouse for HDMI Mode |
| Video Record | 1080P 26fps in SD Card(8G) |
| Image Capture | High Speed in SD Card(8G) |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment and Sharpness Control |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
| White Balance | Auto White Balance,Manual White Balance and ROI White Balance |
| Color Technique | Ultra-Fine Color Engine (USB2.0) |
| Capture/Control API | Standard UVC for Windows/Linux/Mac(USB2.0) |
| Recording System | Still Picture or Movie (HDMI or USB) |
| Operating Support | Windows 7/8/8.1/10/11 (32 & 64 bit) OSx(Mac OS X) Linux |
| Operating/Storage Temp.(in Centidegree) | -10~ 50, -20~ 60 |
| Operating/Storage Humidity | 30~80%RH, 10~60%RH |

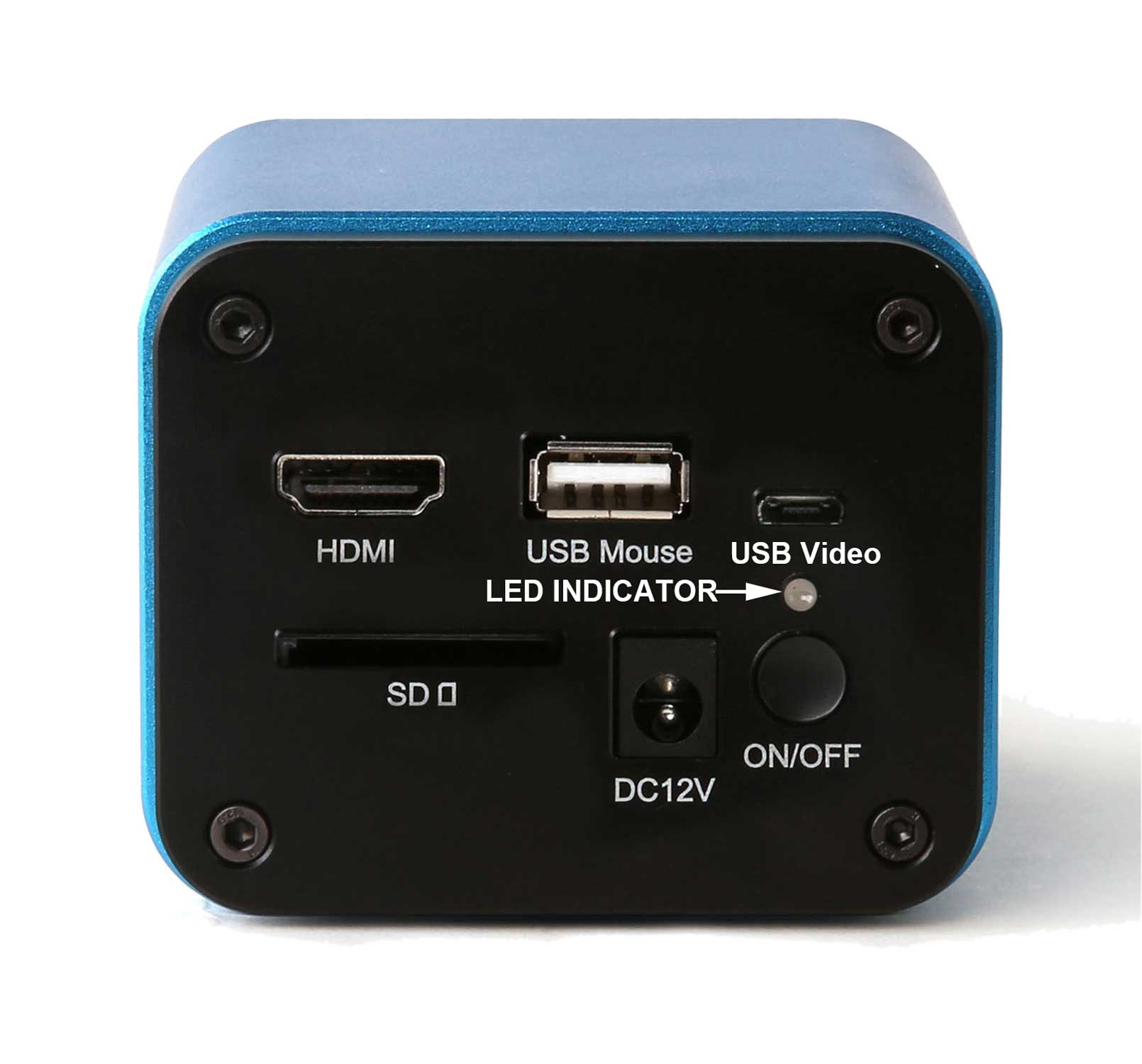

| Interface & Button Functions | HDMI Output, USB Mouse for the Ctrl of the HDMI Mode, USB Video for the PC, SD Card Slot, 12V/1A Power in, Power On/Off Switch, Power On Indicator |
| Power Supply | DC 12V/2A Adaptor |
| Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) |
| Weight | 0.47 kg (1.0lbs) |
