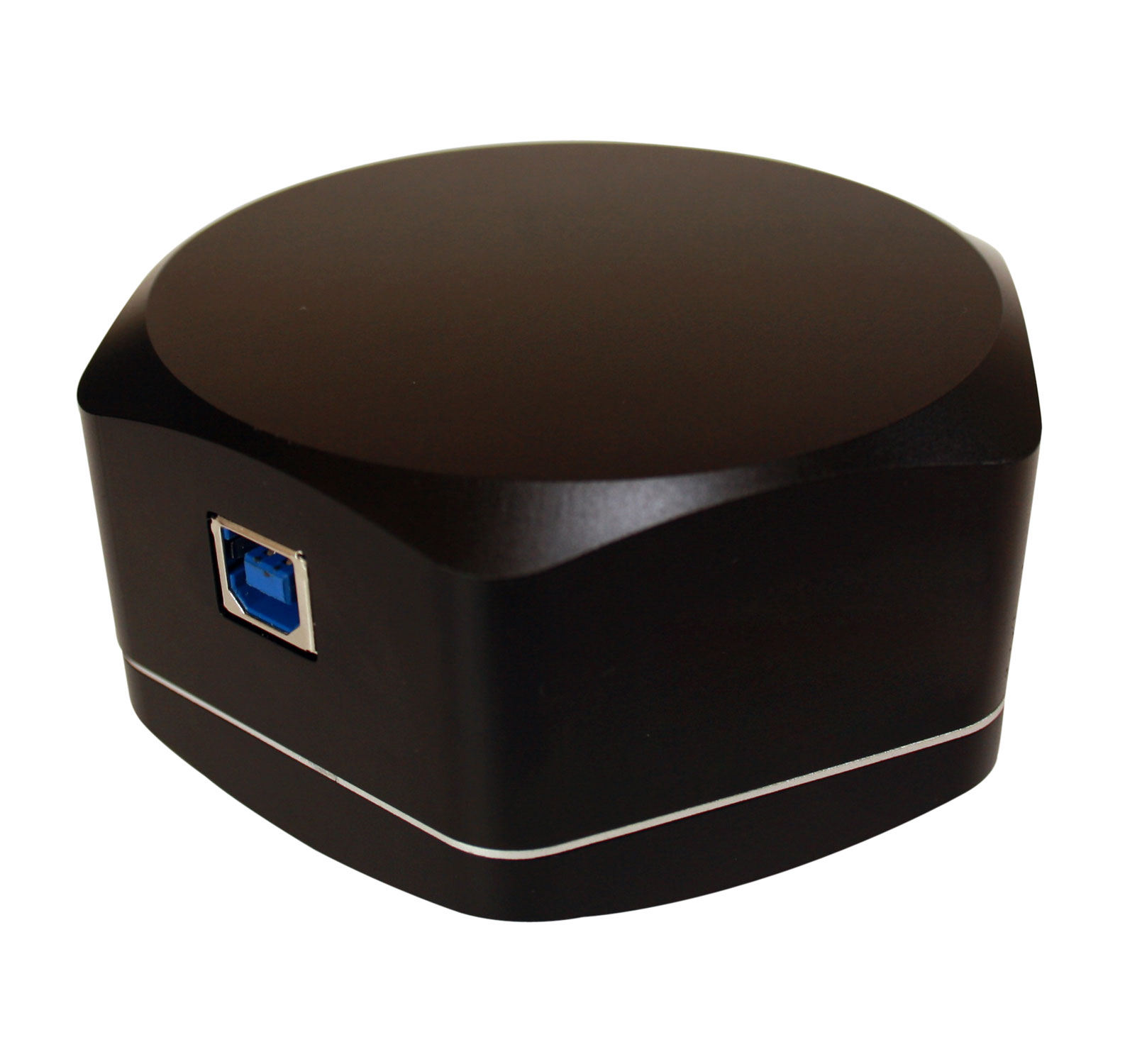

CMOS B Series
Cameras are high end microscope cameras, specially designed for microscope application. Adopt large area array high performance CMOS sensor, with image buffer technology. Have various outstanding features as: low noise, high definition, excellent color reproduction and stable transmission etc. Plug and play USB2.0 interface, occupy less system resources.
| Model | ProCAM-5B | ProCAM-5C | ProCAM-10B | |
|---|---|---|---|---|
| Pixels | 5 MP (Colour) | 5.0 MP (Colour/Mono) | 10.0 MP (Colour) | |
| Sensor Size | 1/2" | 1/2.24" | 1/2.3" | |
| Pixel Size | 2.2 µm X 2.2µm | 2.2 µm X 2.2µm | 1.67 µm X 1.67 µm | |
| Resolution/Frame Rate (Live, Capture & Record) |
2592x1944: 7FPS 1280x960: 27FPS 640x480: 90FPS Any Area ROI |
2592x1944: 30FPS 1920x1080: 30FPS 1280x960: 27FPS 640x480: 90FPS Any Area ROI |
3584x2748: 3.3FPS 1792x1374: 11FPS 896x684: 38FPS Any Area ROI |
|
| Exposure Time | 0.2ms~2000ms | 0.1ms~3000ms | 0.4ms~2000ms | |
| Sensitivity | 0.53 V/lux-sec | 0.53 V/lux-sec @ 550nm | 0.31 V/lux-sec | |
| SN Ratio | 44dB | |||
| Dynamic Range | 67dB | |||
| Binning | 1x1, 2x2, 4x4 | |||
| Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview | |||
| Cooling | Peltier fan cooling (optional) | |||
| Spectral Range(nm) | 380 nm ~ 720nm (with infrared filter) | |||
| Shutter | Electronic Rolling shutter | |||
| Image Data Format | 12 bit RAW Format | |||
| AD Conversion | 14 bit | |||
| Operating Mode | Continuous output | |||
| Scanning Mode | Progressive Scan | |||
| Exposure Control | Manual/ Auto/ Area | |||
| White Balance | Manual / One time /Auto/ Area | |||
| Image Processing | GAMMA/ Contrast/ Black Level/ Noise Reduction /3D Noise Reduction/ Sharpness / Saturation | |||
| Picture Format | JPEG/ BMP/ PNG/ RAW | |||
| Software interface | Radical ProCAM Capture & Measurement Software (Supports Direct Show/TWAIN) | |||
| Operating System | Windows 7 /8 /10 /11 (32 & 64 bit) OS X (Mac OS X), Linux | |||
| Data Interface | USB2.0 (B Type) | |||
| Lens Mount | 0.5X C/CS Mount | |||
| Dimensions/Weight | Metallic square body 58mm, height 36mm/(Exclude Lens Mount)/Approx. 180g | |||
| Rated Voltage/Power | 5V via USB | |||
| Temp/Humidity | Operation: 0~50°C /storage: -20°C ~ 60°C/ Working: 10%~90% RH (No Condensation) 10% ~ 60% | |||
