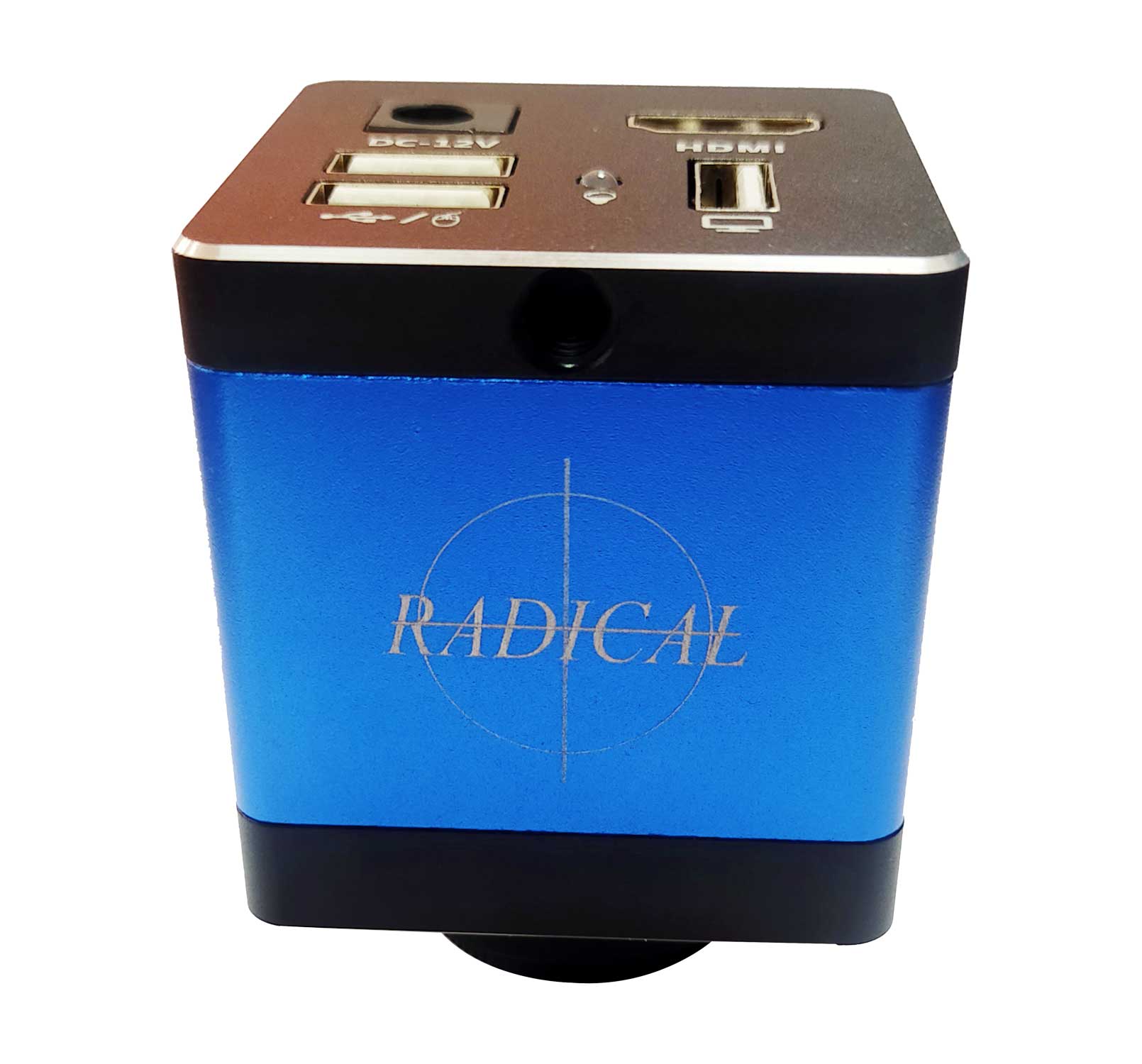

Mini HDMI Cameras
The Mini HDMI camera is a CMOS camera with an HDMI interface that uses an ultra-high-performance CMOS sensor. The camera can be connected directly to the HDMI monitor. The 1080P resolution allows for an easy connection to the HD display currently on the market.
The Mini HDMI can display the various functions of the control camera directly on the HDMI display in the form of a control panel, and the user can directly control and measure the various parameters of the camera with the mouse.
| Sensor Type | CMOS |
| Sensor Optical Forma | 1/1.9" |
| Active Pixels | 5.04M (2592 x 1944) |
| Pixel Size | 2.4µm x 2.4µm |
| Active Sensor Area | 6.22mm x 4.67mm |
| Shutter | Electronic rolling shutter |
| Sensitivity | 425mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
