CMOS HSR Series



Our new generation USB3.0 cameras, with big array and high frame rates; With high sensitivity , ultra-low power consumption and super low noise output, real color reproduction and high image quality in various environment and color temperature.
With high sensitivity ,widely used in microscopy imaging, material analysis, medical inspection, police forensics, teaching and research applications etc.

  • High speed CMOS microscope camera
  • Upto to 20MP

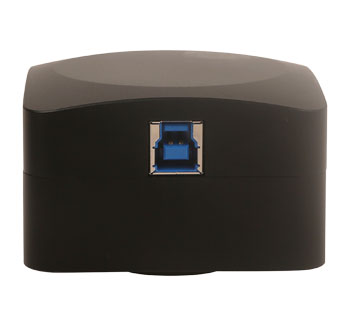

  • USB 3 interface
  • Upto 60 fps at ROI
  • 3.45 x 3.45 µm pixel size
  • 1 inch sensor
  • 12 bit
  • Software included
  • Model ProCAM HSR-5 ProCAM HSR-6 ProCAM HSR-10 ProCAM HSR-12 ProCAM HSR-16 ProCAM HSR-20
    Pixels 5.0MP(Colour/Mono) 6.0MP (Colour/mono) 10MP (Colour/mono) 12.0MP (Colour) 16.0MP (Colour) 20.0MP (Colour)
    Sensor Size 1/2.8" CMOS 1/1.8" CMOS 1/2.3" CMOS 1" CMOS 1/2.3" CMOS 1/1.2" CMOS
    Pixel Size 2.0µm x 2.0µm 2.4µm x 2.4µm 1.67µm x 1.67µm 3.1µm x 3.1µm 1.34µm x 1.34µm 5.86µm x 5.86µm
    Resolution/Frame Rate
    (Live, Capture & Record)
    2560x1920: 30FPS
    1600x1200: 50FPS
    Any Area (ROI)
    3072x2048: 59FPS
    1920x1080: 59FPS
    1440x1024: 30FPS
    640X480: 70FPS
    Any Area (ROI)
    3584x2748: 7.2FPS
    1920x1080: 15FPS
    1792x1374: 24.5FPS
    896x684: 38FPS
    Any Area (ROI)
    4088x3072(full): 5FPS
    Any Area ROI
    4608x3456(full): 12FPS
    AnyArea ROI
    5760x3600:15FPS
    1920x1200:60FPS
    960x600:60FPS
    Any Area ROI
    Exposure Time 0.1ms~2s 100µs-30S 0.3ms~2000ms 100µs-10S 95µs-10ms 26μs - 1s
    Sensitivity 18.8ke-/lux 73dB
    40dB
    425mv with 1/30s
    0.15mv with 1/30s
    0.34v/lux-sec at 550nm 1146mv with 1/30s
    0.1mv with 1/30s
    388mv with 1/30s
    0.21mv with 1/30
    462mv with 1/30s
    0.21mv with 1/30s

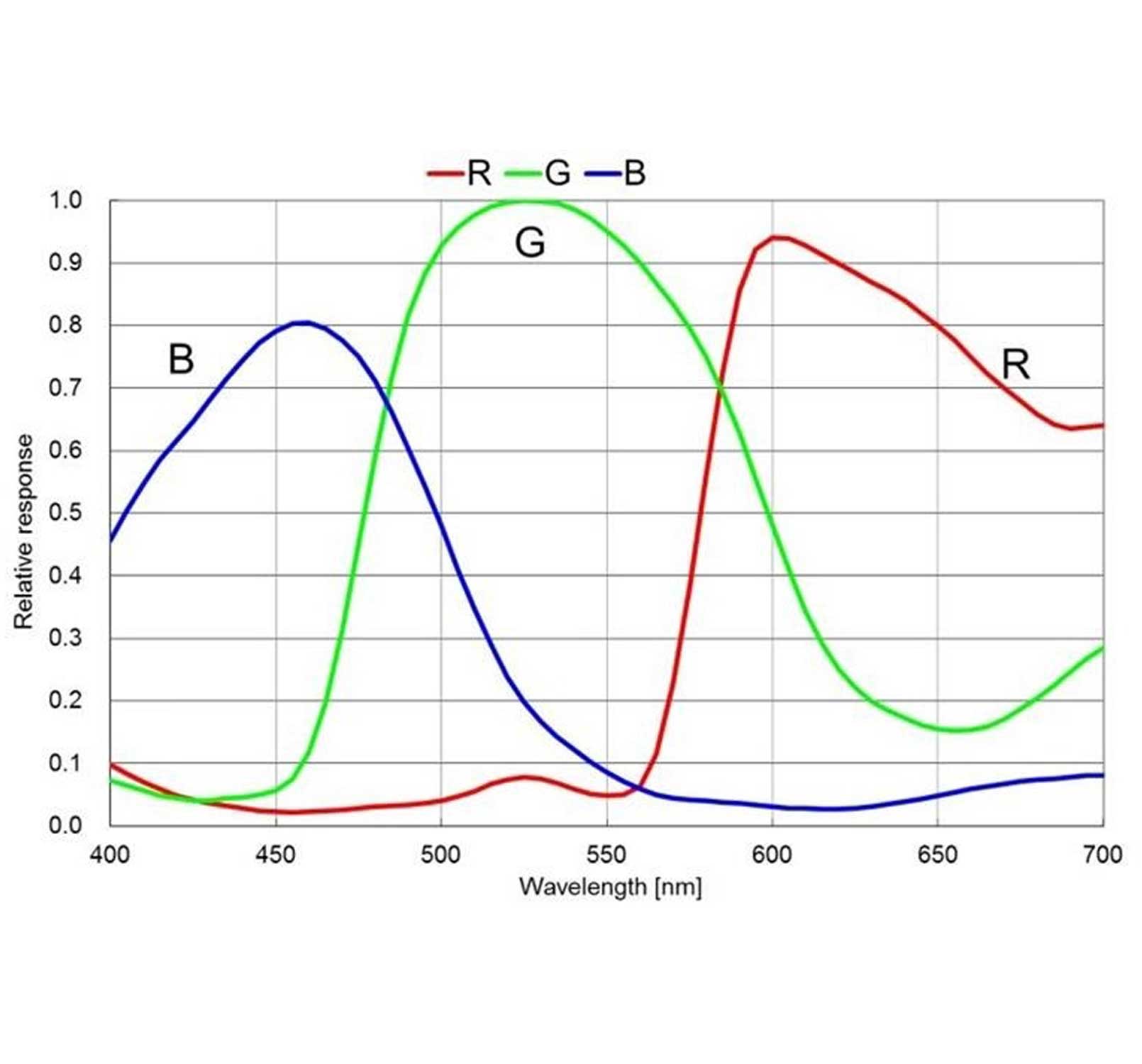

    Quantum Efficiency Upto 80% at 500nm Upto 65% at 500nm Upto 75% at 500nm Upto 80% at 500nm Upto 80% at 500nm Upto 80% at 500nm
    ISO Sensitivity ISO 50 to ISO 3200
    Gain Upto 25X
    Dynamic Range 75dB
    Full Well Capacity 14000e
    SN Ratio 46dB
    Spectral Range(nm) 380 nm ~ 1050nm (with infrared filter)
    Binning 1x1, 2X2, 3X3, 4X4
    Shutter Electronic Rolling shutter
    Image Data Format 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer
    Image Format 4/3
    Shading Manual/Auto
    Readout Noise 12 e-
    Shading Manual/Auto
    AD Conversion 12 bit
    Picture Format JPEG/BMP/PNG/RAW
    Colour rendering technique Ultra fine colour engine
    Exposure Correction Average metering: ±1EV, Step:1/6EV
    Image Processing GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Sharpness/ Saturation
    Scanning Mode Progressive Scan
    Operating Mode Continuous Output
    Exposure Control Manual /Auto /Area
    Capture/Control API Native C/C++, C#, Directshow, Twain, Labview, SDK
    Cooling Natural/Peltier fan/passive cooling
    IR Filter Range 380-650nm (IR Cut)
    White Balance Manual/One-Time/Auto
    Software interface Radical ProCAM Capture & Measurement Software (Supports Direct Show /TWAIN)
    Operating System Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux
    Data Interface USB 2.0 (B Type) at 480 Mb/s/USB 3.0

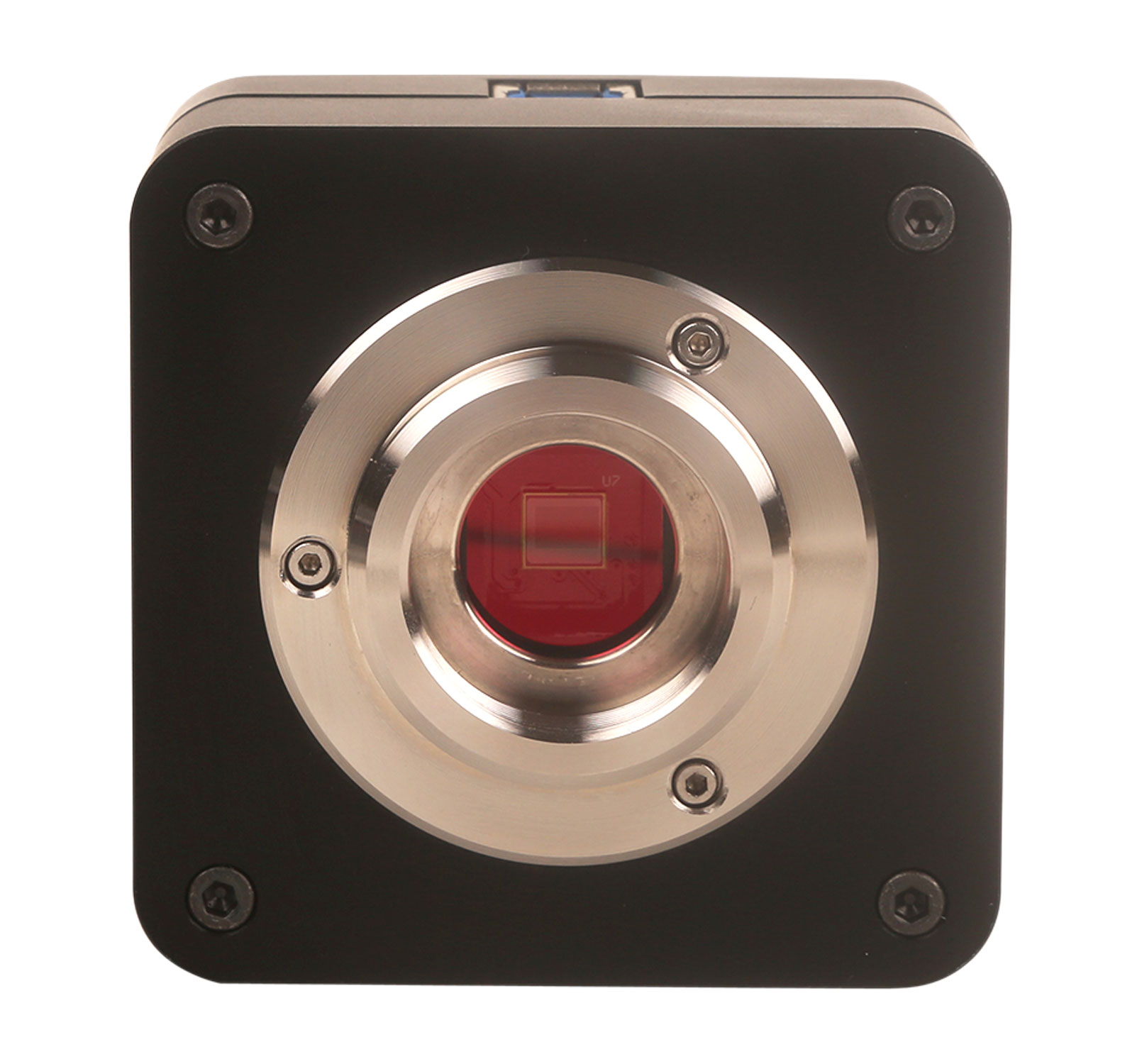

    Lens Mount 0.5X C/CS Mount, Compatible C-Mount with microscope & sizing adapter tube
    Technology On-sensor light guide technology for reducing scattering of light inside the senor
    Dimensions/Weight Metallic square body 58mm, height 36mm/(Exclude Lens Mount)/Approx. 180g
    Rated Voltage/Power 5V via USB
    Temperature/Humidity Operation: 0~60°C /storage: -20°C ~ 60°C/ Working: 10%~90% RH (No Condensation) 10% ~ 60%
    LED Pilot Light RH Light Once Plugged/flashing while working

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
