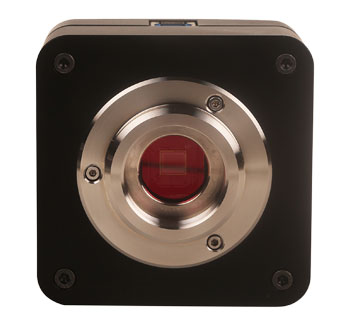

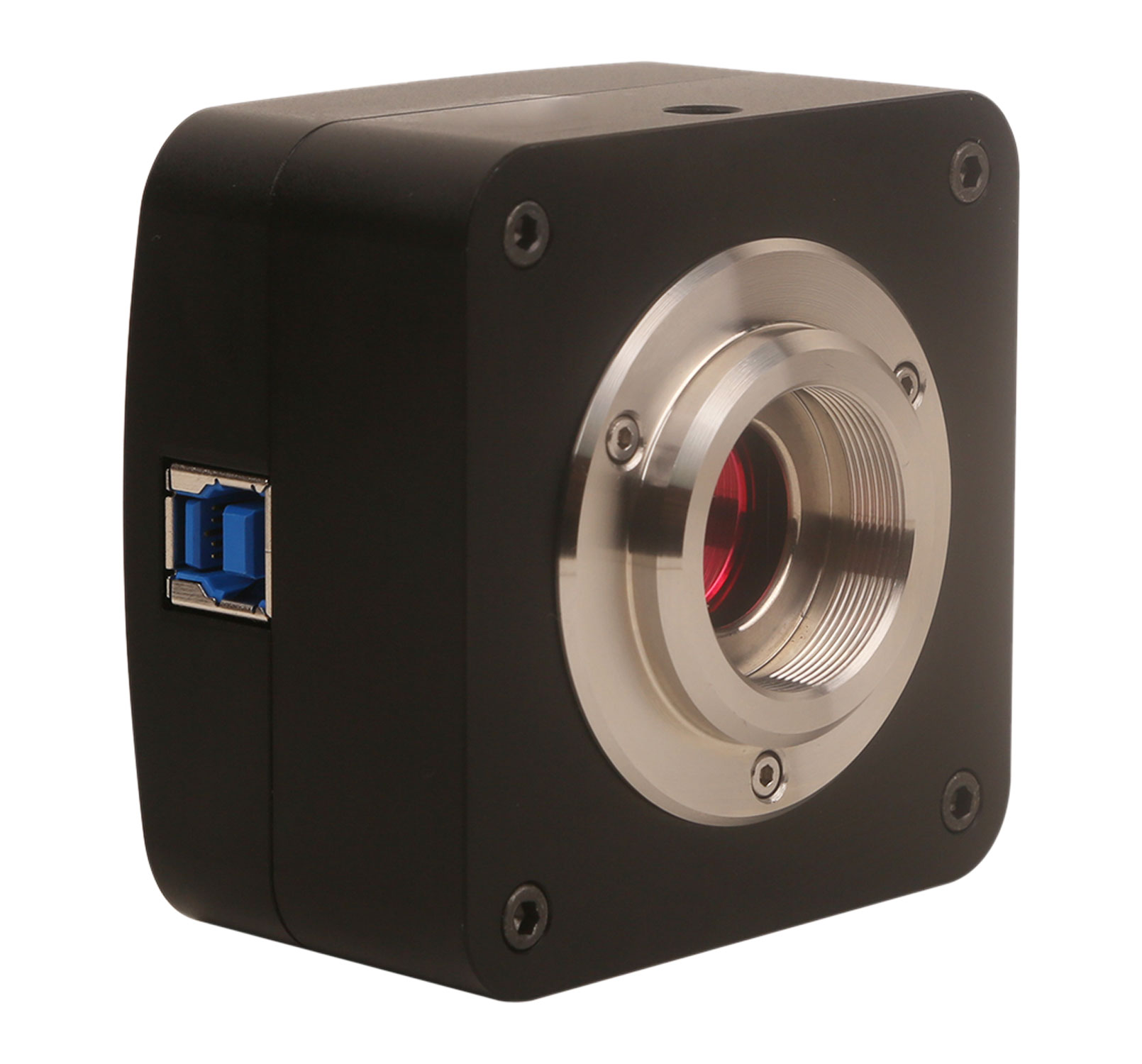

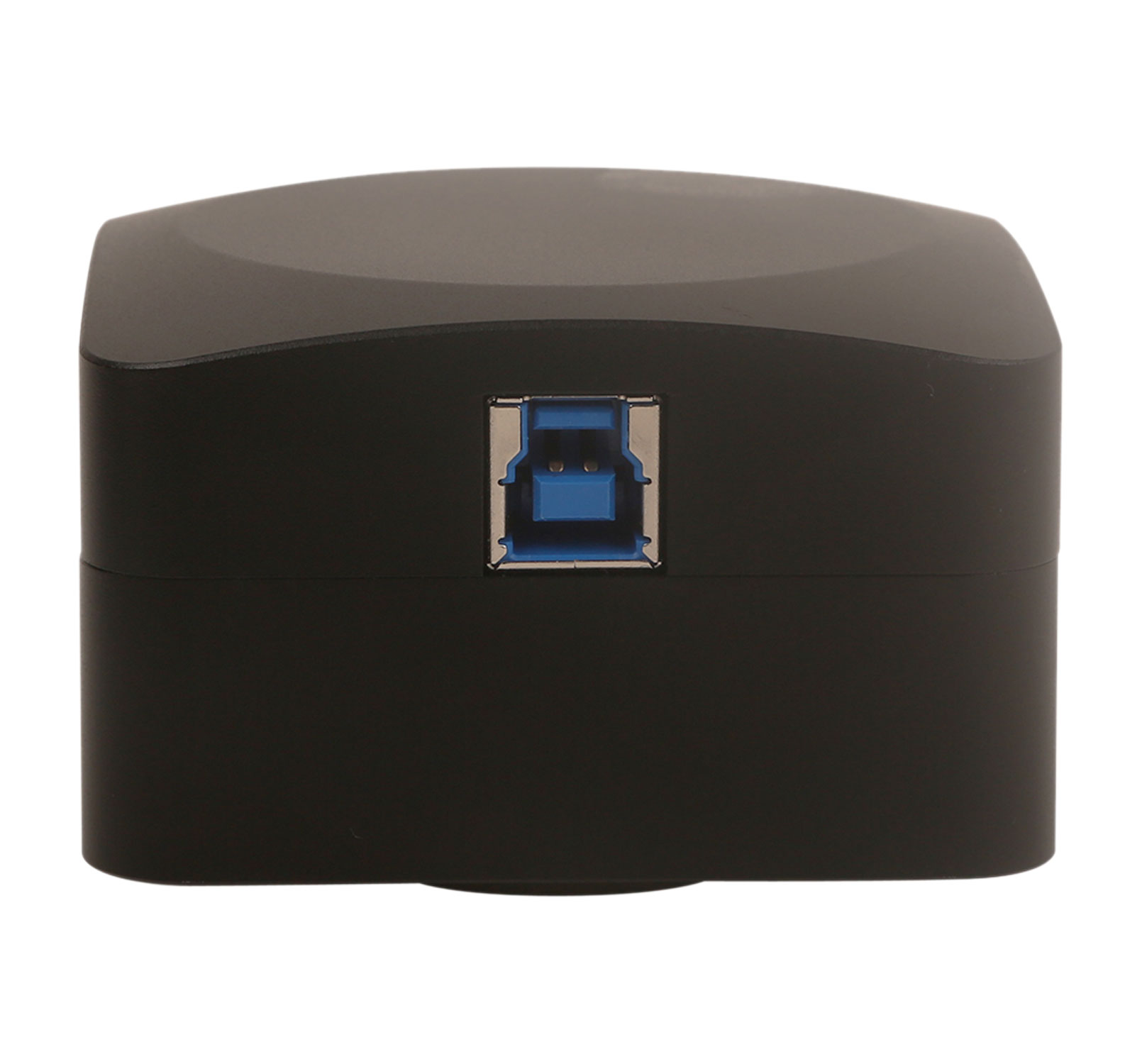

CMOS HST Series



Standard C-Mount camera with CMOS sensor With hardware resolution among 1.5MP to 45MP. Integrated zinc aluminum alloy housing. USB3.0 5Gbps interface ensuring high speed data transmission. Ultra-Fine color engine with perfect color reproduction capability. With advanced video & image processing application Providing Windows/Linux/OSX multiple platform SDK. Native C/C++, C#, DirectShow, Twain Control API.

  • 45MP CMOS microscope camera
  • Upto to 86.1fps
  • USB 3.0 interface
  • 2.3µm x 2.3µm pixel size
  • 1.4" sensor
  • 12 bit
  • Software included
    •
    Model Pixels Sensor Size Pixel Size Resolution/Frame Rate
    (Live, Capture & Record)         		Exposure Time Sensitivity
    ProCAM HST-1.5 1.5MP
    (Colour/mono)     		1/2.9"
    (4.968mmX3.726mm)     		3.45µmX3.45µm 1440x1080:164FPS
    720x540:320FPS
    Any Area (ROI)     		0.1ms~15s 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-2 2MP
    (Colour)     		1/2"
    (7.2mmX4.05mm)     		3.75µmX3.75µm 1920x1080:125FPS
    Any Area (ROI)     		0.1ms~15s 2350mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-2.1 2.1MP
    (Colour)     		1/1.2"
    (11.14mmX6.26mm)     		5.8µmX5.8µm 1920x1080: 96FPS
    Any Area (ROI)     		14us~15s 8935mv with 1/30s
    0.6mv with 1/30s
    ProCAM HSTC-2.3 2.3MP
    (Colour/mono)     		1/1.9"
    (7.20mmX4.50mm)     		3.75µmX3.75µm 1920x1200: 38FPS
    960x600: 66FPS
    Any Area (ROI)     		0.244ms~2000ms 1120mv with 1/30s
    ProCAM HST-2.3 2.3MP
    (Colour/mono)     		1/1.2"
    (11.25mmX7.03mm)     		5.86µmX5.86µm 1920X1200: 30FPS
    1920X1080: 65FPS
    Any Area (ROI)     		0.244ms~2000ms 1016mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-3.1/3.0 3.1MP
    (Colour/mono)     		1/1.8" 3.45µmX3.45µm 2112x1584: 60FPS
    1024x768: 85FPS
    Any Area (ROI)     		0.1ms~15s 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-3.5 3.5MP
    (Colour/mono)     		1/2.5" 2.60µmX2.60µm 2304x1536: 40FPS
    1152x768: 40FPS
    Any Area (ROI)     		25µs~2s 3.0V/lux-sec
    ProCAM HST-5 5.0MP
    (Colour/mono)     		2/3" 3.45µmX3.45µm 2448x2048: 36FPS
    1224x1024: 50FPS
    Any Area (ROI)     		0.1ms~30s 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-5M 5.0MP
    (Monochrome)     		2/3" 3.45µmX3.45µm 2448x2048: 15FPS
    1224x1024: 60FPS
    Any Area (ROI)     		0.1ms~60s 915mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-5A 5.1MP
    (Colour/mono)     		1/2.8" 2.0µmX2.0µm 2592x1944: 20FPS
    1296x972: 40FPS
    Any Area (ROI)     		0.1ms~2000ms 2000mV
    ProCAM HST-5.1 5.1MP
    (Colour/mono)     		2/3" 3.45µmX3.45µm 2592x1944: 30FPS
    2464x2056: 36FPS
    2048x2048: 36FPS
    1920x1080: 67FPS
    1536x1024: 68FPS
    1024x1024: 70FPS
    640x480: 30FPS
    512x512: 136FPS
    128x128: 456FPS
    Any Area (ROI)    		 0.1ms~60s 915mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-5.1A 5.1MP
    (Colour/mono)     		1/1.8" 2.74µmX2.74µm 2448x2048: 63FPS
    1224x1024: 208.4FPS
    Any Area (ROI)    		 0.03ms~15s 1337mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-5.1B 5.1MP
    (Colour/mono)    		 1/1.8" 3.45µmX3.45µm 2448x2048: 75FPS
    1224x1024: 208.4FPS
    Any Area (ROI)    		 0.03ms~15s 1337mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-5.9 5.9MP
    (Colour/mono)    		 1/1.8"
    (6.91mmX4.92mm)    		 2.4µmX2.4µm 2880x2048: 15FPS
    1440x1024: 30FPS
    Any Area (ROI)    		 100µs~30sec. 425mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-6 6.3MP
    (Colour/mono)     		1/1.8"
    (7.37mmX4.92mm)     		2.4µmX2.4µm 3072x2048: 59FPS
    2560x1920: 59FPS
    1920x1080: 60FPS
    1536x1024: 59FPS
    1440x1024: 59FPS
    640X480: 70FPS
    Any Area (ROI)     		13µs~30s 425mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-8 8.3MP
    Colour     		1/1.8"
    (7.68mmX4.32mm)     		2.0µmX2.0µm 3840x2160: 35FPS
    1920x1080: 65FPS
    Any Area (ROI)     		11µs~30s 505mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-8A 8.3MP
    Colour/Mono     		1/1.2"
    (11.14mmX6.26mm)     		2.9µmX2.9µm 3840x2160: 45FPS
    1920x1080: 70FPS
    Any Area (ROI)     		0.02ms~15s 2188mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-8D 8.3MP
    Colour/Mono     		1/2.5"
    (6.22mmx3.50mm)     		1.62µmx1.62µm 3840x2160: 32FPS
    1920x1080: 65FPS
    Any Area (ROI)    		 0.244ms~15s 236mv with 1/30s
    0.1mv with 1/30s
    ProCAM HST-8L 8.0MP
    Colour     		1.15"
    (13.00mmX13.00mm)     		4.63µmX4.63µm 2808x2808: 30FPS(14bit)
    1392x1392: 139FPS
    696x696: 139FPS
    Any Area (ROI)    		 0.1ms~15s 419mv with 1/30s
    0.12mv with 1/30s
    ProCAM HST-8.5 8.5MP
    Colour     		1/2.4"
    (5.16mmX3.95mm)    		 1.55µmX1.55µm 3328x2548: 10FPS
    3840x2160: 30FPS
    1664x1272: 56FPS    		 0.1ms~2000ms 250mv with 1/30s
    0.25mv with 1/30s
    ProCAM HST-9 9.0MP
    Colour     		1"
    (11.31mmX11.28mm)     		3.76µmX3.76µm 3008x3000: 40FPS
    1488x1500: 123FPS
    992x998: 186FPS
    Any Area (ROI)     		0.1ms~15s 535mv with 1/30s
    0.04mv with 1/30s
    ProCAM HST-9A 9.0MP
    Colour     		1"
    (14.13mmX7.45mm)     		3.76µmX3.76µm 4100x2160: 34FPS
    3840x2160: 34FPS
    2048x1080: 64FPS
    Any Area (ROI)     		0.03ms~15s 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-9B 9.0MP
    Colour     		1"
    (11.31mmX11.28mm)     		3.45µmX3.45µm 3840x2160: 32FPS
    1920x1080: 64FPS
    Any Area (ROI)     		0.02ms~15s 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-10 10MP
    (Colour/mono)     		1/2.3"
    (5.98mmX4.58mm)     		1.67µmX1.67µm 3584x2748: 7.2FPS
    1920x1080: 15FPS
    1792x1372: 25FPS
    1792x1374: 25FPS
    896x684: 30FPS
    Any Area (ROI)    		 0.3ms~2000ms 0.34v/lux-sec at 550nm
    ProCAM HST-10A 10MP
    (Colour/mono)     		1/2.3"
    (5.68mmX4.26mm)     		1.5µmX1.5µm 3664x2748: 8.5FPS
    2048x1536: 20.8FPS
    1920x1200: 30FPS
    1832x1374: 49FPS
    912x686: 137FPS
    Any Area (ROI)    		 0.1ms~2000ms 250mv with 1/30s
    0.25mv with 1/30s
    ProCAM HST-12 12MP
    (Colour/mono)     		1/1.7" 1.85µmX1.85µm 4000x3000: 7.1FPS
    3000x2000: 28FPS
    2048x1080: 30FPS
    Any Area (ROI)    		 0.1ms~2000ms 280mv with 1/30s
    0.1mv with 1/30s
    ProCAM HSTF-12 12MP
    (Colour/mono)     		1/1.7" 1.85µmX1.85µm 4000x3000: 30FPS
    2048x1080: 50FPS
    Any Area (ROI)    		 0.1ms~15s 280mv with 1/30s
    0.1mv with 1/30s
    ProCAM HST-12.3 12.3MP
    (Colour/mono)     		1.1" (14.13mmx10.35mm), 17.5mm diagonal 3.45µmX3.45µm 4096x3008: 24FPS
    2048x1504: 52FPS
    Any Area (ROI)    		 100µs~15sec 1146mv with 1/30s
    0.15mv with 1/30s
    ProCAM HST-14 14MP
    (Colour)    		 1/2.3" 1.4µmX1.4µm 4096x3288: 6.2FPS
    2048x1644: 20.8FPS
    1920x1080: 31FPS
    1024x822: 53.3FPS
    Any Area (ROI)    		 0.4ms~2000ms 0.724v/lux-sec
    ProCAM HST-15 15MP
    (Colour/mono)     		1/2.25" 1.3µmX1.3µm 4648x3506: 10FPS
    2304x1750: 15.0FPS
    1920x1080: 30FPS (Full HD)
    1536x1168: 28.0FPS
    Any Area (ROI)    		 100μ-30s 0.53 V/lux-sec
    ProCAM HST-16 16MP
    (Colour/mono)     		1/2.33" 1.33µmX1.33µm 4648x3506: 10FPS
    2304x1750: 15.0FPS
    1536x1168: 28.0FPS
    Any Area (ROI): 50FPS at ROI    		 100µ-30s 0.53 V/lux-sec
    ProCAM HST-LD 16 16MP
    (Colour)     		4/3" 3.85µmx3.85µm 4648x3506: 22FPS
    2304x1750: 43FPS
    1536x1168: 49FPS
    Any Area (ROI)    		 0.2ms~15s 0.53 V/lux-sec
    ProCAM HST-18 18MP
    (Colour/mono)     		1/2.3"
    (6.14mm x 4.61mm)    		 1.25µmX1.25µm 4912x3684: 5.6FPS
    2456x1842: 18.1FPS
    1920x1080: 31FPS
    1228x922: 32.2FPS
    Any Area (ROI)    		 10µs~2 Sec 0.62 V/lux-sec
    ProCAM HSTF-18 18MP
    (Colour)     		1/2.2"
    (5.86mmX4.46mm)     		1.25µmX1.25µm 4880x3720: 17FPS
    2448x1836: 40FPS
    1728x1296: 55FPS
    Any Area (ROI)     		22µs~15s 130mv with 1/30s
    0.10mv with 1/30s
    ProCAM HST-20 20MP
    (Colour/mono)     		1"
    (13.06mmX8.76mm)     		2.4µmX2.4µm 5440x3648:15FPS
    4912x3684: 20FPS
    3840x2160: 25FPS
    2736x1824: 50FPS
    3072x2048: 59FPS
    1824x1216: 60FPS
    1920x1080: 64FPS
    Any Area (ROI)     		22µs~30s 462mv with 1/30s
    0.21mv with 1/30s
    ProCAM HST-21 21MP
    (Colour)     		4/3"
    (17.40mmX13.00mm)     		3.3µmX3.3µm 5280x3954: 17FPS
    3952x3952: 17FPS
    2640x1976: 56FPS
    1760x1316: 67FPS
    584x438: 192FPS
    Any Area (ROI)     		0.1ms~15s 399mv with 1/30s
    0.1mv with 1/30s
    ProCAM HST-25 25MP
    (Colour)     		1/2.3"
    (5.5mm x 5.5mm)    		 1.12µmX1.12µm 4928x4928: 12FPS
    2464x2464: 46FPS
    1648x1648: 100FPS
    Any Area (ROI)    		 0.013ms~15s 96.3mv@1/30s
    0.1mv with 1/30s
    ProCAM HST-32 32MP
    (Colour)     		1.1"
    (12.96mmX12.96mm)     		2.3µmX2.3µm 6144x3456: 8FPS
    5600x5600: 8.1FPS
    2800x2800: 30.0FPS
    1400x1400: 30.0FPS
    Any Area (ROI)     		0.1ms~15s 419mv with 1/30s
    0.03mv with 1/30s
    ProCAM HST-45 45MP
    (Colour)     		1.4"
    ((18.93mmX13.00mm)     		2.3µmX2.3µm 8176x5616: 8.1FPS
    4088x2808: 30.0FPS
    7408x5556: 8.1FPS
    4088x2808: 33.0FPS
    8176x4320: 10.4FPS
    4096x2160: 34.7FPS
    2048x1080: 62.5FPS
    1360x720: 86.5FPS
    Any Area (ROI)    		 0.1ms~15s 419mv with 1/30s
    0.03mv with 1/30s

    Gain Upto 25X
    Dynamic Range 75dB
    Full Well Capacity 14000e
    SN Ratio 46dB
    Binning 1x1, 2x2, 3x3, 4x4
    Capture/Control API Native C/C++, C#/VB.NET, Directshow, Twain, Labview, SDK
    Cooling Natural/Peltier fan/passive cooling (optional)
    IR Filter Range 380-650nm (IR Cut)
    Spectral Range(nm) 380 nm ~ 720nm (with infrared filter)
    Shutter Electronic rolling shutter (Global shutter optional)
    Image Data Format 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer
    Shading Manual/Auto
    AD Conversion 4/8/10/12/16/24/32/64bit
    Readout Noise 12 e-
    Operating Mode Continuous output
    Scanning Mode Progressive Scan
    Exposure Control Manual/Auto/Area
    White Balance Manual/One time/Auto/Area
    Image Processing GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Hue Wheel variation/Sharpness/Saturation
    Quantum Efficiency Upto 80% at 500nm
    Picture Format JPG/JPEG/BMP/PNG/RAW/TIFF
    Colour rendering technique Ultra fine colour engine
    Exposure Correction Average metering: ±1EV, Step:1/6EV
    Software interface Radical ProCAM Software
    Operating System Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux
    Data Interface USB 3/3.1/3.2 (B Type), with 2.5 cable, LV-TV Tube adopter, image capture button on microscope
    body/Trigger/ though single mouse click
    Lens Mount 0.55X/0.65X/1X C/CS Mount, Compatible C-Mount with microscope & sizing adapter tube
    Technology On-sensor light guide technology for reducing scattering of light inside the senor, pixel shift technology
    Dimensions/Weight Metallic square body 58mm, height 36mm/(Exclude Lens Mount)/Approx. 180g
    Rated Volt/Power 5V via USB
    Temp./Humidity Operation:-10~60°C / storage: -20°C ~ 60°C / Working: 10%~90% RH (No Condensation) 10% ~ 60%
    ISO Sensitivity ISO 50 to ISO 3200
    In- built Display Camera can optionally have the 8.4 inch Built-in TFT /LCD sceen(1024 X 768) to view images and control camera functions like zoom upto 16X, time lapse imaging up to 24 hrs, image enhancement featuers like contrast, brightness, white balance,Gamma, shading,black level, hue, saturation etc.

    As we are continuously improving & developing our products, this website may not be updated with the latest advancements. However, we try our best to update it with the latest information.
    For complete and updated specifications, please ask for our latest brochures.
