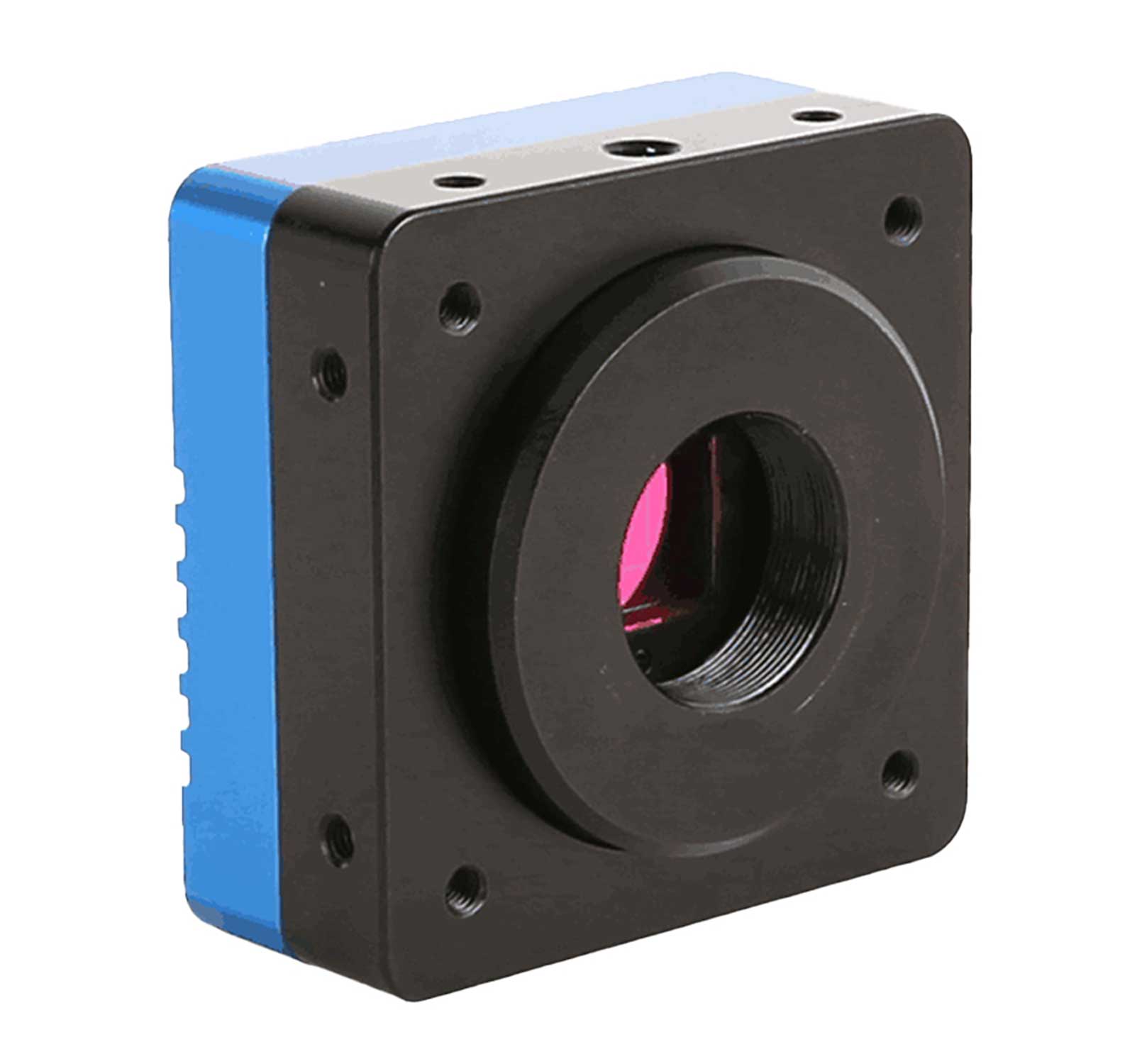

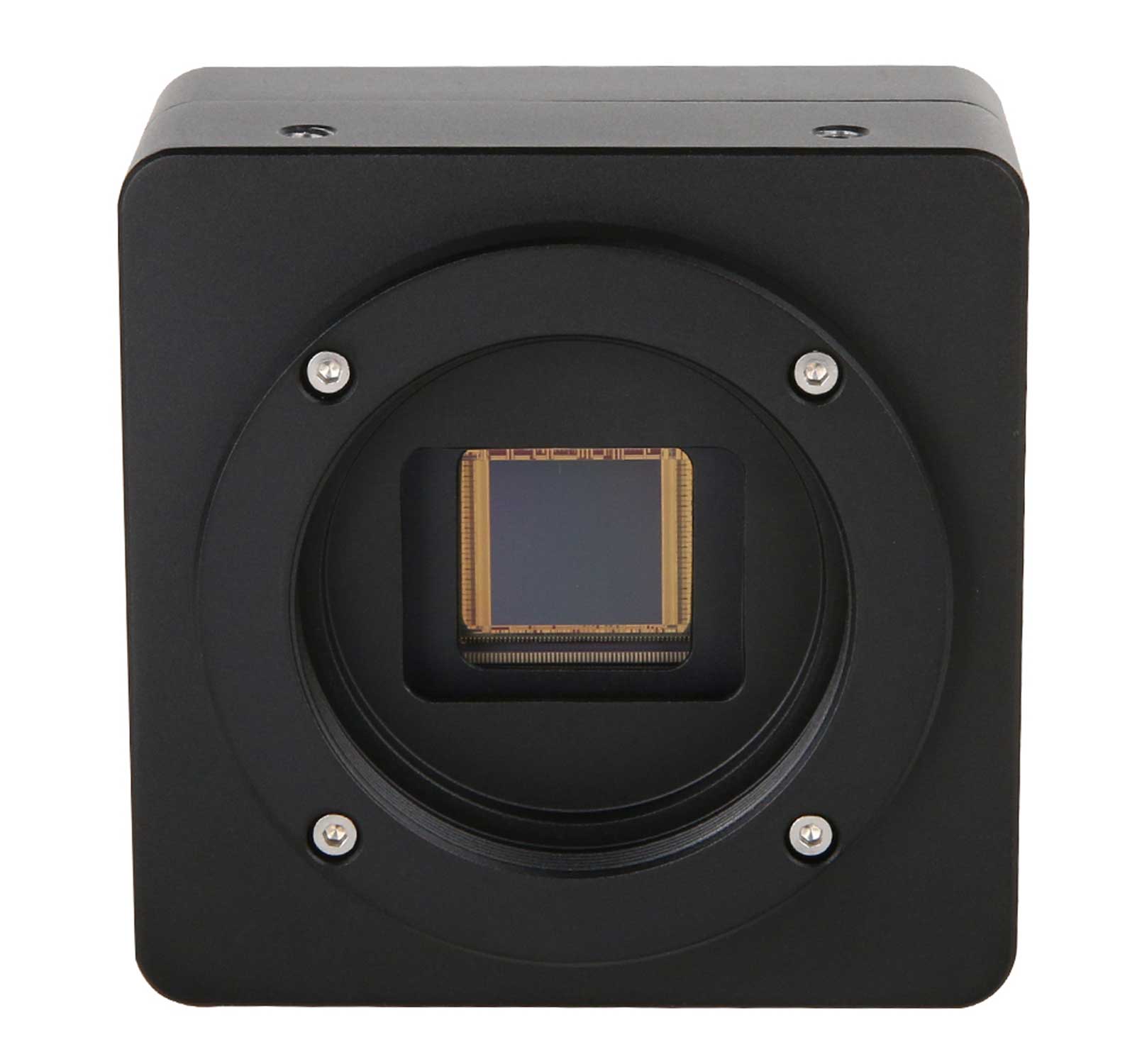

CMOS IUA Series
The ProCAM series is designed for general industrial inspection and scientific imaging, with resolution coverage from 0.39MP to 45MP. It provides multiple models from small to large sensor formats, offering global shutter (GS) or rolling shutter (RS) solutions by application, as well as visible light, Near-Infrared (NIR) and ultraviolet (UV) specialized wavelength models (depending on model).

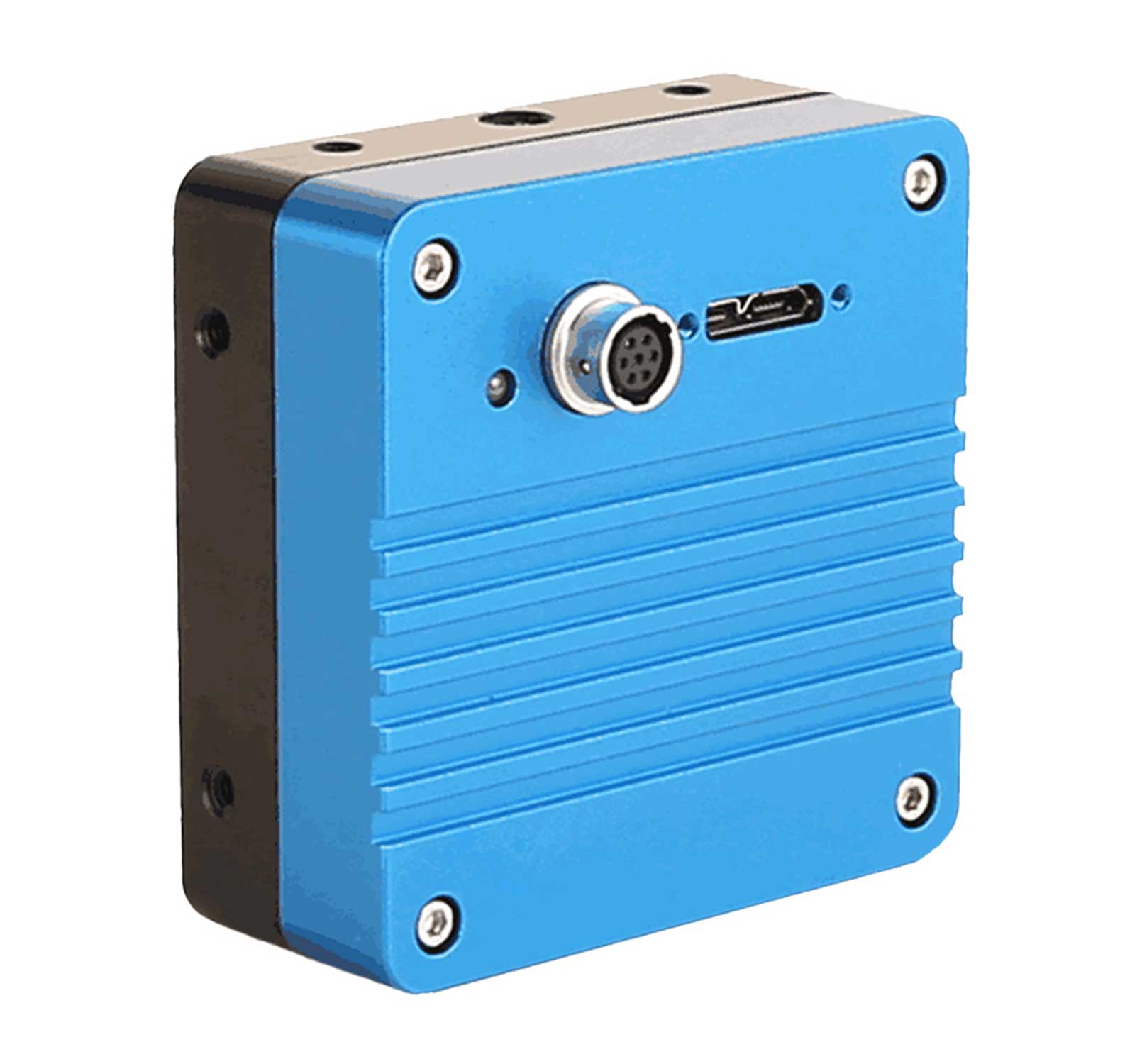

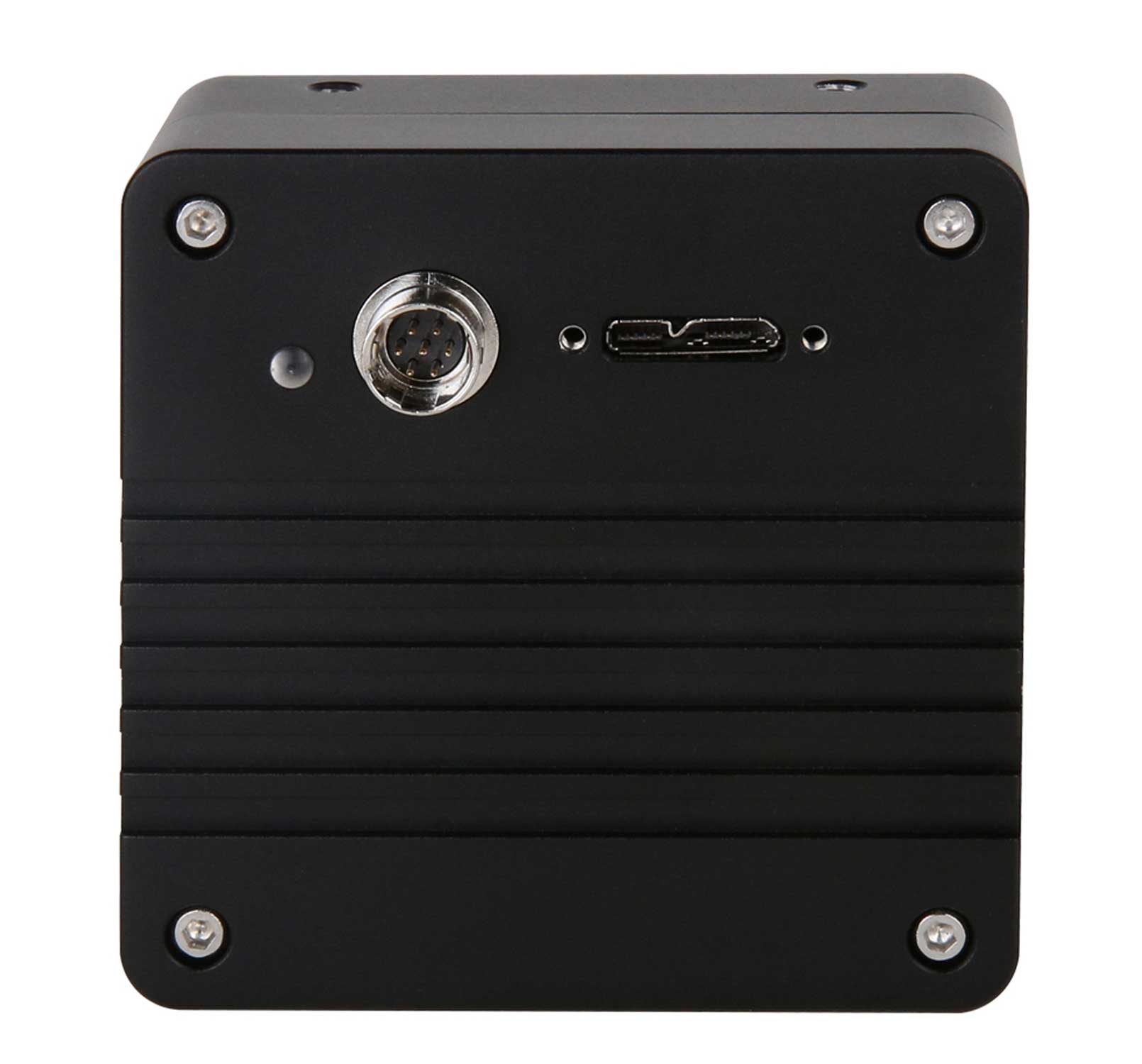

For transmission and synchronization, ProCAM primarily uses USB3.0 for real-time acquisition, with some models providing 10GigE for long-distance and high-bandwidth transmission. The camera body is equipped with 7-Pin I/O (optically isolated input/output + configurable GPIO), facilitating coordination with trigger sources, light sources, motion control and other peripherals.
The software ecosystem is comprehensive, including ToupView software and cross-platform SDK (Windows / Linux / macOS), compatible with DirectShow / TWAIN and other third-party interfaces for secondary development and system integration
| Model | Pixels | Sensor Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
Exposure Time | Sensitivity |
|---|---|---|---|---|---|---|
| ProCAM HST-1.5C | 1.5MP (Colour/mono) |
1/2.6" (4.97mmX3.73mm) |
3.45µmX3.45µm | 1440×1080:235.5FPS 720×540:523FPS Any Area (ROI) |
6µs~60s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-1.5M | 1.5MP (Mono) |
1/2.6" (4.97mmX3.73mm) |
3.45µmX3.45µm | 1440×1080:235.5FPS 720×540:523FPS Any Area (ROI) |
6µs~60s | 1830mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-2 | 2MP (Colour) |
1/2" (7.2mmX4.05mm) |
3.75µmX3.75µm | 1920x1080:125FPS Any Area (ROI) |
0.1ms~15s | 2350mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-2.1 | 2.1MP (Colour) |
1/1.2" (11.14mmX6.26mm) |
5.8µmX5.8µm | 1920x1080: 96FPS Any Area (ROI) |
14us~15s | 8935mv with 1/30s 0.6mv with 1/30s |
| ProCAM HSTC-2.3 | 2.3MP (Colour/mono) |
1/1.9" (7.20mmX4.50mm) |
3.75µmX3.75µm | 1920x1200: 38FPS 960x600: 66FPS Any Area (ROI) |
0.244ms~2000ms | 1120mv with 1/30s |
| ProCAM HST-2.3 | 2.3MP (Colour/mono) |
1/1.2" (11.25mmX7.03mm) |
5.86µmX5.86µm | 1920X1200: 30FPS 1920X1080: 65FPS Any Area (ROI) |
0.244ms~2000ms | 1016mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-3.1/3.0 | 3.1MP (Colour/mono) |
1/1.8" | 3.45µmX3.45µm | 2112x1584: 60FPS 1024x768: 85FPS Any Area (ROI) |
0.1ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-3.5 | 3.5MP (Colour/mono) |
1/2.5" | 2.60µmX2.60µm | 2304x1536: 40FPS 1152x768: 40FPS Any Area (ROI) |
25µs~2s | 3.0V/lux-sec |
| ProCAM HST-5 | 5.0MP (Colour/mono) |
2/3" | 3.45µmX3.45µm | 2448x2048: 36FPS 1224x1024: 50FPS Any Area (ROI) |
0.1ms~30s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5M | 5.0MP (Monochrome) |
2/3" | 3.45µmX3.45µm | 2448x2048: 15FPS 1224x1024: 60FPS Any Area (ROI) |
0.1ms~60s | 915mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5A | 5.1MP (Colour/mono) |
1/2.8" | 2.0µmX2.0µm | 2592x1944: 20FPS 1296x972: 40FPS Any Area (ROI) |
0.1ms~2000ms | 505mV 70dB 43dB |
| ProCAM HST-5.1 | 5.1MP (Colour/mono) |
2/3" | 3.45µmX3.45µm | 2592x1944: 30FPS 2464x2056: 36FPS 2048x2048: 36FPS 1920x1080: 67FPS 1536x1024: 68FPS 1024x1024: 70FPS 640x480: 30FPS 512x512: 136FPS 128x128: 456FPS Any Area (ROI) |
0.1ms~60s | 915mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5.1A | 5.1MP (Colour/mono) |
1/1.8" | 2.74µmX2.74µm | 2448x2048: 63FPS 1224x1024: 208.4FPS Any Area (ROI) |
0.03ms~15s | 1337mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5.1B | 5.1MP (Colour/mono) |
1/1.8" | 3.45µmX3.45µm | 2448x2048: 75FPS 1224x1024: 208.4FPS Any Area (ROI) |
0.03ms~15s | 1337mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-5.9 | 5.9MP (Colour/mono) |
1/1.8" (6.91mmX4.92mm) |
2.4µmX2.4µm | 2880x2048: 15FPS 1440x1024: 30FPS Any Area (ROI) |
100µs~30sec. | 425mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-6 | 6.3MP (Colour/mono) |
1/1.8" (7.37mmX4.92mm) |
2.4µmX2.4µm | 3072x2048: 59FPS 2560x1920: 59FPS 1920x1080: 60FPS 1536x1024: 59FPS 1440x1024: 59FPS 640X480: 70FPS Any Area (ROI) |
13µs~30s | 425mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8 | 8.3MP Colour |
1/1.8" (7.68mmX4.32mm) |
2.0µmX2.0µm | 3840x2160: 35FPS 1920x1080: 65FPS Any Area (ROI) |
0.02ms~15s | 505mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8A | 8.3MP Colour/Mono |
1/1.2" (11.14mmX6.26mm) |
2.9µmX2.9µm | 3840x2160: 45FPS 1920x1080: 70FPS Any Area (ROI) |
0.02ms~15s | 2188mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-8D | 8.3MP Colour/Mono |
1/2.5" (6.22mmx3.50mm) |
1.62µmx1.62µm | 3840x2160: 32FPS 1920x1080: 65FPS Any Area (ROI) |
0.244ms~15s | 236mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-8L | 8.0MP Colour |
1.15" (13.00mmX13.00mm) |
4.63µmX4.63µm | 2808x2808: 30FPS(14bit) 1392x1392: 139FPS 696x696: 139FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.12mv with 1/30s |
| ProCAM HST-8.5 | 8.5MP Colour |
1/2.4" (5.16mmX3.95mm) |
1.55µmX1.55µm | 3328x2548: 10FPS 1664x1272: 56FPS |
0.1ms~2000ms | 250mv with 1/30s 0.25mv with 1/30s |
| ProCAM HST-9 | 9.0MP Colour |
1" (11.31mmX11.28mm) |
3.76µmX3.76µm | 3008x3000: 40FPS 1488x1500: 123FPS 992x998: 186FPS Any Area (ROI) |
0.1ms~15s | 535mv with 1/30s 0.04mv with 1/30s |
| ProCAM HST-9A | 9.0MP Colour |
1" (14.13mmX7.45mm) |
3.76µmX3.76µm | 4100x2160: 34FPS 3840x2160: 34FPS 2048x1080: 64FPS Any Area (ROI) |
0.03ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-9B | 9.0MP Colour |
1" (11.31mmX11.28mm) |
3.45µmX3.45µm | 3840x2160: 32FPS 1920x1080: 64FPS Any Area (ROI) |
0.02ms~15s | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-10 | 10MP (Colour/mono) |
1/2.3" (5.98mmX4.58mm) |
1.67µmX1.67µm | 3584x2748: 7.2FPS 1920x1080: 15FPS 1792x1372: 25FPS 896x684: 30FPS Any Area (ROI) |
0.3ms~2000ms | 0.34v/lux-sec at 550nm |
| ProCAM HST-10A | 10MP (Colour/mono) |
1/2.3" (5.68mmX4.26mm) |
1.5µmX1.5µm | 3664x2748: 8.5FPS 2048x1536: 20.8FPS 1920x1200: 30FPS 1832x1374: 49FPS 912x686: 137FPS Any Area (ROI) |
0.1ms~2000ms | 250mv with 1/30s 0.25mv with 1/30s |
| ProCAM HST-12 | 12MP (Colour/mono) |
1/1.7" | 1.85µmX1.85µm | 4000x3000: 7.1FPS 3000x2000: 28FPS 2048x1080: 30FPS Any Area (ROI) |
0.1ms~2000ms | 280mv with 1/30s 0.1mv with 1/30s |
| ProCAM HSTF-12 | 12MP (Colour/mono) |
1/1.7" | 1.85µmX1.85µm | 4000x3000: 30FPS 2048x1080: 50FPS Any Area (ROI) |
0.1ms~15s | 280mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-12.3 | 12.3MP (Colour/mono) |
1.1" (14.13mmx10.35mm), 17.5mm diagonal | 3.45µmX3.45µm | 4096x3008: 24FPS 2048x1504: 52FPS Any Area (ROI) |
100µs~15sec | 1146mv with 1/30s 0.15mv with 1/30s |
| ProCAM HST-14 | 14MP (Colour) |
1/2.3" | 1.4µmX1.4µm | 4096x3288: 6.2FPS 2048x1644: 20.8FPS 1920x1080: 31FPS 1024x822: 53.3FPS Any Area (ROI) |
0.4ms~2000ms | 0.724v/lux-sec |
| ProCAM HST-16 | 16MP (Colour/mono) |
1/2.33" | 1.33µmX1.33µm | 4648x3506: 10FPS 2304x1750: 15.0FPS 1536x1168: 28.0FPS Any Area (ROI): 50FPS at ROI |
100µ-30s | 0.53 V/lux-sec |
| ProCAM HST-LD 16 | 16MP (Colour) |
4/3" | 3.85µmx3.85µm | 4648x3506: 22FPS 2304x1750: 43FPS 1536x1168: 49FPS Any Area (ROI) |
0.2ms~15s | 0.53 V/lux-sec |
| ProCAM HST-18 | 18MP (Colour/mono) |
1/2.3" (6.14mm x 4.61mm) |
1.25µmX1.25µm | 4912x3684: 5.6FPS 2456x1842: 18.1FPS 1920x1080: 31FPS 1228x922: 32.2FPS Any Area (ROI) |
10µs~2 Sec | 0.62 V/lux-sec |
| ProCAM HSTF-18 | 18MP (Colour) |
1/2.2" (5.86mmX4.46mm) |
1.25µmX1.25µm | 4880x3720: 17FPS 2448x1836: 40FPS 1728x1296: 55FPS Any Area (ROI) |
22µs~15s | 130mv with 1/30s 0.10mv with 1/30s |
| ProCAM HST-20 | 20MP (Colour/mono) |
1" (13.06mmX8.76mm) |
2.4µmX2.4µm | 5440x3648:15FPS 4912x3684: 20FPS 3840x2160: 25FPS 2736x1824: 50FPS 3072x2048: 59FPS 1824x1216: 60FPS 1920x1080: 64FPS Any Area (ROI) |
22µs~30s | 462mv with 1/30s 0.21mv with 1/30s |
| ProCAM HST-21 | 21MP (Colour) |
4/3" (17.40mmX13.00mm) |
3.3µmX3.3µm | 5280x3954: 17FPS 3952x3952: 17FPS 2640x1976: 56FPS 1760x1316: 67FPS 584x438: 192FPS Any Area (ROI) |
0.1ms~15s | 399mv with 1/30s 0.1mv with 1/30s |
| ProCAM HST-25 | 25MP (Colour) |
1/2.3" (5.5mm x 5.5mm) |
1.12µmX1.12µm | 4928x4928: 12FPS 2464x2464: 46FPS 1648x1648: 100FPS Any Area (ROI) |
0.013ms~15s | 96.3mv@1/30s 0.1mv with 1/30s |
| ProCAM HST-32 | 32MP (Colour) |
1.1" (12.96mmX12.96mm) |
2.3µmX2.3µm | 6144x3456: 8FPS 5600x5600: 8.1FPS 2800x2800: 30.0FPS 1400x1400: 30.0FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.03mv with 1/30s |
| ProCAM HST-45 | 45MP (Colour) |
1.4" ((18.93mmX13.00mm) |
2.3µmX2.3µm | 8176x5616: 8.1FPS 4088x2808: 30.0FPS 7408x5556: 8.1FPS 4088x2808: 33.0FPS 8176x4320: 10.4FPS 4096x2160: 34.7FPS 2048x1080: 62.5FPS 1360x720: 86.5FPS Any Area (ROI) |
0.1ms~15s | 419mv with 1/30s 0.03mv with 1/30s |
| Gain | Upto 25X | |||||
| Dynamic Range | 72dB | |||||
| Full Well Capacity | 14000e | |||||
| SN Ratio | 46dB | |||||
| Binning | 1x1, 2x2, 3x3, 4x4 | |||||
| Capture/Control API | Native C/C++, C#/VB.NET, Directshow, Twain, Labview, SDK | |||||
| Cooling | Natural/Peltier fan/passive cooling (optional) | |||||
| IR Filter Range | 380-650nm (IR Cut) | |||||
| Spectral Range(nm) | 380 nm ~ 720nm (with infrared filter) | |||||
| Shutter | Electronic rolling shutter (Global shutter optional) | |||||
| Image Data Format | 12 bit RAW Format (12x3=36 bit RGB) color filter RGB bayer | |||||
| Shading | Manual/Auto | |||||
| AD Conversion | 8/12bit | |||||
| Operating Mode | Continuous output | |||||
| Scanning Mode | Progressive Scan | |||||
| Exposure Control | Manual/Auto/Area | |||||
| White Balance | Manual/One time/Auto/Area | |||||
| Image Processing | GAMMA/Contrast/Black Level/Noise Reduction/3D Noise Reduction/Hue Wheel variation/Sharpness/Saturation | |||||
| Quantum Efficiency | Upto 90% at 500nm | |||||
| Picture Format | JPEG/BMP/PNG/RAW/TIFF | |||||
| Software interface | Radical ProCAM Software | |||||
| Operating System | Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux | |||||
| Data Interface | USB 3/3.1/3.2 (B Type) | |||||
| Lens Mount | C-mount | |||||
| Dimensions/Weight | 68 mm × 68 mm × 28.1 mm/Approx. 219g | |||||
| Power Supply | USB3.0 bus power / DC 12 V power | |||||
| Temp./Humidity | -10 °C ~ +50 °C / 20%~80% non-condensing | |||||
| Storage/Humidity | -30 °C ~ +70 °C / TBD | |||||
| ISO Sensitivity | ISO 50 to ISO 3200 | |||||
