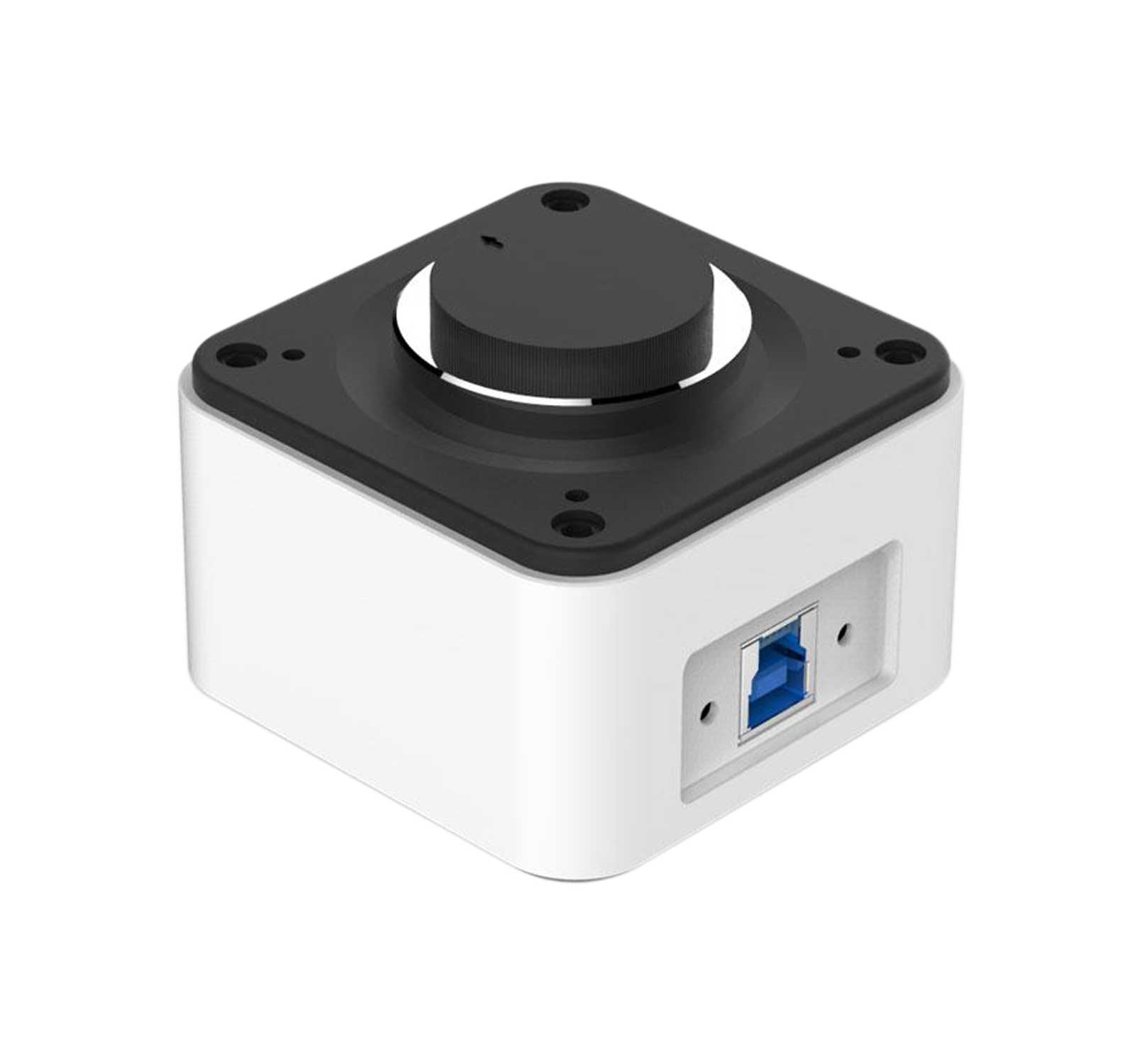

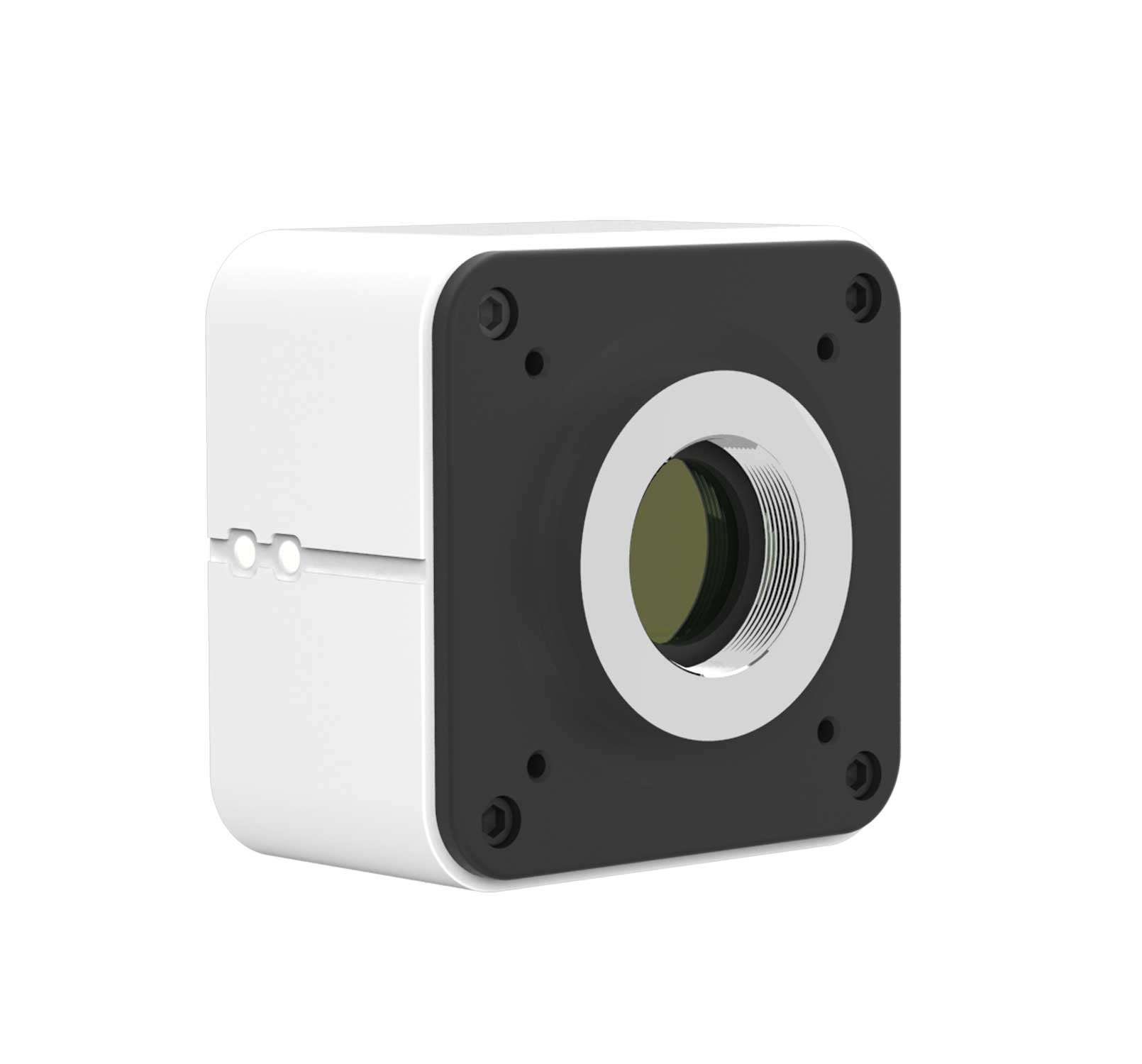

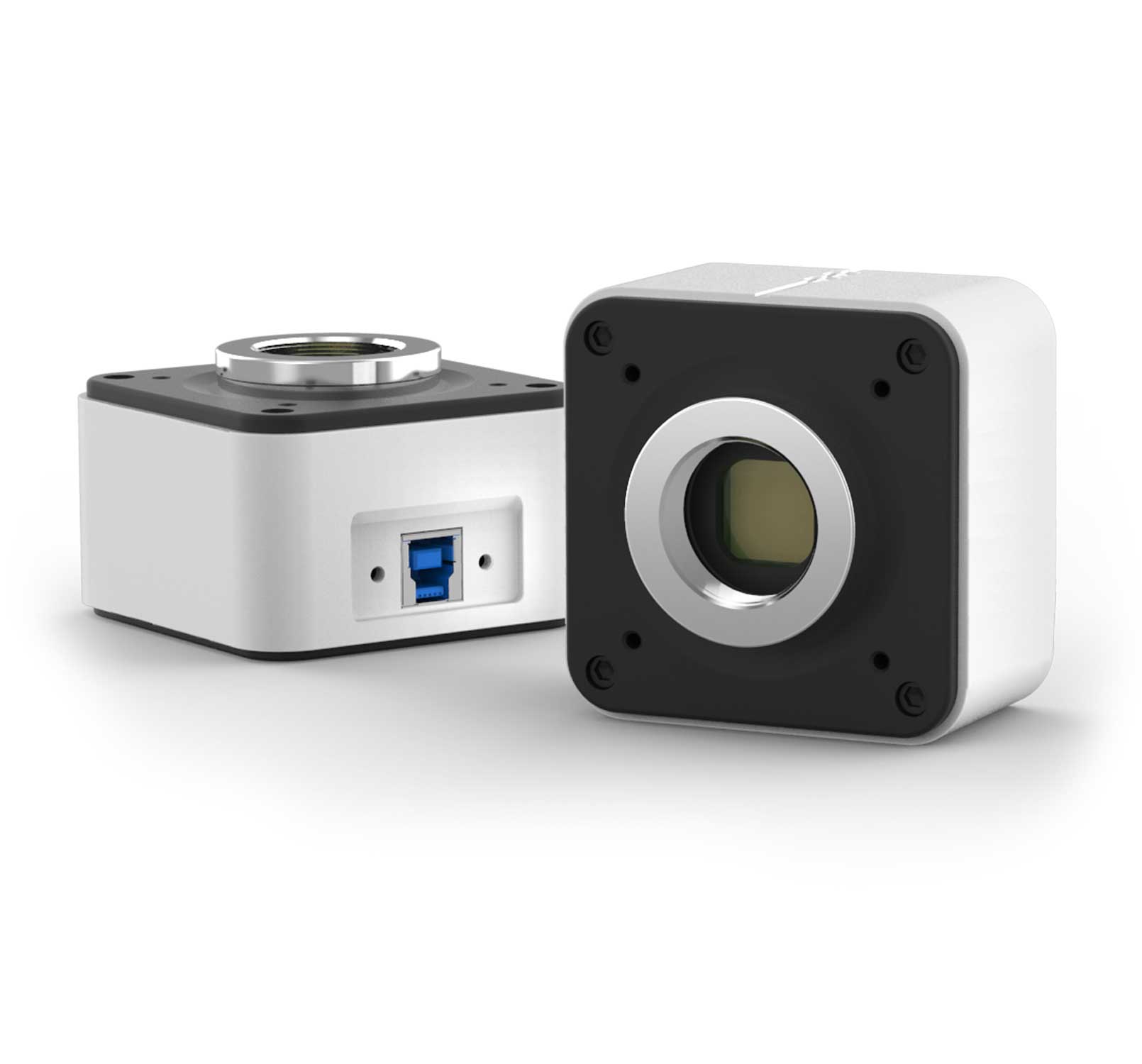

CMOS MI Series
New High speed technology provides an improvement in live image speed of high-resolution cameras. The user is enabled to facilitate precise focusing and very easy positioning of specimens without interlace effects – a clear advantage in the analysis of moving objects and for optimal task management in laboratories. Easy connection and data transfer is ensured by USB 3 interface.
• Outstanding live image speed
• Excellent image quality and high resolution
• Perfect color reproduction
• Real-time depth of field fusion (Option)
• Real-time image stitching (Option)
• Real-time fluorescence image synthesis and editing
| Model | ProCAM-CMOS MI-5 | ProCAM-CMOS MI-6 | ProCAM-CMOS MI-20 |
|---|---|---|---|
| Sensor Size | 2/3" (Colour) | 1/1.8" (Colour) | 1" (Colour) |
| Pixel Size | 3.45μm x 3.45μm | 2.4μm x 2.4μm | |
| Resolution/Frame Rate (Live, Capture & Record) |
2448x2048 : 35FPS 1224x1024 : 88FPS |
3072x2048 : 41FPS 1536x1024 : 41FPS |
5472x3648 : 15FPS 2736x1824 : 53FPS 1824x1216 : 67FPS |
| Shutter Mode | Global | Rolling | |
| Binning | 2x2, 3x3 | ||
| Exposure Time | 0.13ms-15s | ||
| Automatic Set | Exposure, Color Scale, White Balance | ||
| Manually Set | Exposure, Gain, Noise Reduction, Gamma,Flat Field Correction | ||
| Colour Temp. | 2000-15000K | ||
| ADC Depth | 12Bit | ||
| Picture Format | JPG/PNG/TIFF | ||
| Operating System | Windows 7/8/10/11 32/64 bit, is supported and Linux/Mac is under development | ||
| Multiple Cameras | Supports 4 Cameras Simultaneously in SDK | ||
| Data Interface | USB3.0 | ||
| Optical Interface | Standard C Mount | ||
| Camera Size | 68x68x46mm | ||
| Camera Weight | 330g | ||
