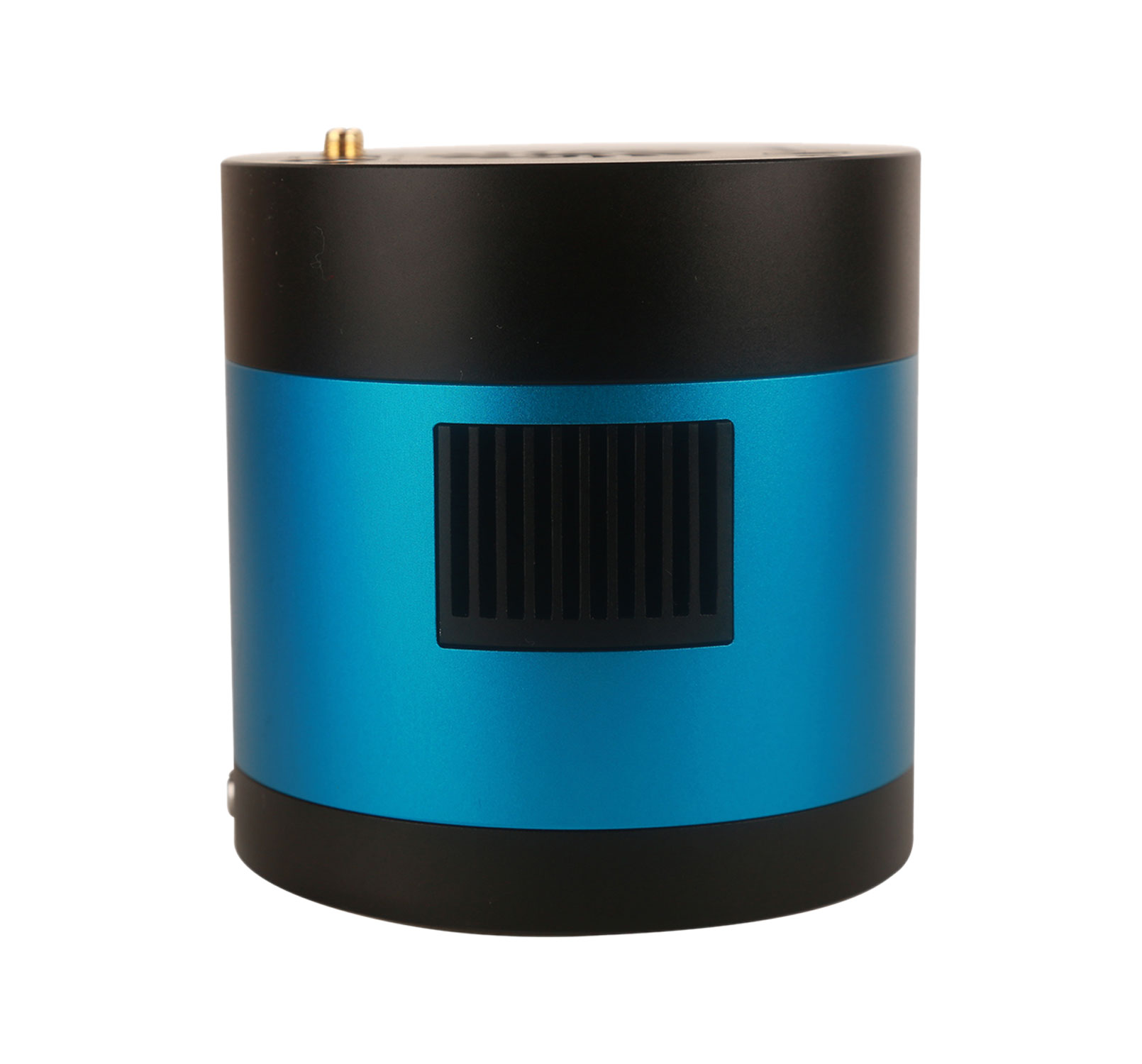

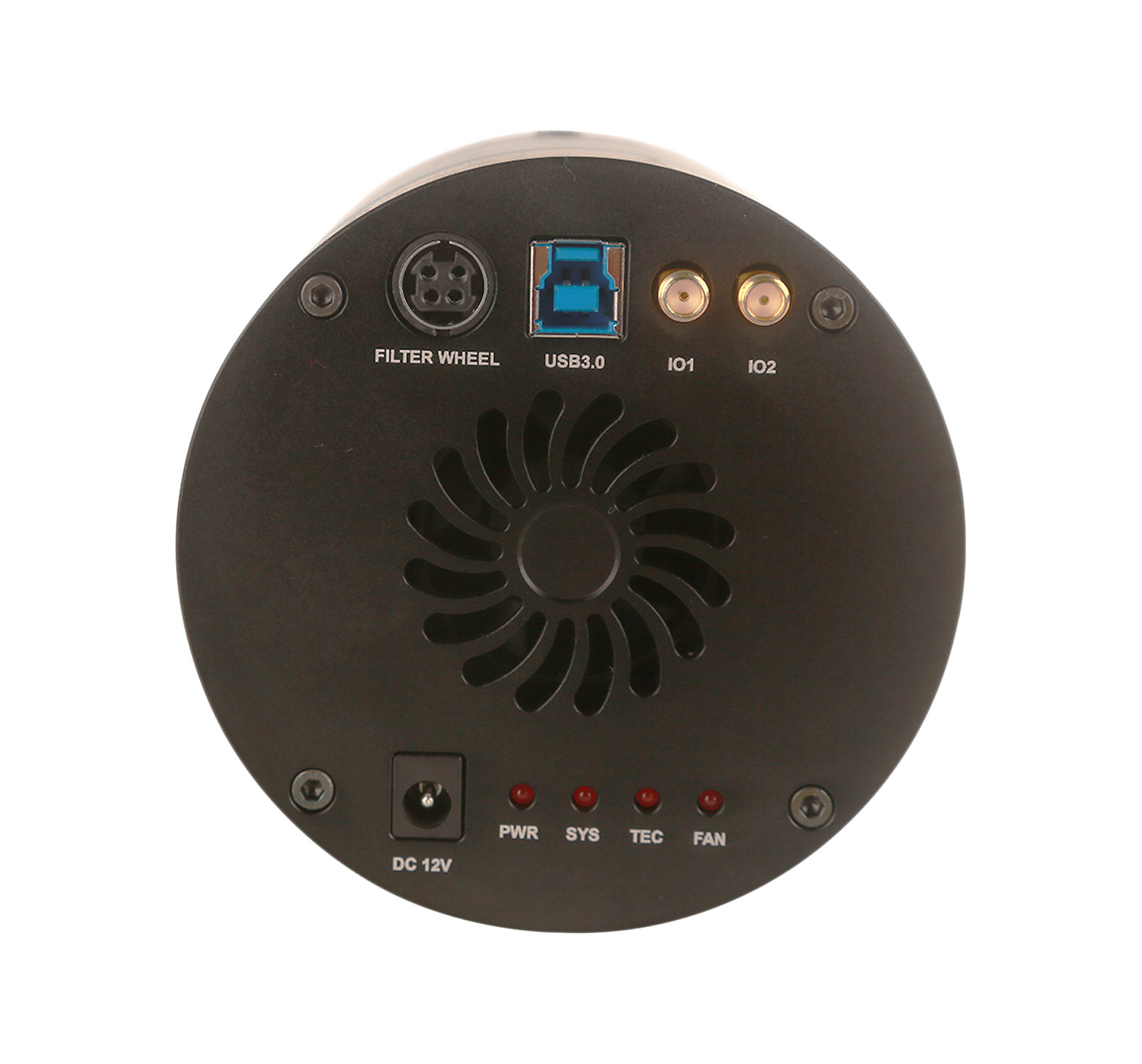

TEC CCD CB-16MP Cameras
The ProCAM TEC CCD is an Microscope Temperature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.
The ProCAM TEC CCD comes with advanced video & image processing application software. Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The ProCAM TEC CCD can be widely used in low light environment and microscope fluorescence image capture and analysis.
| Model | ProCAM CB-16MP |
|---|---|
| Pixels | 16MP |
| Sensor & Size | 1" |
| Light-Sensitive Pixels | 4 million; 2048x2048 |
| Binning Modes | 2x2, 4x4, 8x8 |
| ROI (Region of Interest) | From 1x1 pixels up to full resolution, continuously variable in single-pixel increments |
| Exposure/Integration Control | 10μs to 3600s in 1μs increments |
| Sensor Type | progressive-scan interline CCD (monochrome) |
| Pixel Size | 7.4μm x 7.4μm |
| Linear Full Well | 18,000e-(22,000e-with 2x2 binning) |
| External Sync & Trigger | Tight synchronization with flashlamps, automated filters, shutters, & microscope stages |
| Read Noise | 12e- (at 20MHz) |
| Dark Current | 0.15e-/pix/s (cooled) |
| Cooling Technology | Three-stage Peltier cooling with all-metal, hermetic-vacuum-sealed chamber assembled in a Class 10,000 cleanroom |
| Cooling Type | Down to -45 ̊C, regulated, with software control in 1 ̊C increments |
| Digital Output | 12 /14bits |
| Readout Frequency | 20, 10, 5MHz |
| Resolution/Frame Rate (Live, Capture & Record) |
15FPS full resolution @ 12 bits, 2304x1750:40FPS (165FPS maximum with binning and ROI functions) |
| HPR Technology | Offers unbeatable performance in terms of dark current and generation of hot pixels |
| Black-Out Mode | Turns all camera lights off to reduce light reflection during low-light applications; software controlled |
| Computer Platforms/ Operating Systems | Windows 7/8.1/10/11 (32/64 bit) |
| Digital Interface | IEEE 1394 FireWire |
| External Trigger | TTL Input (optically coupled) |
| Trigger Types | Internal, Software, External |
| External Sync | TTL Output (optically coupled) |
| Gain Control | 0.493 to 23.5 times |
| Offset Control | -2048 to 2047 |
| Optical Interface | F-mount optical format; aspect ratio 1:1 |
| Threadmount | 1/4" – 20 mount |
| Power Requirements | 30W, 12–24VDC |
| Weight | 1.180kg |
| Warranty | 2 years |
| Operating Environment | 0 to 40 ̊C |
| Storage Temperature | 0 to 50 ̊C |
| Humidity | Less than 80% relative humidity |
