TEC CMOS Cameras

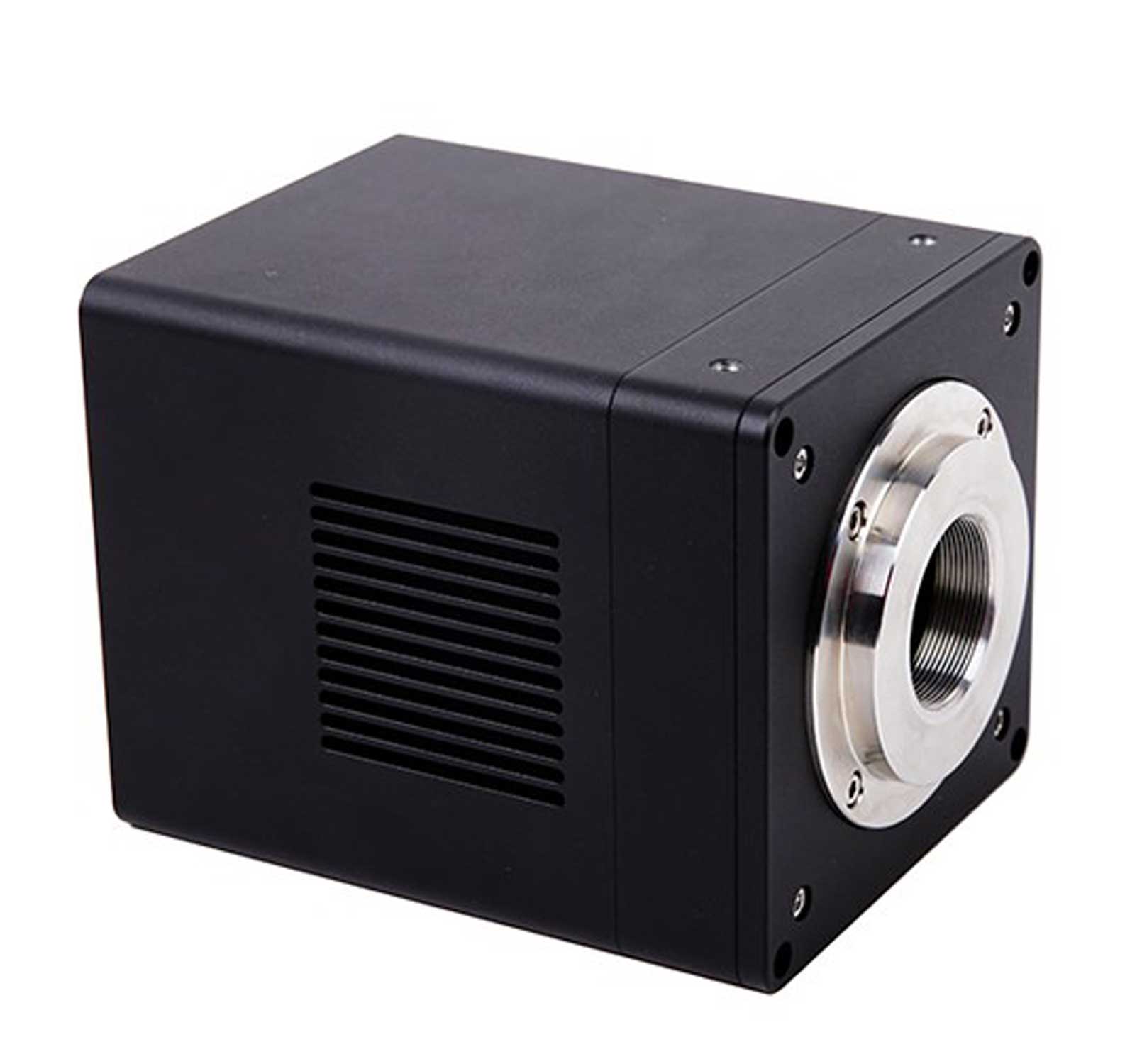

The ProCAM TEC adopt SONY cooled back illuminated CMOS Sensor as the image-picking device and USB3.0 is used as the transfer interface. Hardware resolutions range from 1.7M to 26M and come with the integrated CNC aluminium alloy compact housing.
With the two-stage peltier cooling sensor chip to -45° below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
ProCAM TEC comes with advanced video & image processing application software, providing Windows/Linux/ OSX multiple platforms SDK, Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The ProCAM TEC can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as in dark field, phase contrast etc.

  • Standard C-Mount camera with SONY Exmor CMOS sensors from 1.7M to 26M.
  • Two-stage TE-cooling with controllable electric fan.
  • Sensor chip cooling up to 45°C below ambient temperature.
  • Working temperature can be regulated to specified temperature in 5 minutes.
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem.
  • IR-CUT/AR coated windows.
  • Up to 1 hour long time exposure.
  • USB3.0 5Gbit/second interface ensuring high speed data transmission.
  • Ultra-FineTM colour engine with perfect colour reproduction capability.
  • With advanced video & image processing application software.
  • Support both video and trigger modes.
  • Providing Windows/Linux/Mac OS multiple platforms SDK.
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.

  • Model Pixels Sensor & Size Pixel Size Resolution/Frame Rate
    (Live, Capture & Record)
    G Sensitivity
    Dark Signal
    Exposure
    ProCAM C-1.7MP 1.7MP
    (Colour/Mono)
    CMOS
    1.1"
    (14.4x9.9mm)
    9.0µmX9.0µm 1600x1100:33FPS
    Any ROI
    4910mv with 1/30s
    0.15mv with 1/30s
    0.1ms~3600s
    ProCAM CM-1.7MP 1.7MP
    (Mono) CMOS
    1.1"
    (14.4x9.9mm)
    9.0µmX9.0µm 1600x1100:94FPS
    Any ROI
    8100mv with 1/30s
    0.30mv with 1/30s
    ProCAM C-7MP 7MP
    (Colour/Mono)
    CMOS
    1.1"
    (14.4x9.9mm)
    4.5µmX 4.5µm 3200x2200:14FPS
    1600x1100:33FPS
    Any ROI
    2058mv with 1/30s
    0.15mv with 1/30s
    ProCAM CM-7MP 7MP
    (Mono) CMOS
    1.1"
    (14.4x9.9mm)
    4.5µmX4.5µm 3200x2200:51FPS
    1600x1100:133FPS
    Any ROI
    3354mv with 1/30s
    0.15mv with 1/30s
    ProCAM C-9MP 9.0MP
    (Colour/Mono)
    CMOS
    1"
    (11.28x11.28mm)
    3.76µmX3.76µm 2992x3000:40FPS
    1488x1500:62FPS
    992x998:186FPS
    Any ROI
    534mv with 1/30s
    0.10mv with 1/30s
    27µs~3600s
    ProCAM C-10MP 10.3MP
    (Colour/Mono)
    CMOS
    1.33"
    (17.47x12.86mm)
    4.63µmX4.63µm 3704x2778:7.5FPS
    4096x2160:10FPS
    3072x2048: 32FPS
    2048x1080:60FPS
    1360x720:96FPS
    Any ROI
    419mv with 1/30s
    0.12mv with 1/30s
    0.015ms~3600s
    ProCAM C-12MP 12MP
    (Colour/Mono)
    CMOS
    1"
    (14.13x10.35mm)
    3.45µmX3.45µm 4096x3000:23.4FPS
    2048x1500:46.3FPS
    Any ROI
    1146mv with 1/30s
    0.1mv with 1/30s
    ProCAM C-16MP 16MP
    (Colour/Mono)
    CMOS
    1.65"
    (36x23mm)
    7µmX7µm 4648x3506:6FPS
    2304x1750:20FPS
    1536x1168:48FPS
    1024x1040:48FPS
    Any ROI
    2413LSB
    89.1 LSB
    (Gain=0dB)
    ProCAM CM-16MP 16MP
    (Mono) CMOS
    1.65"
    (36x23mm)
    7µm X7µm 4648x3506:22.5FPS
    2304x1750:43FPS
    1536x1168:48FPS
    Any ROI
    2560LSB
    89.1 LSB
    (Gain=0dB)
    ProCAM C-20MP 20MP
    (Colour/Mono)
    CMOS
    1"
    (13.06x8.76mm)
    2.4µmX2.4µm 5440x3648:6FPS
    4096x2160:10FPS
    2736x1824:15FPS
    2048x1536:20FPS
    1824x1216:30FPS
    1920x1080:60FPS
    Any ROI
    462mv with 1/30s
    0.21mv with 1/30s
    0.1ms~3600s
    ProCAM CM-20MP 20MP
    CMOS(Mono)
    1" (13.06x8.76mm) 2.4µmX2.4µm 5440x3648:17.8FPS
    4096x2160:41FPS
    2736x1824:51FPS
    1824x1216:64FPS
    Any ROI
    388mv with 1/30s
    0.21mv with 1/30s
    20µ~3600s
    ProCAM C-26MP 26MP
    (Colour/Mono)
    CMOS
    1.8"
    (23.48x15.67mm)
    3.76µmX3.76µm 6224x4168:14FPS
    3104x2048:37FPS
    2736x1824:53FPS
    1824x1216:67FPS
    2064x1388:110FPS
    Any ROI
    485mv with 1/30s
    0.07mv with 1/30s
    0.1ms~3600s
    Image Data Format 8/12 bit RAW Format
    Data Interface USB 3.0
    Gain Max. 30
    ADC 16 bit
    Dynamic Range 2000:1
    73.3 dB
    Full Well Capacity 15.000 electrons
    Shutter Global/Rolling shutter
    Dark Noise  <0.05e-/Px/Sec
    Read Out Noise ~6 electrons (10 MHz)
    Binning 1x1, 2x2, 3x3, 4x4
    Quantum Efficiency Upto 80%
    Scanning mode Interlaced Scanning
    Spectral Range 380-720nm (with IR-filter), for Monochromatic Camera, AR Is Used coated, C5000 IR cut filter
    White Balance ROI White Balance/ Manual Temp-Tint Adjustment
    Trigger Mode Available
    HDMi (optional) Port to connect camera directly to HDMi input port of Projector, Screen etc
    GigE (optional)  Port to connect & capture camera through network
    Absolute sensitivity threshold 7.0e-
    Color Rendering Technique Ultra Fine Color Engine, RGB (Bayer)
    Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
    Recording System Still Picture and Movie
    Cooling System* Two-stage Thermo electric-cooling System -45 °C below Camera Body Temperature
    Operating Temp. -10°C~ 50°C
    Storage Temp. -20°C~ 60°C
    Operating Humi. 30~80%RH
    Lens Mount C/CS/F Mount
    Storage Humidity 10~60%RH
    Power Supply DC 5V over PC USB Port, External Power Adapter for Cooling System, DC12V,3A
    Operating System Support Microsoft Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux, RGB Bayer color filter mask
    Minimum PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 2GB or More, USB port: USB2.0 High-speed Port, Display: 17" or Larger, CD-ROM

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
