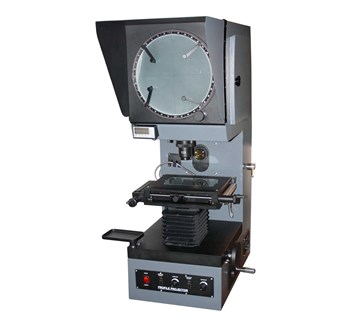

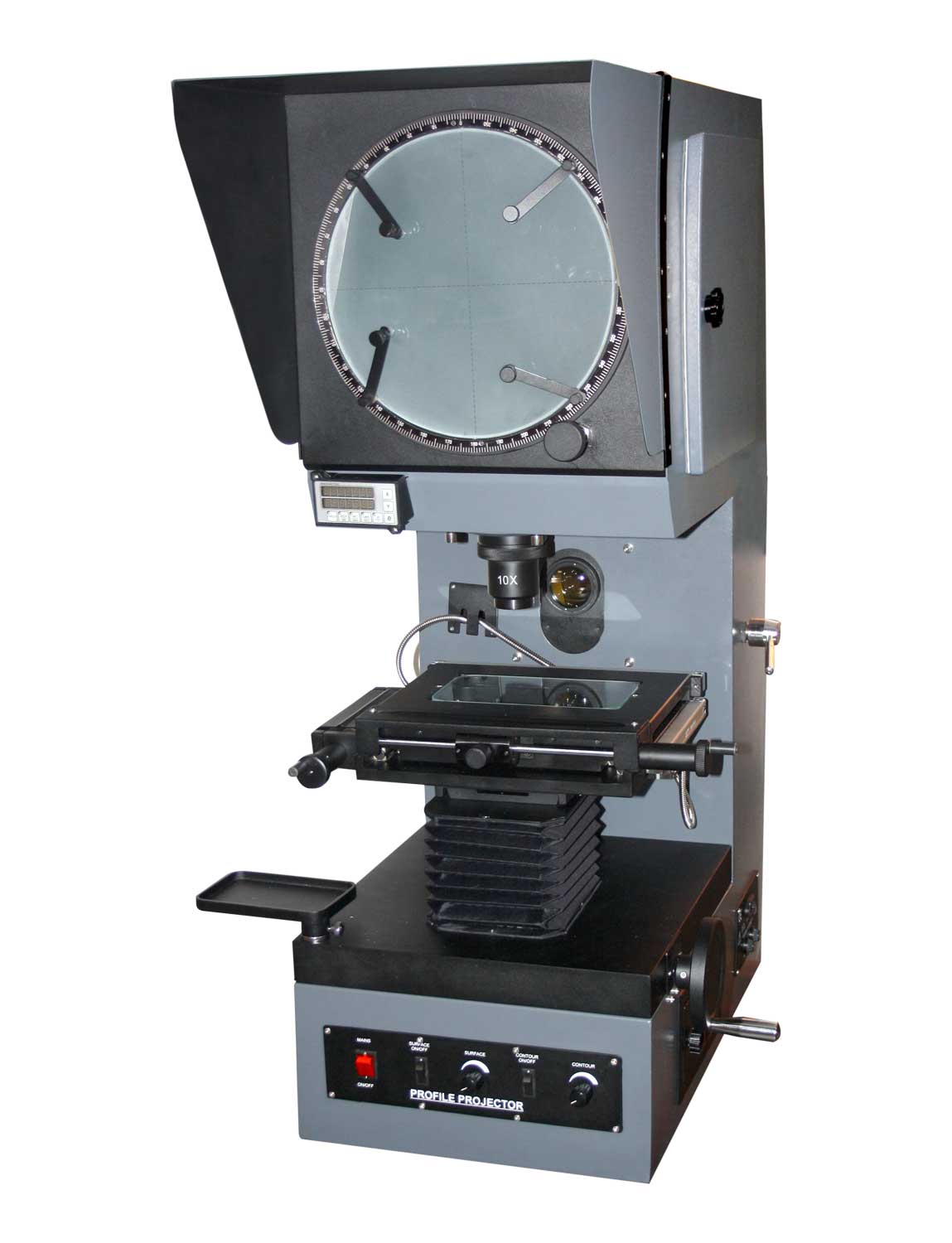

Coaxial Profile Projector
RPP-3000
Profile projector with coaxial surface illumination are used, where the prime observation/ measurement requirement are of surface deep cavity etc.
Coaxial surface illumination – An illumination method whereby a work piece is illuminated by light transmitted coaxially through the objective lens for the observation/ measurement of the surface.
| Screen | Antiglare hard glass screen, graduated & rotatable through 360° having least count 1 minute of an arc. |
|---|---|
| Mirrors | Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen. |
| Contour Illumination | Contour Illumination is provided with a 24V/150W halogen lamp having a built in condenser system. |
| Coaxial Illumination | Work piece is illuminated by light transmitted coaxially through the objective lens, for observation/ measurement of surface deep cavities. |
| Electrical | Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse. |
| Accuracy | Projection accuracy ± 0.1% for contour illumination and ± 0.15% for surface illumination. |
| Screen Size | 300mm |
| Lenses | 10x Objective (Standard) |
| Model No. | RPP-3000 | RPP-3000DM | RPP-3000DR | RPP-3000DRS | RPP-3000DP | RPP-3000DPSW |
|---|---|---|---|---|---|---|
| X-Y Range | 25x25 mm. | 25x25 mm. | 200x100 mm. | |||
| Effective Table Area | 125x125 mm. | 125x125mm. | 275x180mm. | |||
| Measuring Unit | Micrometer Heads* | Digimatic Micrometer Heads* | Built-in Linear Scales | |||
| Resolution | 0.01mm. | 0.001mm. | 0.001mm/0.00005" | |||
| Digital X-Y Counter | No | No | Yes | |||
| Digital Angle Counter | No | No | Yes | |||
| Optical Edge Detector | No | No | No | No | Optional | Optional |
| Rotary Measuring Stage | Yes, Stage Glass Dia. 70mm. | Yes, Stage Glass Dia. 70mm. | Optional | |||
| Table Type Size | Al. 150x150mm. | Al. 150x150mm. | Al. 300x200mm. | |||
| Maximum Workpiece Height | 125 mm. | 125mm. | 115mm. | |||
| RPP Software | No | No | No | No | Yes (Basic) | Yes (Quick Measuring) |
| Dimensions / Weight | 45x82x112 cms./ 75 Kgs.. | |||||
| Contour Illumination | Surface Illumination | |||||||
| Magnification /Objective | 10x | 20x | 50x | 100x | 10x | 20x | 50x | 100x |
|---|---|---|---|---|---|---|---|---|
| Field of View, Diameter | 30mm | 15mm | 6mm | 3mm | 30mm | 15mm | 6mm | 3mm |
| Working Distance | 90mm | 65mm | 40mm | 30mm | 90mm | 65mm | 40mm | 30mm |
Range Of Accessories
Over Lay Chart
|
Swivel Center Support
|
V-Block With Clamp
|
Edge detector
|
Foot switch
|
fixture
|
Holder with clamp
|
D.R.O
|
Data Processor
|
