Vertical Profile Projectors
We are highly engaged to provide the premium quality range of Profile Projector to our valuable clients. Offered projector is an optical instrument widely used to enlarge and project a work piece onto the screen with accurate magnification.
Frequently Asked Questions — Vertical Profile Projectors
- What is a vertical profile projector?
- A vertical profile projector uses a vertical optical beam to project an enlarged silhouette of a workpiece onto a screen. The workpiece is placed on a horizontal stage below the optical column, making it easy to load and position parts for dimensional inspection and contour measurement.
- What is the difference between floor-type and benchtop vertical profile projectors?

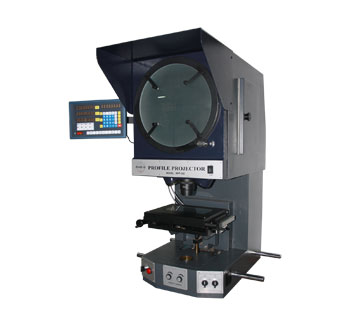

- Floor-type profile projectors have a larger screen (500–600 mm) and wider measuring range for heavy production environments. Benchtop models are compact with a smaller screen (300–400 mm), ideal for workshops and laboratories with limited floor space.
- What magnification levels are available on vertical profile projectors?
- Radical Scientific vertical profile projectors offer magnification from 10× to 100×, with telecentric zoom or fixed lens systems depending on the RPP model series.
- Which industries use vertical profile projectors?
- Vertical profile projectors are used in automotive manufacturing, aerospace inspection, gear and thread gauging, precision tool making, stamping quality control, and medical device inspection.
