RPP-60DPSW Series

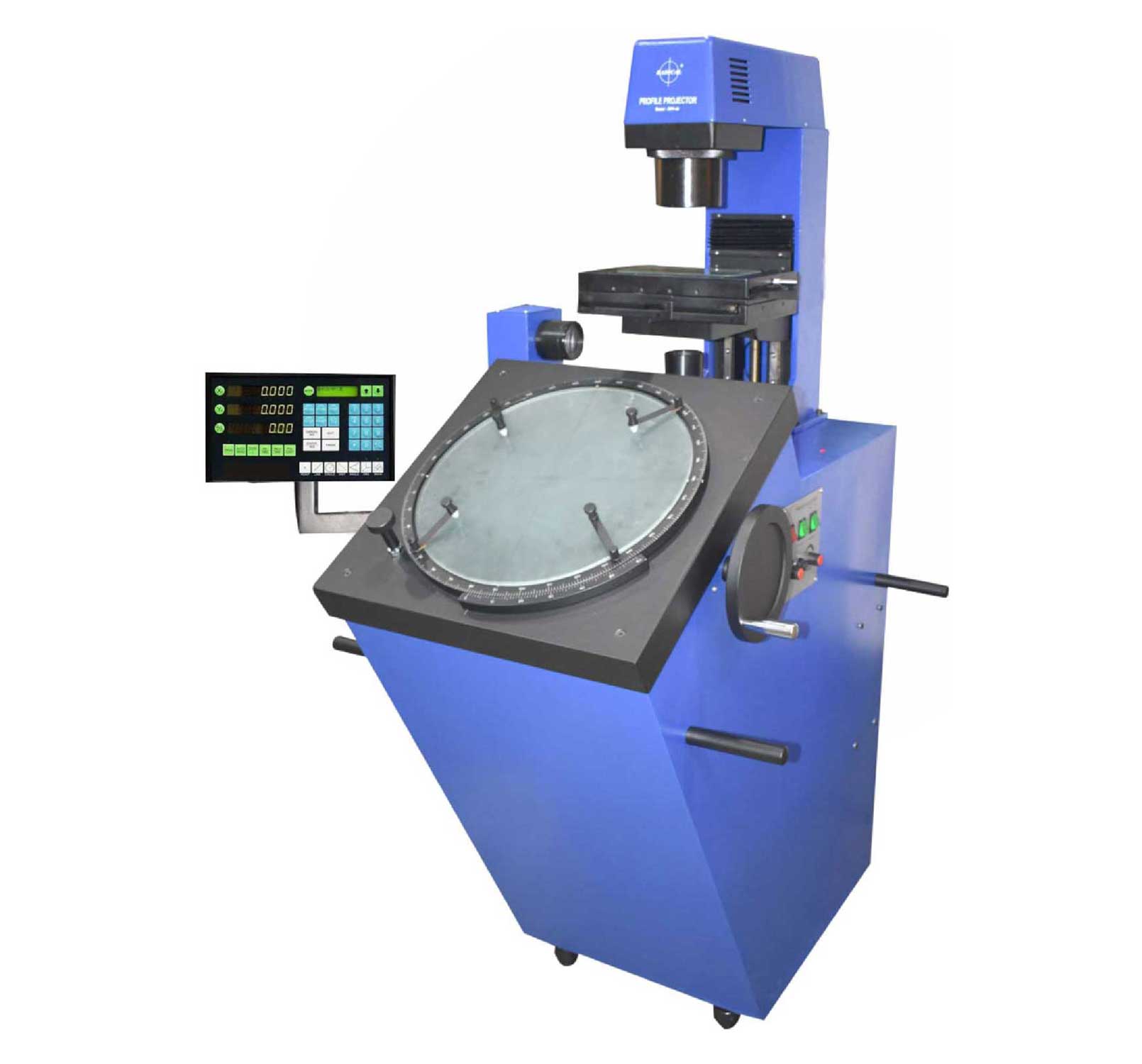

RADICAL Profile Projector Model RPP- 60DPSW designed to facilitate High Contrast Contour and Surface Measurements of relatively large objects ensuring high accuracy in dimensional measurements, surface inspection to meet the critical demands of industries. The versatility of these models lie in sharp, crisp, brilliant and well defined magnified images suitable for edge to edge inspection and measurements. The Projectors are having an inclined, unobstructed screen in front, allowing close examination and comfortable viewing position. The cross travel stage with large working area offers high precision in straightness for each axis movement and in squareness for cross travel. The stage moves smoothly on the linear bearings.
Applications
- Quality Control & Inspection
- Tool and Die Making
- Measurement and Metrology
- Reverse Engineering
- Research and Development
- Manufacturing Assembly
- Educational and Training Purposes
| Screen | Antiglare fine ground screen of dia 600mm having 90° solid cross lines. Screen is rotatable through 360° having least count 1 minute of an arc. provided with four clips to hold overlay charts and drawings |
|---|---|
| Mirror | Optically true with surface hard coated to ensure optimum light reflection for best image contrast, long life and edge to edge sharpness on the projection screen. |
| Work Stage | Precision thread-less aluminum stage of size 350x250mm having X-Y movement range of 250x150mm with built-in linear scales of least count 0.001mm. The circular graduated scale is divided into 360° in steps of one degree with vernier reading to 1 minute. Life long smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides. |
| Rotary Stage | Rotary Stage of Diameter 100mm or 200mm |
| Lens | Projection Lens 10x Standard. 5x, 20x & 50x are available optionally with suitable condensers. |
| Turret | 3 Position Turret to Mount 3 Lenses |
| Contour illumination | Contour illumination is provided with a 24V/150W halogen lamp having a Illumination built in condenser system. The illumination can be adjusted through a solid state transformer. |
| Accuracy | Projection accuracy 0.1% for contour illumination and 0.1% for surface illumination. |
| Electrical | Mains input 220-240 volts AC having built in transformers, On-Off Switch, variable intensity controller for both illumination system, indicator and glass fuse. |
| Screen Diameter | 600mm |
|---|---|
| Optical System | Vertical Optical Axis |
| Projection Lens | 10x Std. 5x, 20x & 50x are available optionally with suitable condenser |
| Lens Mount | 3 Position Lens Mounting Turret |
| Field of View | 60mm Standard |
| Magnification Accuracy | 0.1% Contour, 0.1% Surface |
| Table Type & Size | Aluminum Hard Coated Threadless Stage 350x250mm |
| Rectangular Glass Size | 300x200mm |
| X-Y Movement | 250x150mm |
| Stage Movement Type | Manual |
| Focusing Type | Manual |
| Measuring Unit | Data Processor having built-in Linear Scales, 3 axis with Geometric Measurements Function |
| Resolution | 0.001mm/0.00005" |
| Digital Protector | 0.01°/1sec, Selectable |
| Digital X-Y Counter | Yes, Resolution 0.001mm |
| Digital Angle Measurement | Yes, 1 second |
| Measurement Software | PC Connected Software & Hardware |
| Rotary Measuring Stage | Available in Dia of 100mm or 200mm, as per requirement |
| Max. Workpiece Height | 110mm |
| Illumination | Contour illumination is by 24V 150Watt halogen bulb built-in the base. |
| Canopy/Cover | Suitable Canopy supplied with Profile Projector to block ambient light from the surrounding environment. This ensures that only the light from the instrument's internal illumination system reaches the screen, which is critical for several reasons. |
| Power Supply | Single Phase AC220-230V+10%V, 50Hz + 3%Hz |
| OPTIONAL ACCESSORIES | V-Block with clamp, Swivel Center Support Holder, Profile Measuring Software, Customized Work Stage, Calibrated Glass Scales & Overlay Charts (Angle, Radius, Matric Threads, Biritch Threads, Graph etc). |

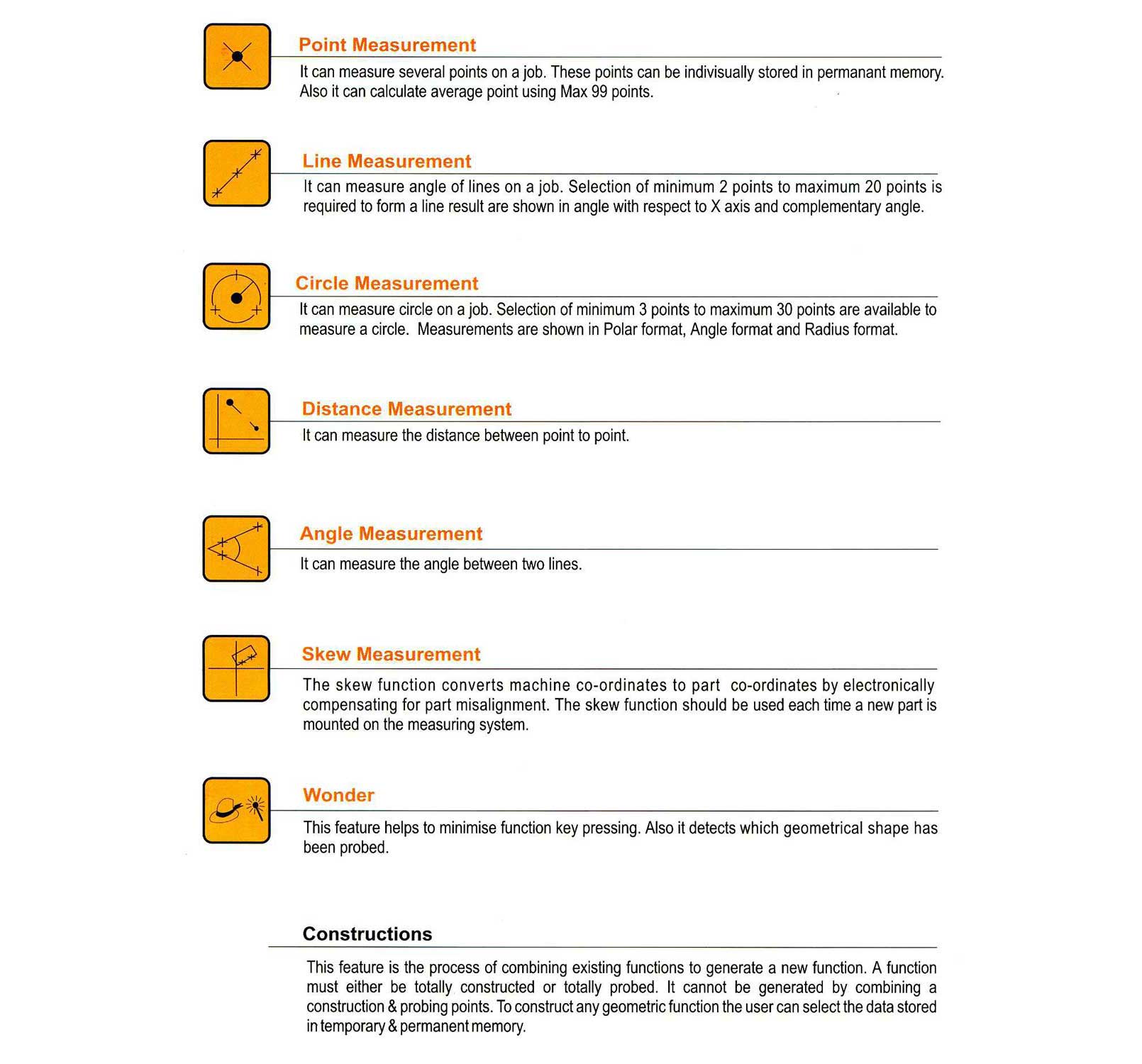

DATA PROCESSOR FOR PROFILE PROJECTORS
Data Processor with printer Interface, PC Serial communication, selectable counting direction, linear error compensation, Incremental & absolute mode, forward/backward annotation, mm/inch conversion, polar/cartesian coordinates, programming, cross calibration & teach mode. Beside above following features are also available :-

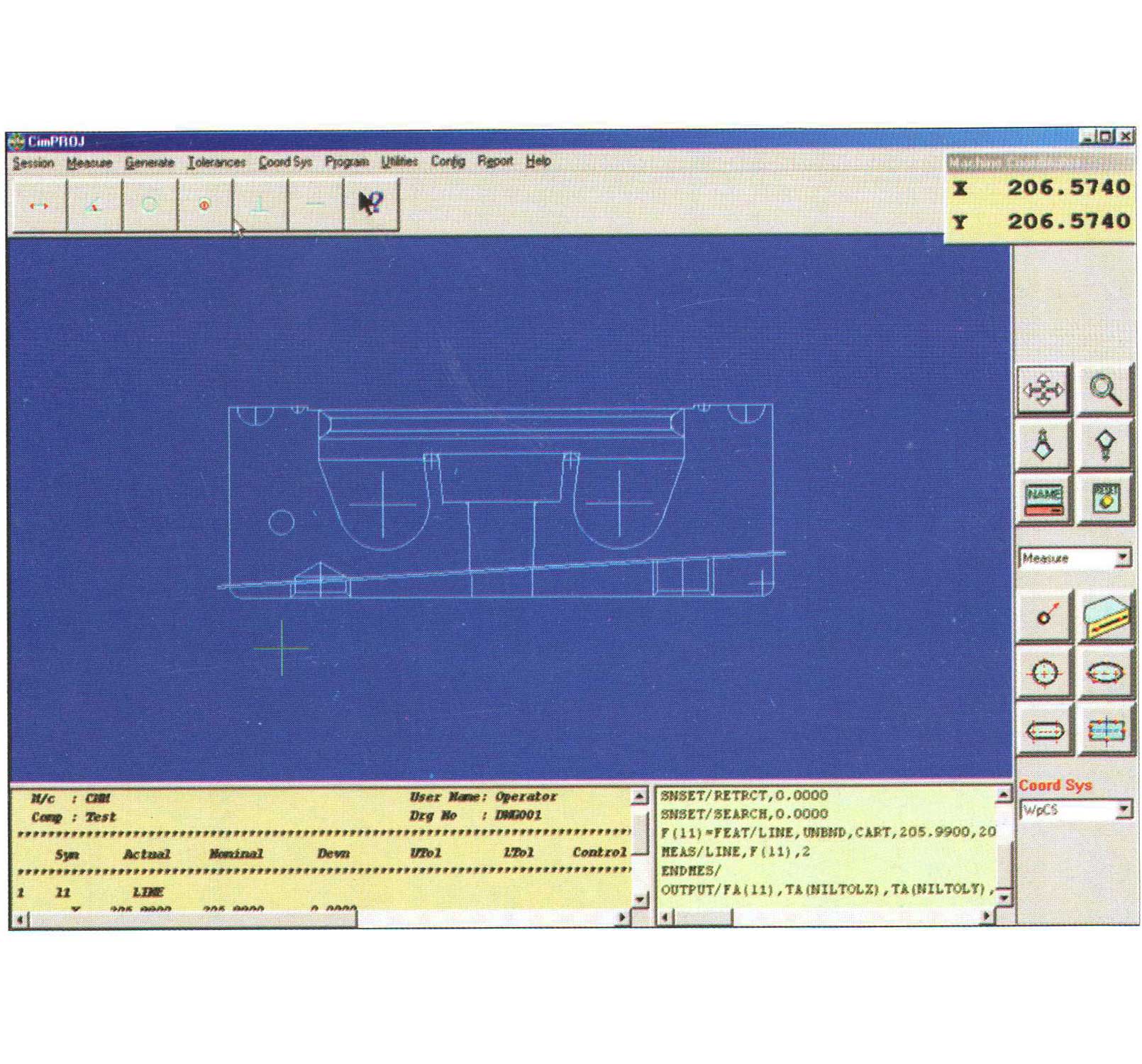

MEASURING SOFTWARE for PROFILE PROJECTORS
Profile Measuring Software is a comprehensive PC-based retrofit package for Profile Projectors. It can be integrated
with all kinds of Profile Projectors - Manual, Semi-automated and Automated (DCC). This consists of PC-based
graphical measurement software and standalone hardware for interfacing linear scales, optical edge-sensors, joystick
and drives (as per requirement).
In addition to standard measurement features, it provides several advanced features such as :-
- Automated Measurement
- Graphical Display of Measured Entities
- Direct Input of Nominal Values from AutoCAD (DXF) Files
- Reverse Engineering
- Teach & Playback
- Flexible Reporting
- Storage of Measurement Data in XML format
- Hand-held Terminal to Operate the Software from near the machine
MEASUREMENT FEATURES
Provides all the typical features required for measurement of components. This includes measurement of geometric
features, constructions, calculations, alignments etc.
GEOMETRIC ENTITIES & CONSTRUCTION
This Software can measure geometric entities from probed points & allows previously measured features to be used
in geometric constructions.
These help in indirect measurement of features that cannot be directly measured.
- Point - Line - Circle - Ellipse - Rounded Slot - Rectangular Slot
Calculations, component alignment, tolerances, display of entity details, element stack, online reports, measurement
data storage, graphical display of entities, automated measurements & customized report formats are some of the
very powerful features of this software.
