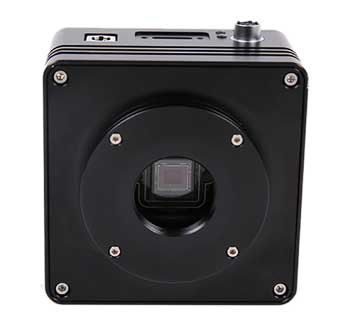

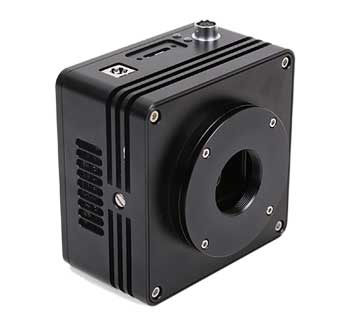

ProCAM CTR CMOS series camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 /GigE is used as the transfer interface to increase the frame rate.

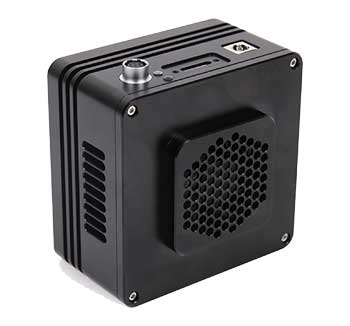

With the peltier cooling sensor chip to 5-10 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
ProCAM CTR CMOS series comes with advanced video & image processing application ProCAM Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API
The CTR CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
| Model | Pixels | Sensor & Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
G Sensitivity Dark Signal |
Exposure |
|---|---|---|---|---|---|---|
| ProCAM CTR-M-0.39MP | 0.39MP (Mono) CMOS |
1/2.9" (4.97x3.73mm) |
6.9µmX6.9µm | 720x540: 20FPS 8 Bit / 12 Bit |
7320mV with 1/30s 0.76mV with 1/30s |
6us~300s |
| ProCAM CTR-M-0.5MP | 0.5MP (Mono) CMOS |
1/1.7" (7.2x5.58mm) |
9.0µmX9.0µm | 800x620: 20FPS 8 Bit / 12 Bit |
8100mV with 1/30s 0.3mV with 1/30s |
|
| ProCAM CTR-C-1.7MP | 1.7MP (Colour) CMOS |
1.1" (14.4x9.9) |
9.0µmX9.0µm | 1600×1100: 98.6FPS 8 Bit / 12 Bit |
4910mv with 1/30s 0.3mv with 1/30s |
|
| ProCAM CTR-M-1.7MP | 1.7MP (Mono) CMOS |
1.1" (14.4x9.9) |
9.0µmX9.0µm | 1600×1100: 98.6FPS 8 Bit / 12 Bit |
8100mv with 1/30s 0.3mv with 1/30s |
|
| ProCAM CTR-M-7MP | 7MP (Colour) CMOS |
1.1" (14.4x9.9mm) |
4.5µmX4.5µm | 3200×2200: 51.3FPS 1584×1100: 133.8FPS 8 Bit / 12 Bit |
2058mv with 1/30s 0.15mv with 1/30s |
|
| ProCAM CTR-M-7MP | 7MP (Mono) CMOS |
1.1" (14.4x9.9mm) |
4.5µmX4.5µm | 3200×2200: 51.3FPS 1584×1100: 133.8FPS 8 Bit / 12 Bit |
3354mv with 1/30s 0.15mv with 1/30s |
|
| ProCAM CTR-C-20MP | 20MP (Colour) CMOS |
1" (13.056x8.755mm) |
2.4µmX2.4µm | 5440x3648: 19.0FPS 2736x1824: 48.8FPS 1824x1216: 59.4FPS 8 Bit / 12 Bit |
462mv with 1/30s 0.21mv with 1/30s |
53us~300s |
| ProCAM CTR-M-20MP | 20MP (Mono) CMOS |
1" (13.056x8.755mm) |
2.4µmX2.4µm | 5440x3648: 19.0FPS 2736x1824: 48.8FPS 1824x1216: 59.4FPS 8 Bit / 12 Bit |
776mv with 1/30s 0.21mv with 1/30s |
|
| ProCAM CTR-M-45MP | 45MP (Mono) CMOS |
4/3" (19.11x13.00mm) |
2.315µmX2.315µm | 8176x5616: 8.1FPS 4080x2808: 30.0FPS 7408x5556: 8.1FPS 3696x2778: 33.0FPS 8176x4320: 10.4FPS 4096x2160:34.7 FPS 2048x1080: 62.5FPS 1360x720: 86.5FPS 8 Bit / 12 Bit |
351mV with 1/30s 0.12mV with 1/30s |
0.1ms~300s |
| Image Data Format | 8/12 bit RAW Format | |||||
| Data Interface | USB 3.0 | |||||
| Dynamic Range | 1:2000 | |||||
| Binning | 1x1, 2x2, 3x3, 4x4 | |||||
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used | |||||
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment | |||||
| Color Rendering Technique | Ultra Fine Color Engine | |||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | |||||
| Recording System | Still Picture and Movie | |||||
| Cooling System* | Two-stage TE-cooling System -42 °C below Camera Body Temperature | |||||
| Operating Temp. | -10°C~ 50°C | |||||
| Storage Temp. | -20°C~ 60°C | |||||
| Operating Humi. | 30~80%RH | |||||
| Storage Humidity | 10~60%RH | |||||
| Power Supply | External Power Adapter for camera and cooling system, DC12V,3A | |||||
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux | |||||
| Minimum PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 2GB or More, USB port: USB2.0 High-speed Port, Display: 17" or Larger, CD-ROM | |||||
