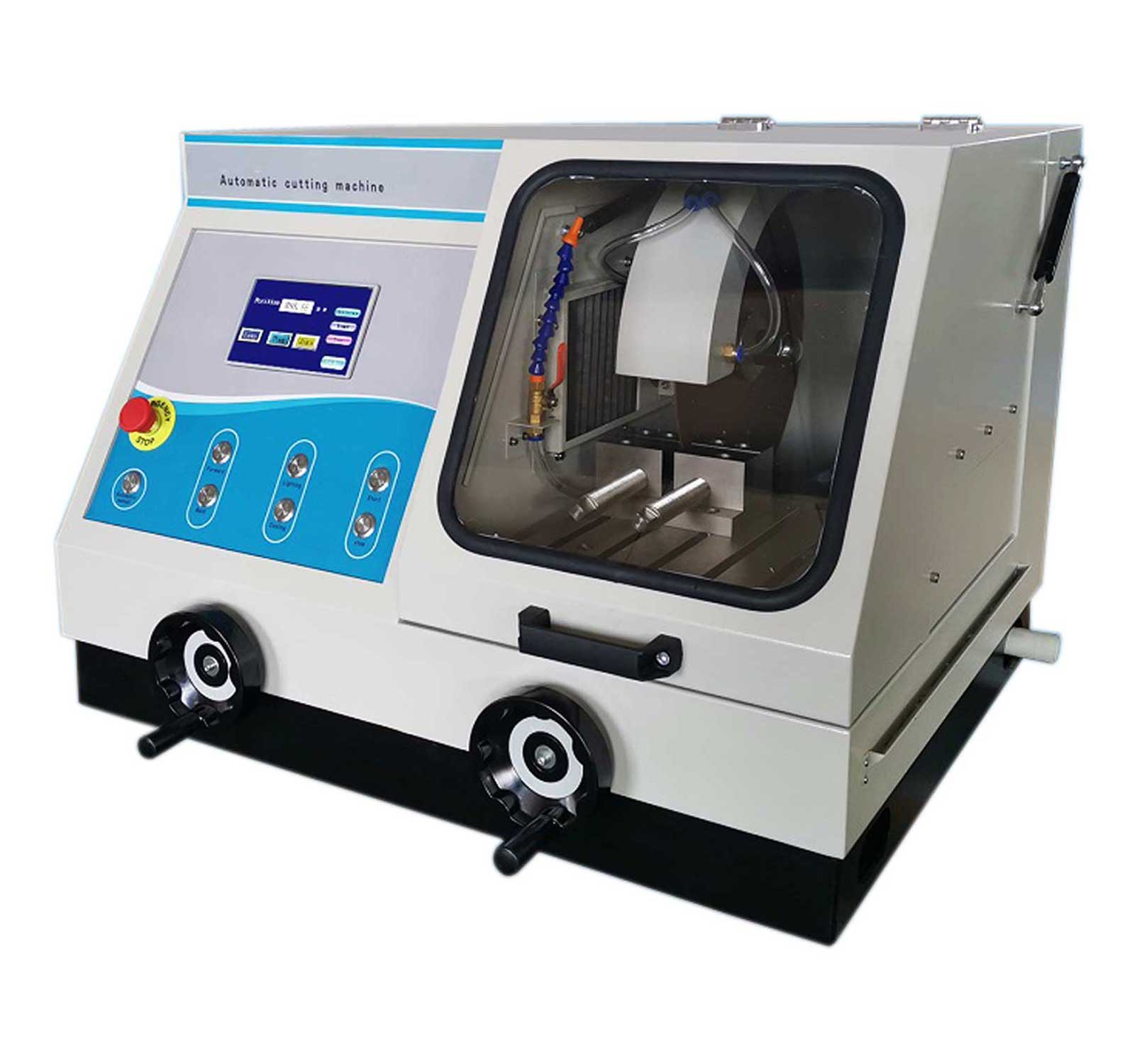

Abrasive Cut Off Machine

RACM-100

This metallographic specimen cutting machine is equipped with big cutting chamber and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. It is an ideal metallographic specimen preparation equipment to be used in factories, colleges and research institutes.

  • The machine can preset the cutting speed according to different specimens, this will improve the cutting performance and quality of specimen.
  • Re-circulating cooling system help to cool down the specimen during cutting process, to avoid burning damage to the organization.
  • The machine can be operated in manual cutting mode or automatic cutting mode.
  • Various cutting data can be displayed on high definition backlight type LCD screen.
  • Delay cutting (for large and hard specimen) and continuous cutting (for small and soft specimen) can be selected.
  • Automatic withdraw function after cutting is finished.
  • Equipped with 60 L cooling liquid water tank.

  • Display : LCD with high resolution back lit dot matrix
  • Max. cutting diameter: Ø100mm
  • Max. Cutting volume: 100mm x 200mm
  • Main shaft rotating speed: 2100 rpm
  • Automatic cutting speed: 0.1-3.0mm/min.
  • Cutting wheel dimensions : 350 x 2.5 x 32mm
  • Max. moving travel : 125mm
  • Max. working table travel : 275mm
  • Motor power: 3.5 KW
  • Power supply : 380V, 50Hz, three phases
  • Nett weight : 225 Kgs.

  • As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
