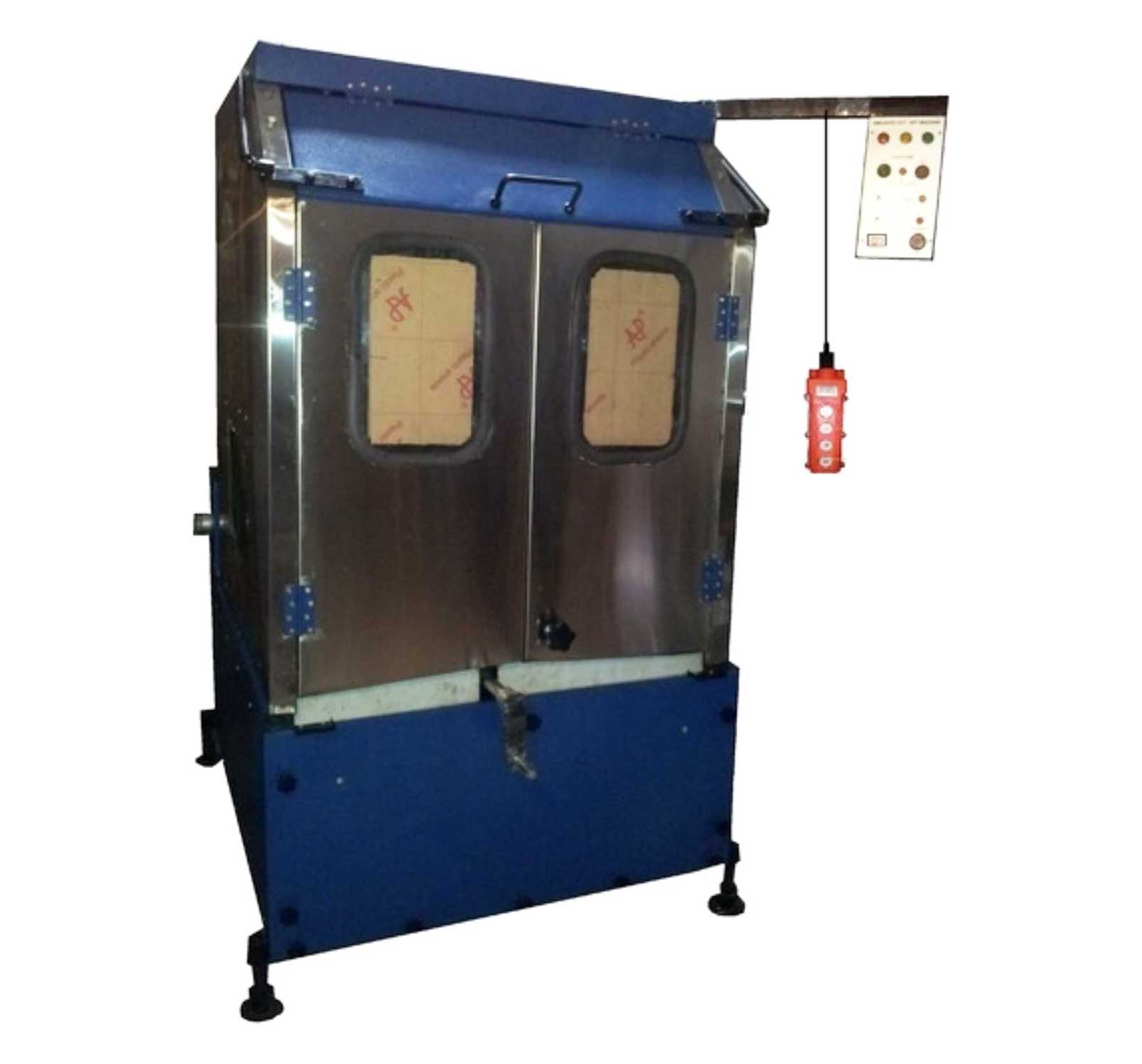

Abrasive Cutting Machine

RACM-150-AM

Our Automatic Abrasive Cutting Machine are in high demand in the market due to easy installation, user friendliness, ability to withstand adverse conditions, functional stability and enhanced durability. We use high grade components in our machines. Each instrument is checked thoroughly on various parameters before dispatching to the clients.
Our machines are specifically designed for cutting hard materials, such as concrete, tiles, and metals. Our machines are always high on demand due to their excellent performance, accurate dimensions, corrosion resistant body, rugged construction, and high-speed operations. These machines are widely used in engineering colleges, universities, research centers, quality control labs etc for absolute minimal deformation, cool & burn free sample production.

  • Automatic and Manual both cutting of sample is possible.
  • Dual Digital Display for automatic cutting feed.
  • Cutting Speed fixed 2000rpm.
  • Simple Manual Cutting by pressing a button.
  • Large and Effective coolant delivery with adjustable focused vains fitted on wheel guard.
  • Coolant circulation System is provided with suitable filtering arrangement.
  • Light attachments system is provided for accurate cutting of samples.
  • Large Viewing window to monitor the cutting operation.
  • Abrasive cutting wheel swings with oscillation movement for large samples chop type cutting.
  • Motor 3 Phase 440volts 15 HP motor is fitted in the machine.
  • Machine is covered with stainless steel/mild steel sheet.
  • Heavy steel vice with 360 degree revolving type feature X-Y Sliding movement 150×150mm is provided for vice to set the cutting location.
  • Remote Controlled operated up & down movement.
  • Coolant tank of capacity of 100Ltrs is mounted on wheels with coolant pump 3 Phase 440volts.
  • Machine is suitable for cutting solid material of thickness up to 150mm.
  • Wheel Guard Capacity- up to 20" abrasive cutting wheel.
  • Motorized magnetic separator filtration system helps in cleaning the coolant tank, to reduce frequent cleaning operations and save time as well.
  • Size of machine is Width 70inch×Length 70inch× Height 78inch (Appx.) & Weight 1150kgs (Appx.)

  • As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
