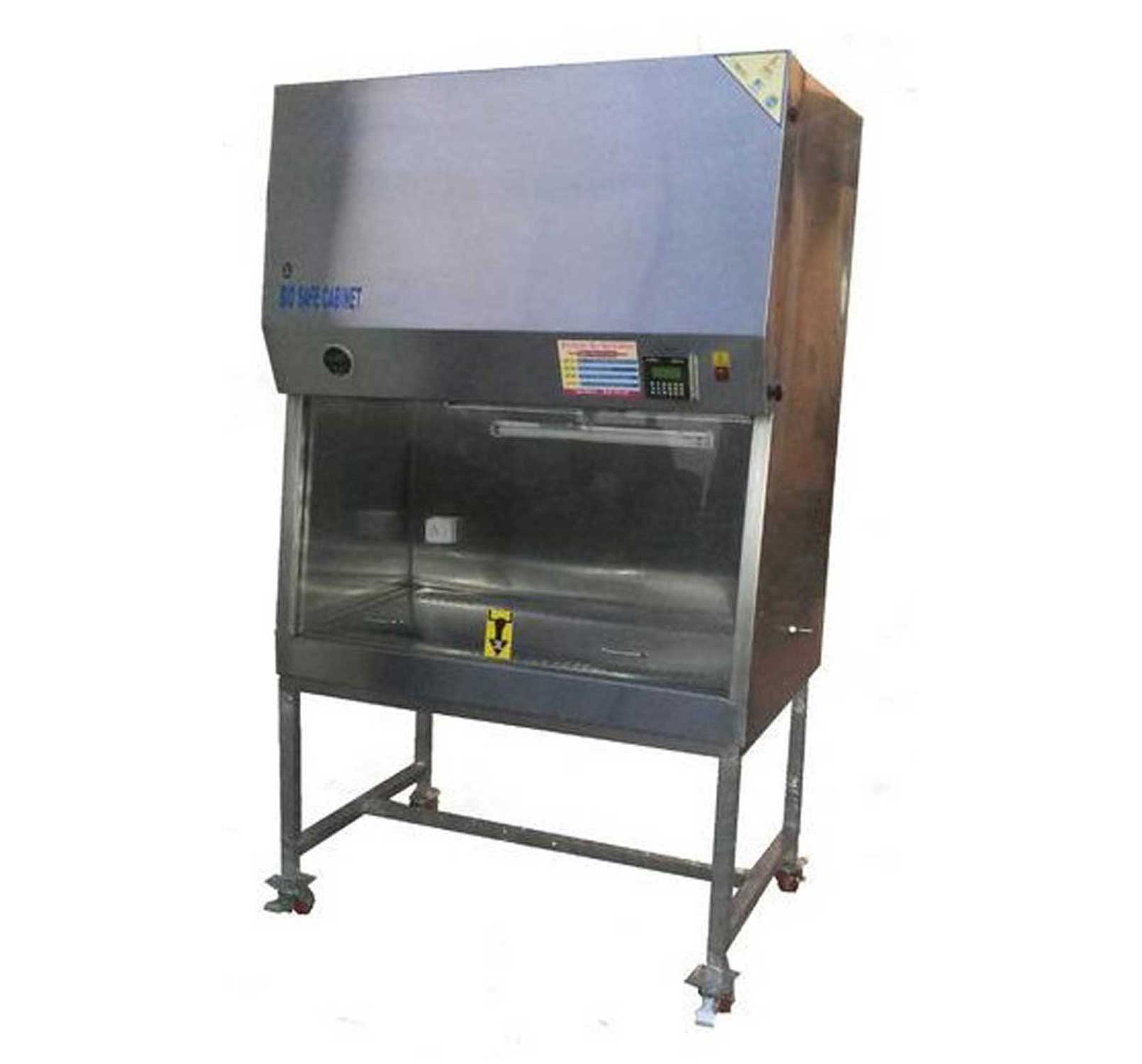

Biosafety Cabinet (Stainless Steel)
Class II, A-2 RSBS-59
| Cleanliness | Class 100. |
| Inflow Velocity | 100 fpm (0.50m/sec). |
| Downflow Velocity | 65 fpm (0.35M/sec). |
| HEPA Filter | Confirms to ISO standard 14644 (Class 5). 99.97%-99.99% efficiency for particles down to 0.3 micron. Mesh guard for protection of HEPA Filter. |
| Pre Filter | 90.00% efficiency for particles down to 5 micron. |
| Airflow | Vertical. 70% of the air volume is re-circulated, 30% is exhausted. Highly efficient airflow management system. |
| Noise Level | Low noise level. 60 decibel ± 5%. |
| Cabinet | The cabinet is made up of 304 grade Stainless steel. It has a durable construction for a long service life. |
| Work Table | Made up of perforated stainless steel 304gr. Cock for gas on work table. |
| Front door | Made of Acrylic and is duly counter balanced. |
| UV Lamp | To sterilize the work zone. 15/30W (make Philips Holland). |
| Illumination | High intensity LED white light for easy operations. |
| Heavy Duty Blower | Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor. |
| Switches | Microprocessor based switches for Blower, LED light & UV light with LED back light display. (UV light with Timer). |
| Pressure | 0-50mm range. (Digital Manometer with filter failure alarm). |
| Power Supply | 230V ± 10V/50 Hz single phase A.C. |
| Exhaust Assembly | 360CFM, ducting by a PVC hose 4 inch in diameter. |
| Virus Burn out | Fitted with exhaust and HEPA Filter for environmental protection. |
| Stand | Castor Wheels for easy movement. Front Wheels are lockable with brakes. |
OPTIONAL:
Magnehelic pressure gauge.
Fluorescent lamp.
| Model No. | Working Area Size |
| RSBS [A2]-59-08 | 60 x 60 x 60 cm |
| RSBS [A2]-59-09 | 90 x 60 x 60 cm |
| RSBS [A2]-59-10 | 120 x 60 x 60 cm |
