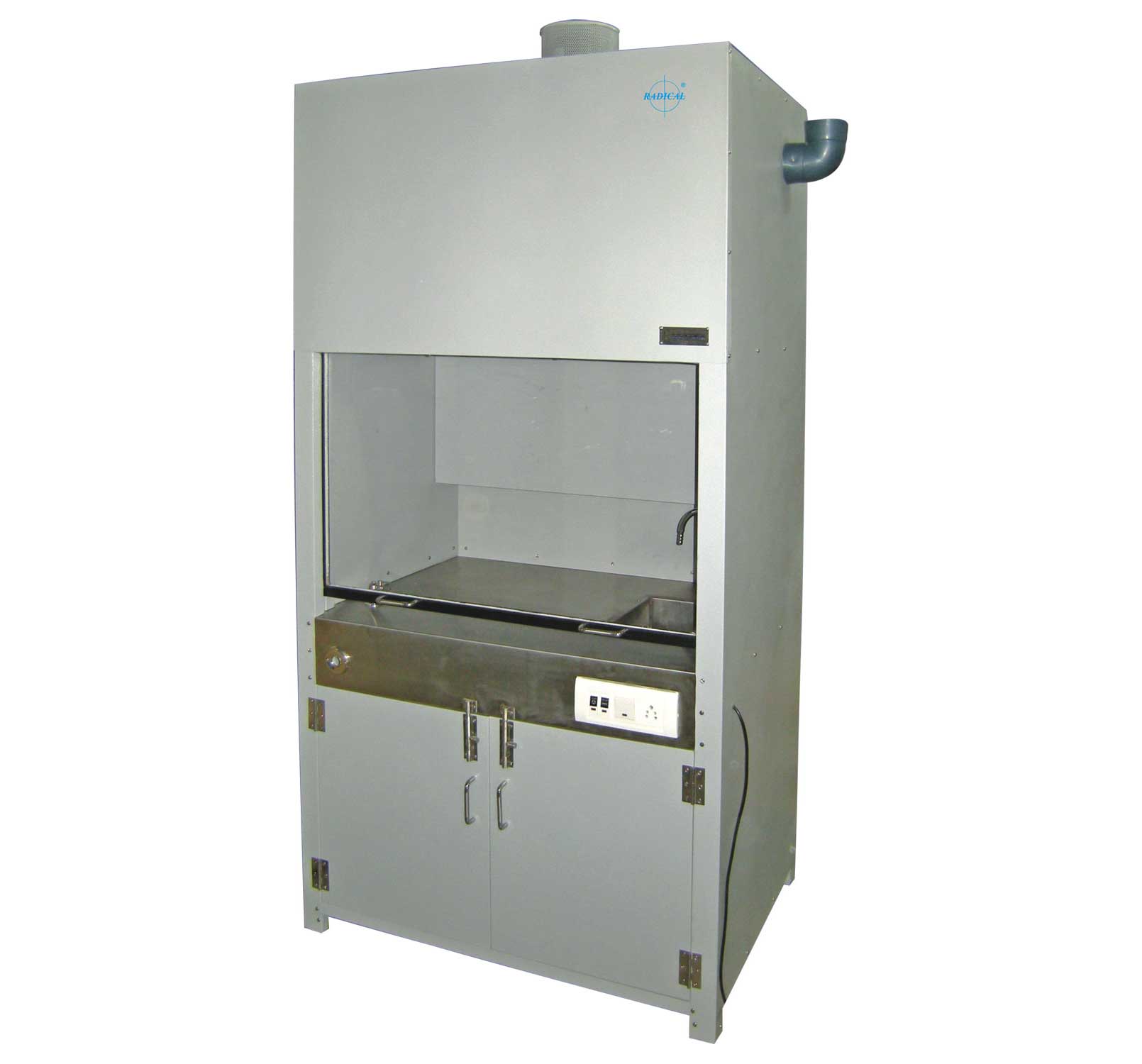

Fume Hood (Wooden)

RSFW-60

  • Our fume hoods are widely used in clinical, diagnostic, dental, and other laboratories, medical organizations, food production and other industries.
  • They find application in studies and works that involve the production and spread of low-toxic vapors and gases harmful to human health.
  • They suck the fumes and throw them outside the working environment to maintain an acceptable air quality, thus aiming at enhancing the safety of personnel as well as the laboratory environment.
  • We offer a wide range of fume hoods in various sizes and dimensions and with variable construction, to meet specific requirements of your research.
  • Construction Our fume hoods come with a durable construction, made up of ply-board that is covered with melamine lamination from the outside and epoxy painted from the inside.
    Door/Sash We offer a Vertical Sliding sash. It is made of polycarbonate / toughened glass. The glass window mechanism can move vertically up and down using sash track. The Sash track system here is made up of concealed counter balanced weights and a pulley, thus allowing the operator to easily move the sash up or down and keep it at a desired height during work.
    Work Surface The easy to clean work surface is made of granite and is fitted with a small wash basin & a good quality tap. A gas cock is also fitted.
    Chemical Storage Cabinet At the bottom of the fume hood we provide a ventilated cabinet to store chemicals.
    Blower High speed centrifugal blower.
    Lighting The chamber is fitted with an efficient fluorescent/LED light assembly.
    Exhaust system Comes complete with the motor blower and duct to take out the fumes.
    Electrical Fittings  15/5 Amp socket with switches is provided for light and exhaust system.
    Power Supply Supplied with cord and plug to work at 220 volts 1/3 phase 50Hz A.C.
    Model No. Working Area Size
    RSFW-60-09 90 x 60 x 60 cm
    RSFW-60-10 120 x 60 x 60 cm
    RSFW-60-11 120 x 75 x 75 cm

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
