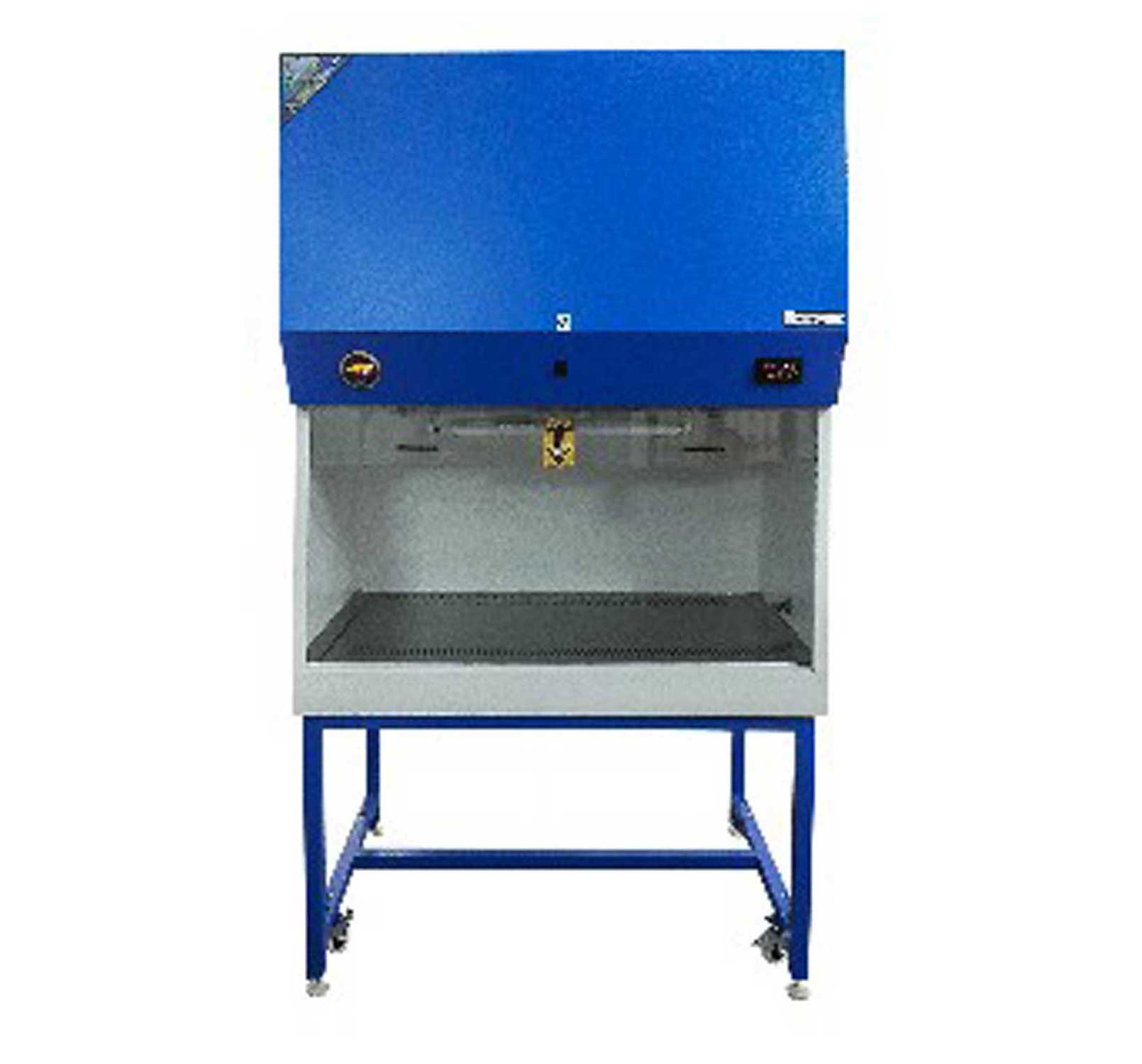

Advanced Laminar Air Flow Workstation Vertical 'Mild Steel'
RSVM-56A Series
We offer a precision engineered range of Vertical Laminar Air Flow workstations, which are manufactured in line with the international quality standards to ensure optimum quality in the final product.
In our Vertical Laminar Air Flow Workstations, the laminar air is directed vertically downwards onto the working area. Thus, these are not blowing air straight to the operators face, hence providing for greater operator protection.
They find application in microbiological labs and other research centers engaged in investigative work.
| Cleanliness | Class 100. |
|---|---|
| Velocity | 0.35-0.50m/sec. |
| HEPA Filter | Confirms to ISO standard 14644 (Class 5). 99.97%-99.99% efficiency for particles down to 0.3 micron. Mesh guard for protection of HEPA Filter. |
| Pre Filter | 90.00% efficiency for particles down to 5 micron. |
| Airflow | Top to downward (Vertical). High airflow capacity. |
| Noise Level | Low noise level. 60 decibel ± 5%. |
| Cabinet | The cabinet is made of Mild Steel which is duly powder coated. |
| Work Table | Perforated. Made up of stainless steel 304gr. Cock for gas on work table. |
| Front door | Made of Toughened glass. (Motorized for easy working). |
| UV Lamp | To sterilize the work zone. 15/30W (make Philips Holland). |
| Illumination | High intensity LED lights for easy operations. |
| Heavy Duty Blower | Dynamically balanced with 0.25 HP Electric Motor mounted on an anti-vibration pad 1440rpm motor. |
| Switches | Microprocessor based Touch Panel for Blower, LED light & UV light. (UV light with Timer). Motorized front door of toughened glass. |
| Pressure | 0-50mm range (Digital Manometer with filter failure alarm). |
| Power Supply | 230V ± 10V/50 Hz single phase A.C. |
| Electricals | 15/5 AMP socket with switch. |
| Safety Features | Voltage fluctuations Protection. Micro switches for UV & LED Lights. |
| Stand | Castor Wheels for easy movement. Front Wheels are lockable with brakes. |
| Model No. | Working Area Sizes |
| RSVM-56A-01 | 60 x 60 x 60 cm |
| RSVM-56A-02 | 90 x 60 x 60 cm |
| RSVM-56A-03 | 120 x 60 x 60 cm |
| RSVM-56A-04 | 150 x 60 x 60 cm |
