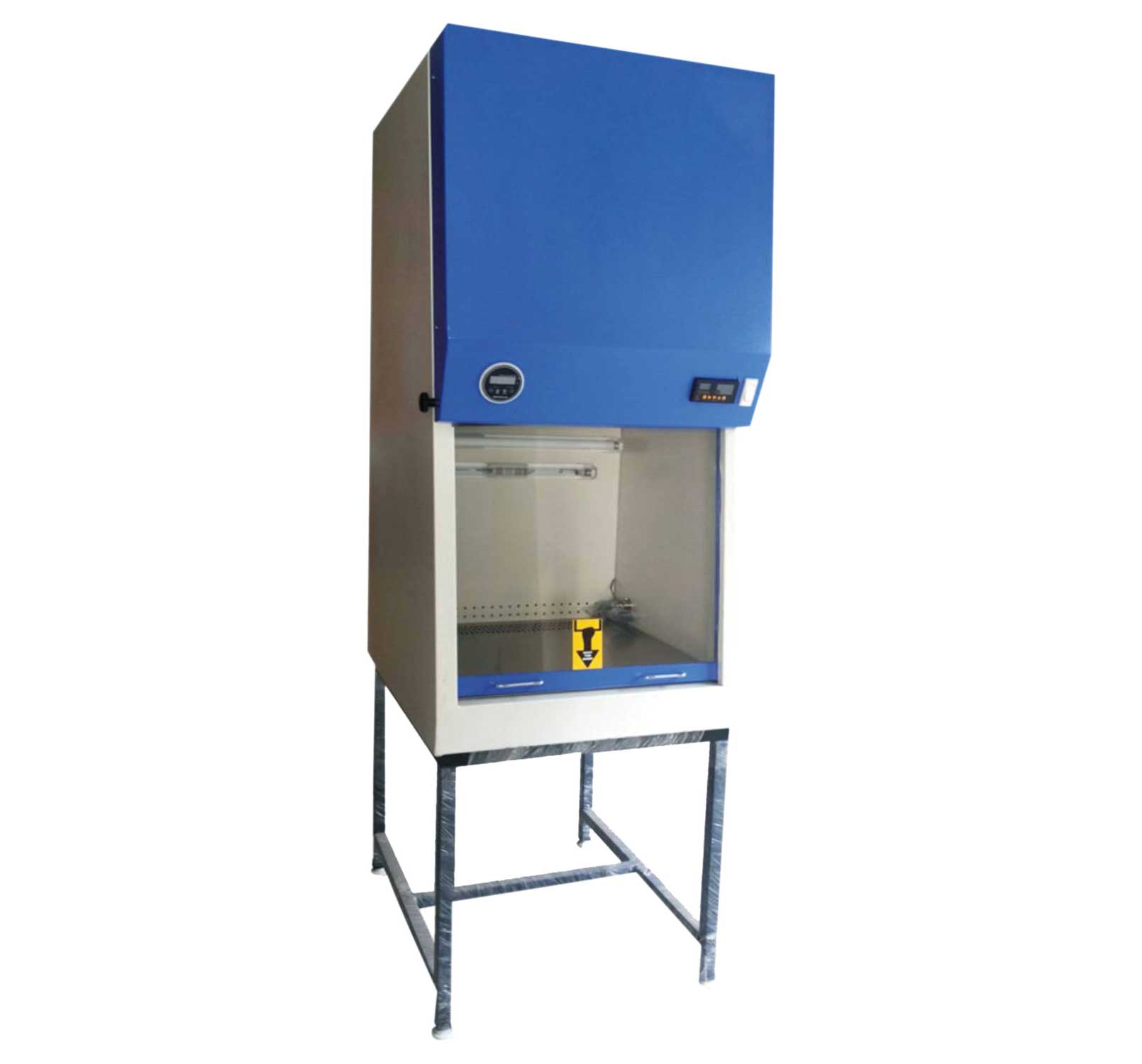

Laminar Air Flow Workstation Vertical 'Mild Steel'
RSVM-57 Series
Laminar Air Flow Workstation Vertical 'Mild Steel'made of mild steel duly powder coated and workbench made of 304 grade S.S. perforated sheet. Microprocessor control TOUCH PANEL LCD Display and Digital Manometer & Filter Failure Alarm. LED White Light & UV Light provided. Motorized Glass Door for easy working. Micro Switch for UV Light, Cock for Gas and 15/5amp socket provided inside the chamber.
| Cleanliness | Class 100. |
|---|---|
| Velocity | 0.35-0.50m/sec. |
| HEPA Filter | Confirms to ISO standard 14644 (Class 5). 99.97%-99.99% efficiency for particles down to 0.3 micron. Mesh guard for protection of HEPA Filter. |
| Pre Filter | 90.00% efficiency for particles down to 5 micron. |
| Airflow | Top to downward (Vertical). High airflow capacity. |
| Noise Level | Low noise level. 60 decibel ± 5%. |
| Cabinet | The cabinet is made up of Mild Steel, which is duly powder coated. |
| Work Table | Made up of a perforated sheet of stainless steel 304gr. Cock for gas on work table. |
| Front door | Made up of Acrylic and is duly counter balanced. |
| UV Lamp | To sterilize the work zone. 15/30W (make Philips Holland). |
| Illumination | High intensity LED lights for easy operations. |
| Heavy Duty Blower | Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor. |
| Switches | Microprocessor based Switches for Blower, LED light and UV light, with LED back light display. (UV light with Timer) |
| Pressure | 0-50mm range (Digital Manometer); with filter failure alarm system. alarm system. |
| Power Supply | 230V ± 10V/50 Hz single phase A.C. |
| Model No. | Working Area Sizes |
| RSVM-57-11 | 60 x 60 x 60 cm |
| RSVM-57-12 | 90 x 60 x 60 cm |
| RSVM-57-13 | 120 x 60 x 60 cm |
| RSVM-57-14 | 180 x 60 x 60 cm |
