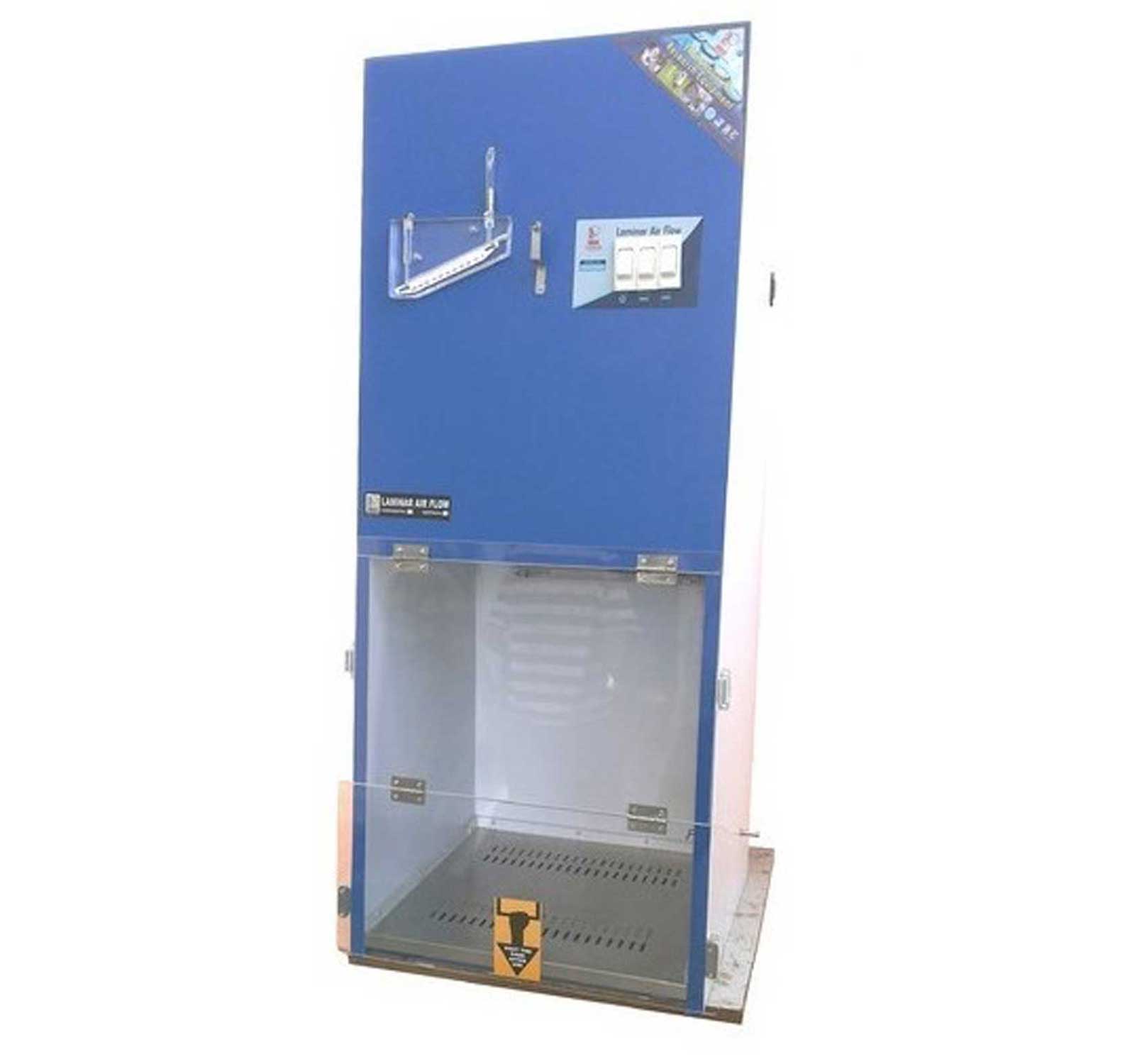

Laminar Air Flow Cabinet (Portable)
RSVW-51-01
| Cleanliness | Class 100. |
|---|---|
| Velocity | 0.35-0.50m/sec. |
| HEPA Filter | Confirms to ISO standard 14644 (Class 5). 99.97%-99.99% efficiency for particles down to 0.3 micron. Mesh guard for protection of HEPA Filter. |
| Pre Filter | 90.00% efficiency for particles down to 5 micron. |
| Airflow | Top to downward (Vertical). High airflow capacity. |
| Noise Level | Low noise level. 60 decibel ± 5%. |
| Cabinet | High quality, 19mm thick Ply board covered with sun mica from the outside and epoxy painted from the inside. |
| Work Table | Perforated Made up of stainless steel 304gr. Cock for gas on work table. |
| Front door | Made of Acrylic (Foldable). |
| UV Lamp | To sterilize the work zone. 9W (make Philips Holland). |
| Illumination | High intensity LED tube, 9W. |
| Heavy Duty Blower | Dynamically balanced with 0.25 HP Electric Motor mounted on an anti vibration pad 1440rpm motor. |
| Switches | Switches for blower, Fluorescent light & UV light. |
| Pressure | 0-50mm range (Manometer). |
| Power Supply | 230V ± 10V/50 Hz single phase A.C. |
| Working Area Size | 45x45x45cm. |
