ProCAMX CMOS Max Cameras

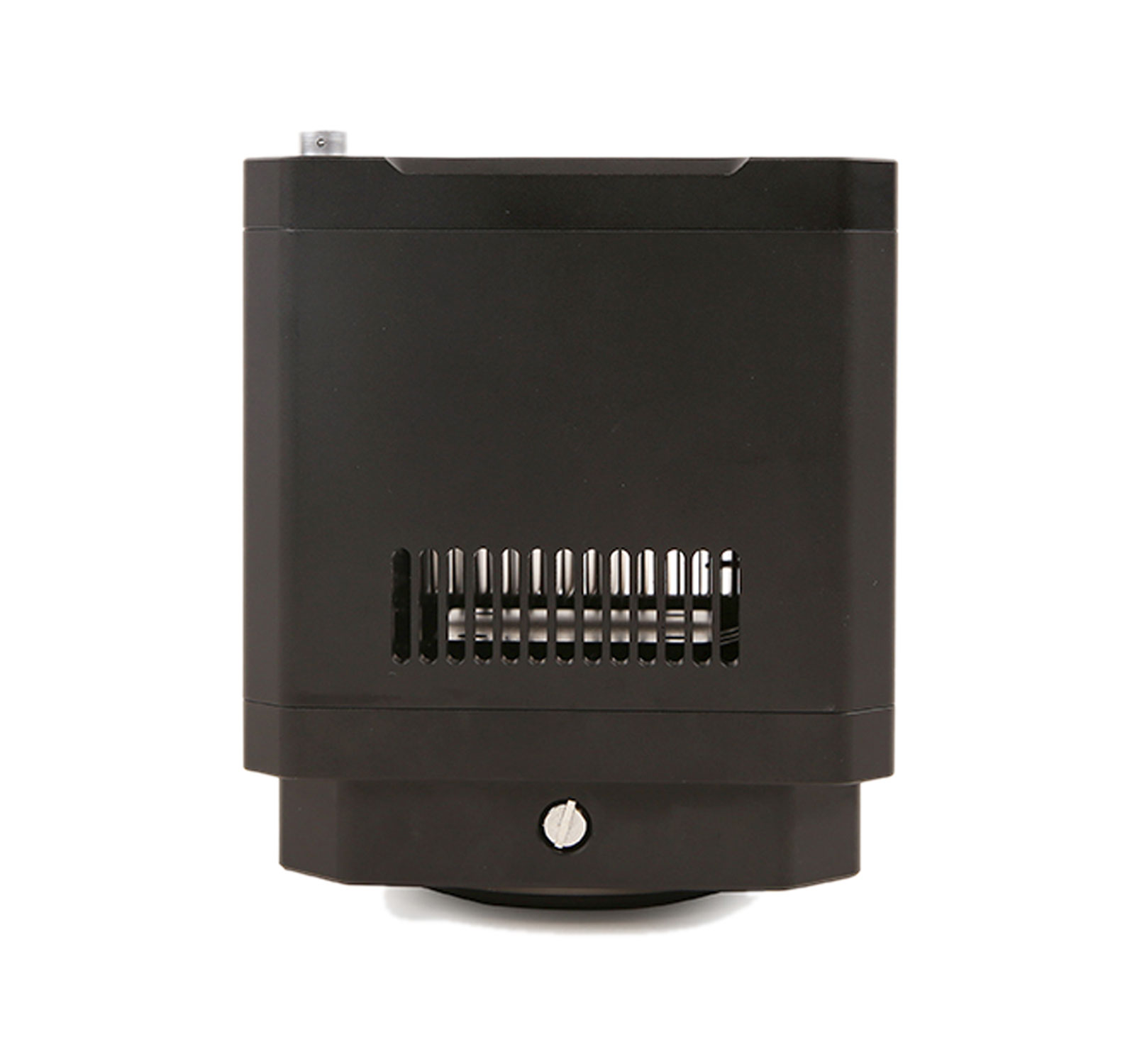

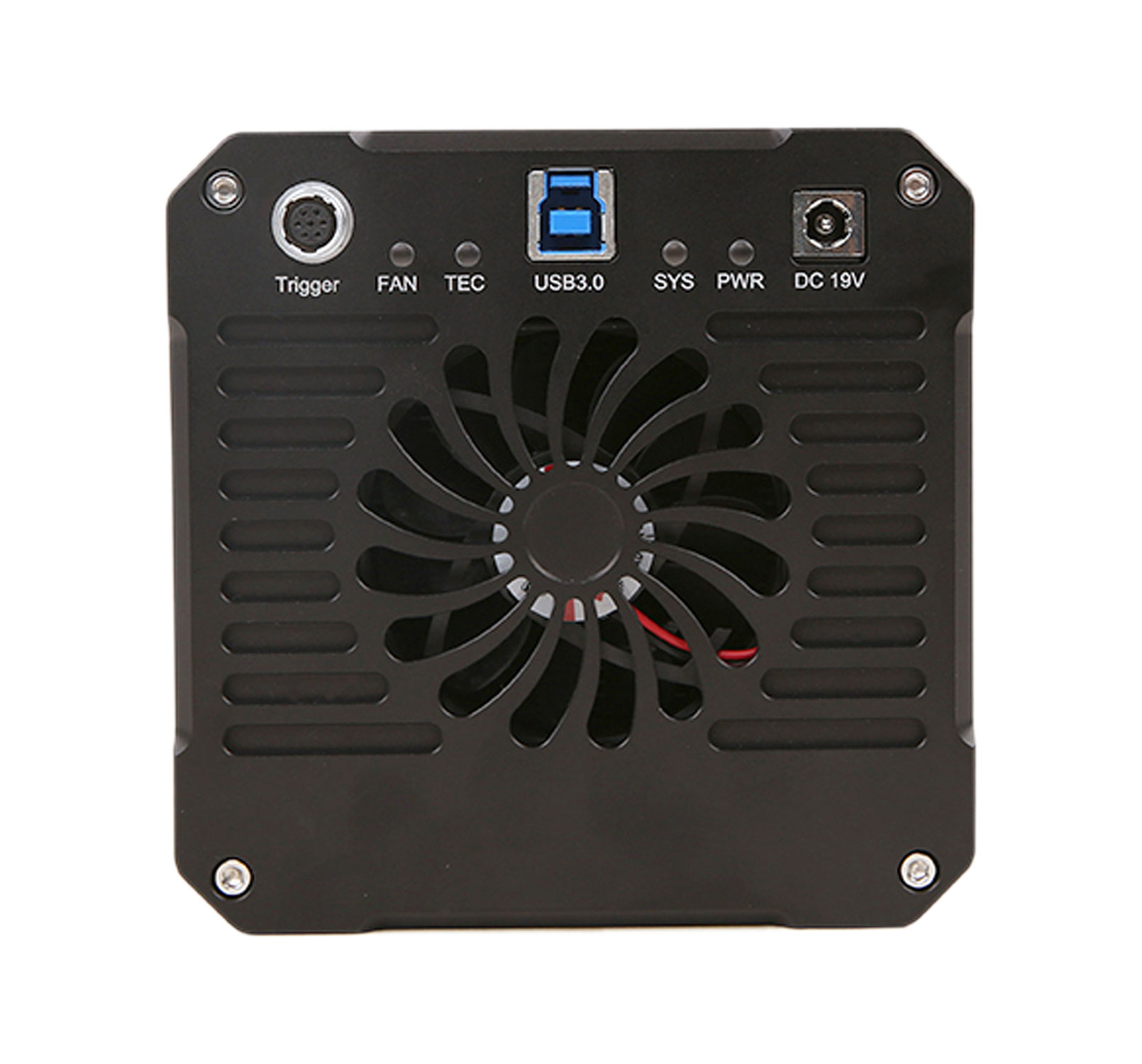

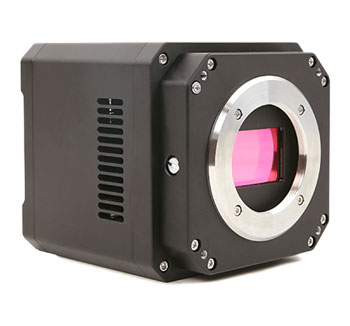

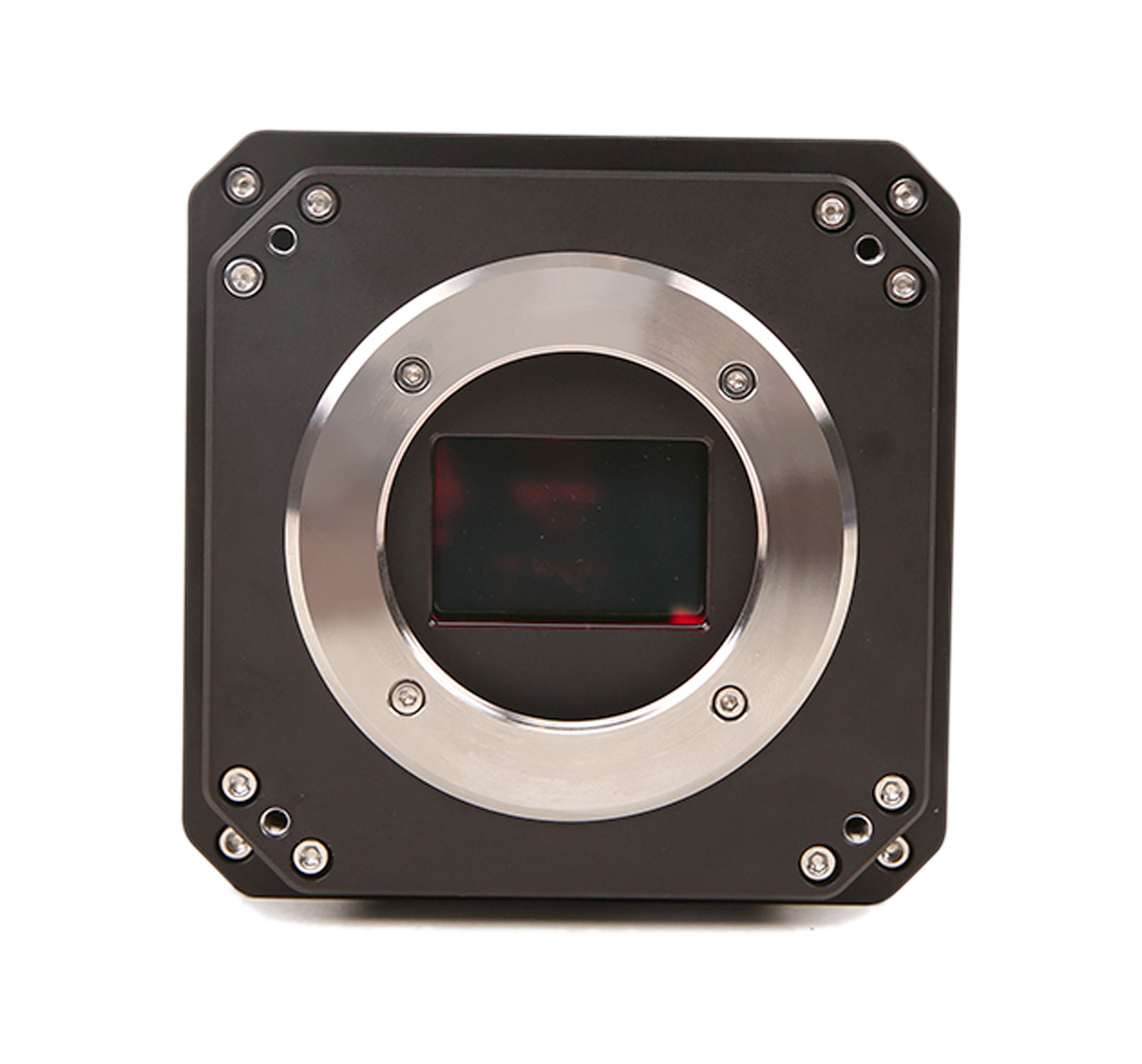

ProCAMX CMOS MAX camera adopts SONY Exmor or GSENSE with big pixel size or full-frame CMOS sensor as the image-picking device and USB3.2 is used as the transfer interface to increase the frame rate. With the two-stage peltier cooling sensor chip to -40°C below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise, Readout noise <6e-. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed. MAX comes with advanced video & image processing application software; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The MAX can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
| Model | Sensor Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
G Sensitivity Dark Signal | Exposure Time |
|---|---|---|---|---|---|
| ProCAMX 4.2MP | 2.0"(22.53x22.53) CMOS Mono | 11µm x 11µm | 2048x2048: 37FPS 1024x1024: 37FPS Any ROI |
3.25x108 (e-/((W/m2).s)) Peak QE 95.3% @560nm 345(e-/s/pix) 68.5dB/50dB |
0.1ms~1000s |
| ProCAMXM 4.2MP | 1.2"(13.31x13.31) CMOS Mono | 6.5µm x 6.5µm | 2048x2048: 43.5FPS 1024x1024: 43.5FPS Any ROI |
1.1x108 (e-/((W/m2).s)) Peak QE 93.7% @550nm 80(e-/s/pix) 65.8dB/47dB |
0.1ms~1000s |
| ProCAMXM1 4.2MP | 1.2"(13.31x13.31) CMOS Mono | 6.5µm x 6.5µm | 2048x204 : 44.5FPS 1024x1022: 44.5FPS Any ROI |
8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm 13(e-/s/pix) 66.6dB/46dB |
0.1ms~1000s |
| ProCAMX 24MP | 2.7"(36.02x24.00) CMOS Colour |
5.94µm x 5.94µm | 6064x4040: 15.3FPS(14bit) 3024x2012: 41FPS 2016x1342: 114FPS 1920x1080: 60FPS Any ROI |
573mv with 1/30s 0.037mv with 1/30s 87.3dB/50.2dB |
0.1ms~1000s |
| ProCAMXB 24MP | 2.7"(36.02x25.9) CMOS Colour/mono | 5.94µm x 5.94µm | 6000x3984: 9FPS (4K/6K) 3024x2012: 41FPS 1920x1080: 66FPS Any ROI |
573mv with 1/30s 0.037mv with 1/30s 87.3dB/50.2dB |
0.1ms~120s |
| ProCAMX 61MP | 2.7"(35.98x23.99) CMOS Colour |
3.76µm x 3.76µm | 9568x6380: 6.1FPS(16bit) 4784x319: 19.1FPS 3184x2124: 55.6FPS 1040x706: 191FPS Any ROI |
484.5mv with 1/30s 0.039mv with 1/30s 85.8dB/47.0dB |
0.1ms~1000s |
| ProCAMXB 61MP | 2.7"(35.98x23.99) CMOS Colour/Mono |
3.76µm x 3.76µm | 9568x6380: 6.1FPS(16bit) 8192x6000: 12FPS 4096x3000: 19.1FPS 3840x2160: 22FPS (4k) 2048x1500: 30FPS 1920x1080: 60FPS (HD) 1040x706: 191FPS 640x480: 220FPS Any ROI |
484.5mv with 1/30s 0.039mv with 1/30s 85.8dB/47.0dB |
0.1ms~1000s |
| ProCAMXM 61MP | 2.7"(35.98x23.99) CMOS Mono | 3.76µm x 3.76µm | 9568x6380: 6.1FPS(16bit) 4784x3190: 19.1FPS 3184x2124: 55.6FPS 1040x706: 191FPS Any ROI |
871mv with 1/30s 0.039mv with 1/30s 88.3dB/47.1dB |
0.1ms~1000s |
| Data Interface | HDMI, USB 3.2/3.0, Type C, Ethernet, Micro D, Wifi | ||||
| Spectral Range | 200-1000nm (The spectral response range of each model is different. Please refer to the product manual of each model for detailed parameters) | ||||
| White Balance | ROI White Balance/Manual Temp-Tint Adjustment/NA for Monochromatic Sensor | ||||
| Color Rendering Technique | Ultra Fine Color Engine/NA for Monochromatic Sensor | ||||
| IR Filter Range | 380-650nm (IR Cut) | ||||
| ISO sensitivity | 125-8000 | ||||
| ADC | 12, 14, 16bit | ||||
| Binning | 1x1, 2x2, 3x3, 9x9 | ||||
| Quantum Efficiency | 85% at 500nm | ||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | ||||
| Recording System | Still Picture and Movie(Free running mode or trigger mode) | ||||
| Shutter | Global Shutter for no distortion | ||||
| Cooling System* | Two-stage Peltier TE-cooling System -40 °C below camera body temperature/passive | ||||
| Operating Temp. | -10 °C~ 50 °C | ||||
| Storage Temp. | -20 °C~ 60 °C | ||||
| Operating Humidity | 30~80%RH | ||||
| Storage Humidity | 10~60%RH | ||||
| Power Supply | DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V,3A |
||||
| Features | Colour space serge, Adobe RGBx2, linear mode | ||||
| Operating System | Support Microsoft Windows XP/ Vista/ 7/ 8/ 10(32 & 64 bit) OS X (Mac OS X), Linux | ||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More USB port: USB2.0 High-speed Port Display: 17" or Larger |
||||
