Multi Port Cameras
2MP/8MP/10MP/12MP/16MP

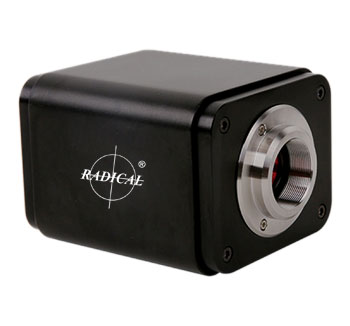

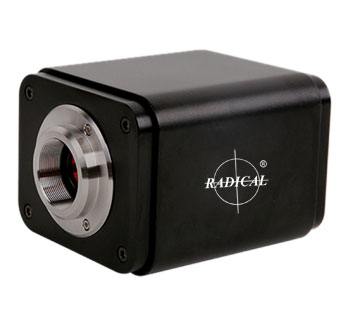

The ProCAM Multiport camera is a stand-alone system works without computer and delivers an impressive 4K/1080P format video output on HDMI screen. Still images or HDMI videos from the microscope can be saved onto its removable SD card. To control image and capture parameters via a powerful on-board software, just connect a wireless mouse to the USB port. GigE Ethernet port to connect router and switch to transfer video. The camera can also be simultaneously connected to 6 android devices. It can also be plugged into a Windows, OSX or Linux system through USB.
| Model | Sensor Size | Pixel Size | Resolution/Frame Rate (Live, Capture & Record) |
Sensitivity | Exposure Time | |
|---|---|---|---|---|---|---|
| ProCAM MP2 | 1/1.2" (11.25 x 6.33 ) CMOS colour/Mono |
5.86µm x 5.86µm | 1920x1200:30FPS 1920x1080:30FPS (HDMI) 1920x1080:30FPS (ETHERNET) 1920x1080:30FPS (USB 3.0) |
505mv with 1/30s 0.1mv with 1/30s |
0.244ms~2000ms | |
| ProCAM MP2A | 1/1.9" CMOS Colour |
3.75µm x 3.75µm | 1920x1080:30FPS(HDMI) 1920x1080:25FPS(WiFi) |
1120 mv with 1/30s 0.15 mv with 1/30s |
0.06ms~918ms | |
| ProCAM MP5 | 1/1.8" CMOS Colour |
2.4µm x 2.4µm | 3840x2160:60FPS(HDMI) Ultra HD 4K 2592x1944:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~1000ms | |
| ProCAM MP8 | 2/3" CMOS Colour/monochrome |
3.45µm x 3.45µm | 3840x2160:60FPS(HDMI) Ultra HD 4K 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~1000ms | |
| ProCAM MP8-B | 2/3" CMOS Colour |
3.75µm x 3.75µm | 3840x2160:60FPS(HDMI) Ultra HD 4K 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
505mv with 1/30s 0.1mv with 1/30s |
0.04ms~1000ms | |
| ProCAM MP8i | 1/1.7" CMOS Colour |
2.0µm x 2.0µm | 3840x2160:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
505 mv with 1/30s 0.13 mv with 1/30s |
0.1ms~1000ms | |
| ProCAM MP8-WUH | 1/1.2" CMOS Colour |
2.9µm x 2.9µm | 3840x2160:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi) 1980x1080:60FPS |
1028mv with 1/30s 0.13mv with 1/30s |
0.014ms~1000ms | |
| ProCAM MP8-WUHB | 1/2.9" CMOS Colour |
2.9µm x 2.9µm | 3840x2160:60FPS(HDMI) Ultra HD 4K 3264x1836:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi) 1920x1080:60FPS(SD Card) |
1300mv with 1/30s 0.13mv with 1/30s |
0.014ms~10s | |
| ProCAM MP8-WUM | 1/1.2" MONO Colour |
2.9µm x 2.9µm | 3840x2160:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:30FPS(WiFi) |
1028mv with 1/30s 0.13mv with 1/30s |
0.014ms~1000ms | |
| ProCAM MP10 | 1/1.06" CMOS Colour |
3.0µm x 3.0µm | 3664x2748:60FPS(HDMI) 1920x1080:30FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 100ms~120s | |
| ProCAM MP12 | 1/2.3" CMOS Colour |
1.55µm x 1.55µm | 3000x4000:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:60FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~2000ms | |
| ProCAM MP12i | 1/1.7" CMOS Colour |
1.85µm x 1.85µm | 4000X3000 60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:60FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~2000ms | |
| ProCAM MP16 | 1/1.06” CCD Colour |
2.4µm x 2.4µm | 3840x2160:60FPS(HDMI) 1920x1080:30FPS(HDMI) 3840x2160:30FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~2000ms | |
| ProCAM MP16i | 1/1.06” CMOS Colour |
2.4µm x 2.4µm | 5440X3060:30FPS 5440x3060:60FPS(HDMI) Ultra HD 4K 3840x2160:60FPS(HDMI) 3072x2048:60FPS(HDMI) 1920x1080:60FPS(HDMI) 3840x2160:60FPS(WiFi,GE) |
1.0V/lux-sec (550nm) | 0.04ms~2000ms | |
| Spectral Sensitivity | 400-1000 nm | |||||
| Gain Control | Control through software(1x to 24x adjustable) | |||||
| Quantum Efficiency | Upto 80% | |||||
| Cooling | Peltier/Passive cooling system | |||||
| ADC | 36 bit (3 x 12-bit RGB) 16-bit monochrome images |
|||||
| Scanning Mode | Progressive Scan | |||||
| Dynamic range | 72dB | |||||
| Shutter | Global/ Rolling Shutter | |||||
| USB Mouse/Remote | Connect USB mouse for easy operation with embedded software. single click image capture | |||||
| USB3.0 (Type C) | Provision to connect Keyboard/Mouse, Micro-D Connect USB flash drive to save pictures and videos. Connect 2.4G/5G WiFi modules to transfer video wirelessly in real time Connect computer with USB connection to transfer video in real time |
|||||
| HDMI (OSD menu) | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors, 60fps@4K or 60fps@1080P; |
|||||
| Ethernet | Gige Ethernet port to connect router and switch to transfer video. | |||||
| 60fps@4K resolution; H264 encoded video; Bandwidth adjustment in real time; Unicast/mulicast configuration; DHCP configuration or manual configuration; |
||||||
| WLAN Interface | Connecting 2.4G/5G WiFi module via USB3.0 port (AP/STA mode switch), simultaneous view on upto 6 android device LAN | |||||
| SD | Comply with SD 10 standard and SD card could be inserted for video and images saving. | |||||
| Video format：8M(3840x2160) H264 encoded MP4 file, Video saving frame rate:50~60fps (related to speed level or SD card and resolution of the video); 8M (3840x2160) JPEG Image 12M (4000x3000) JPEG Image 16M (5440*3060) JPEG Image Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode. 32 bit graphics card and 128 MB graphics memory |
||||||
| Data Transfer | 1ms - 100ms (Auto exposure) | |||||
| HDMI, Wi-Fi, SD | PIP (Picture in Picture), Embedded Files Browser, Video Playback, Measurement Function, capture, save etc. | |||||
| Interface | HDMI, G,GE, USB 3, USB 2.0 | |||||
| Android/Window APP (Wi-Fi) | Mirror/Flip, Freeze, Cross Line, Gray Value, PIP (Picture in Picture), Embedded Files Browser, Video recorder etc. | |||||
| DC12V | Power Adapter Connection(12V). | |||||
| ON/OFF | Power Switch. | |||||
| LED | Status Indicator LED. | |||||
| IR Filter | RGB bayer colour mask | |||||
| White Balance | Manual & Auto | |||||
| Exposure & Gain | Manual & Auto | |||||
| Sharpening | Manual & Auto | |||||
| 3D Denoise | Manual & Auto | |||||
| Saturation Adjustment | Manual & Auto | |||||
| Contrast/Brightness Adjustment | Manual & Auto | |||||
| Gamma Adjustment | Manual & Auto | |||||
| 50HZ/60HZ Anti-flicker Function | Available | |||||
| Digital zoom | Up to 400X | |||||
| Compare | Comparison between real time video and images in SD card or USB flash drive | |||||
| Full well capacity | 12000e | |||||
| Software Feature | Mirror/Flip, Freeze, Cross Line, Gray Value, PIP (Picture in Picture), Monochrome & Colour Mode, Embedded Files Browser, Video Playback, Measurement Function. | |||||
| Temperature | 0°C~50°C, Operation temperature -10° to +60° RH 30% ~ 70% | |||||
| Mount | Camera C- Mount and On Screen Display | |||||
| Screen* | Screen Feature Retina Screen, Sensor Size 12”, Aspect Ratio 16:09, Display Resolution 1920×1080 Display Type IPS-Pro, Brightness 320cd/m2, Static Contrast Ratio 1000:01:00 HDMI Port 1 Type, External Adaptor, Power Supply Type 12V, 2A | |||||
| Supporting Device | Window 7/10 x64 Prof./Mobile Device OS version iOS 11, Android 5.1 (or latest) | |||||
| Accessories | Camera supplied with SD card, HDMI cable 3M, USB, Mouse & Power Adapter | |||||
| Settings | White Balance,Gain, 3D Noise Reduction, Noise Reduction, 38.1dB Gamma, Exposure Time, WDR,etc | |||||
| Dimensions/Weight | 66x66x80 mm/420g | |||||
