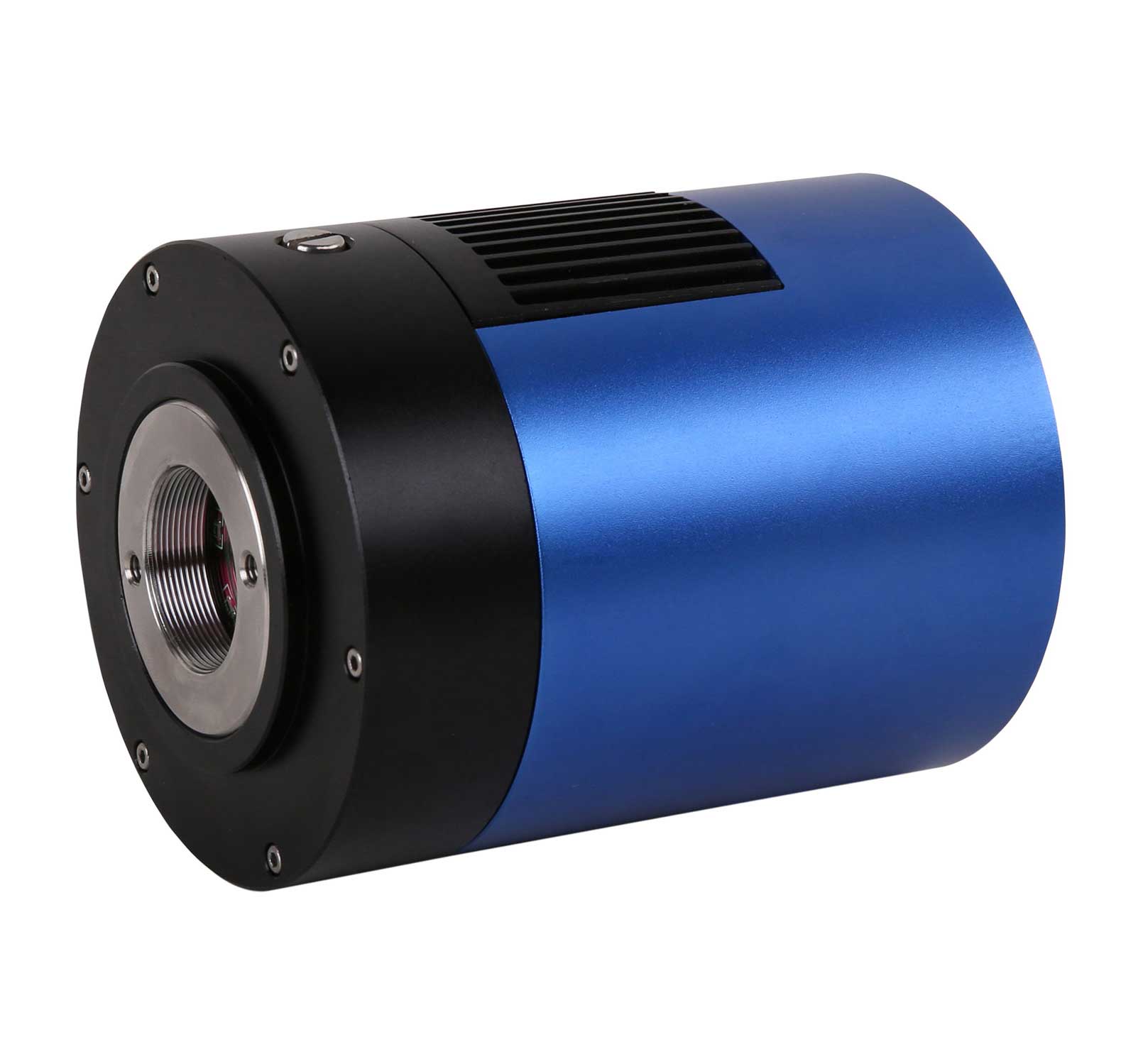

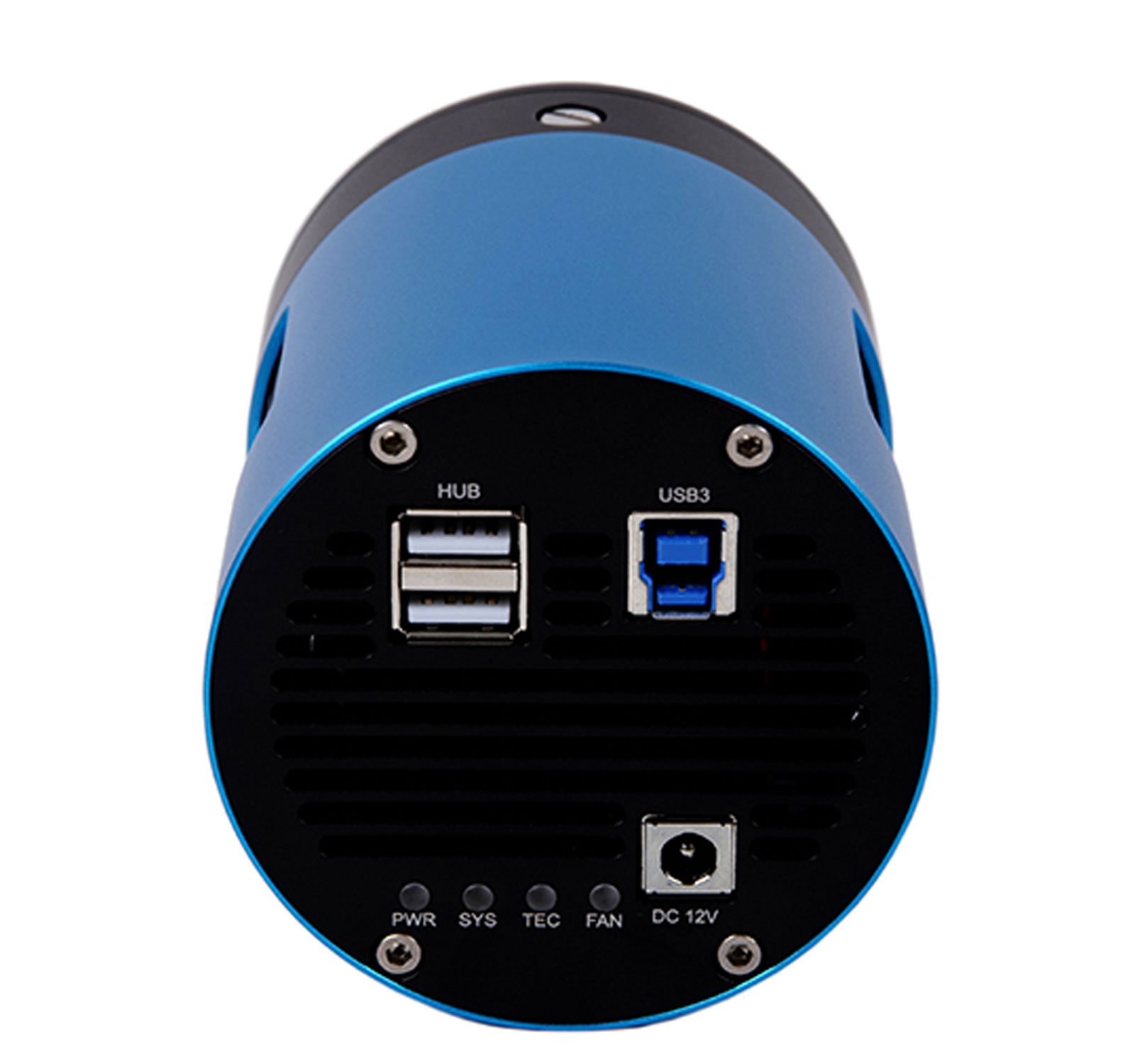

TEC CMOS CC Series Cameras



The ProCAM TEC adopt SONY cooled back illuminated CMOS Sensor as the image-picking device and USB3.0 is used as the transfer interface. Hardware resolutions range from 20M and come with the integrated CNC aluminium alloy compact housing.
With the two-stage peltier cooling sensor chip to -42° below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
ProCAM TEC comes with advanced video & image processing application software, providing Windows/Linux/ OSX multiple platforms SDK, Native C/C++, C#/VB.NET, DirectShow, Twain Control API.
The ProCAM TEC can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as in dark field, phase contrast etc.

  • Standard C-Mount camera with SONY Exmor CMOS sensors from 20M.
  • Two-stage TE-cooling with controllable electric fan.
  • Sensor chip cooling up to 42°C below ambient temperature.
  • Working temperature can be regulated to specified temperature in 5 minutes.
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem.
  • IR-CUT/AR coated windows.
  • Up to 1 hour long time exposure.
  • USB3.0 5Gbit/second interface ensuring high speed data transmission.
  • Ultra-FineTM colour engine with perfect colour reproduction capability.
  • With advanced video & image processing application software.
  • Support both video and trigger modes.
  • Providing Windows/Linux/Mac OS multiple platforms SDK.
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API.

  • Model ProCAM CC-20MP
    Pixels 20MP (Colour/Mono) CMOS
    Sensor & Size 1" (13.06x8.76mm)
    Pixel Size 3.54µmX3.54µm
    Resolution/Frame Rate
    (Live, Capture & Record)
    5440x3648:9FPS
    4096x2160:30FPS
    1920x1080:60FPS
    Any ROI
    G Sensitivity
    Dark Signal
    462mv with 1/30s
    0.21mv with 1/30s
    Exposure 0.1ms~3600s
    Image Data Format 8/12 bit RAW Format
    Data Interface USB 3.0
    Gain Max. 30
    ADC 16 bit
    Dynamic Range 2000:1
    73.3 dB
    Full Well Capacity 15.000 electrons
    Shutter Global/Rolling shutter
    Dark Noise  <0.05e-/Px/Sec
    Read Out Noise ~6 electrons (10 MHz)
    Binning 1x1, 2x2, 3x3, 4x4
    Quantum Efficiency Upto 80%
    Scanning mode Interlaced Scanning
    Spectral Range 380-720nm (with IR-filter), for Monochromatic Camera, AR Is Used coated, C5000 IR cut filter
    White Balance ROI White Balance/ Manual Temp-Tint Adjustment
    HDMi (optional) Port to connect camera directly to HDMi input port of Projector, Screen etc
    GigE (optional)  Port to connect & capture camera through network
    Absolute sensitivity threshold 7.0e-
    Color Rendering Technique Ultra Fine Color Engine, RGB (Bayer)
    Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
    Recording System Still Picture and Movie
    Cooling System* Two-stage Thermo electric-cooling System -45 °C below Camera Body Temperature
    Operating Temp. -10°C~ 50°C
    Storage Temp. -20°C~ 60°C
    Operating Humi. 30~80%RH
    Image Size* 2448x1920, 1224x960, 612x480
    Lens Mount Standard/compatible C/CS Mount
    Storage Humidity 10~60%RH
    Power Supply DC 5V over PC USB Port, External Power Adapter for Cooling System, DC12V,3A
    Operating System Support Microsoft Windows 7/8/10/11 (32 & 64 bit) OS X (Mac OS X), Linux, RGB Bayer color filter mask
    Minimum PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher, Memory: 2GB or More, USB port: USB2.0 High-speed Port, Display: 17" or Larger, CD-ROM

    As we are continuously improving & developing our products, this websites may not be updated with advancements done. However, we try our best to update the website for latest information's
    For complete updated specifications, please do ask for latest brochures
